Danfoss 02-392471

DG5S4-02-521C-X-T-M-FPBW L-B5-20-EN532, DG5S402521CXTMFPBWLB520EN532

MPN
02-392471
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

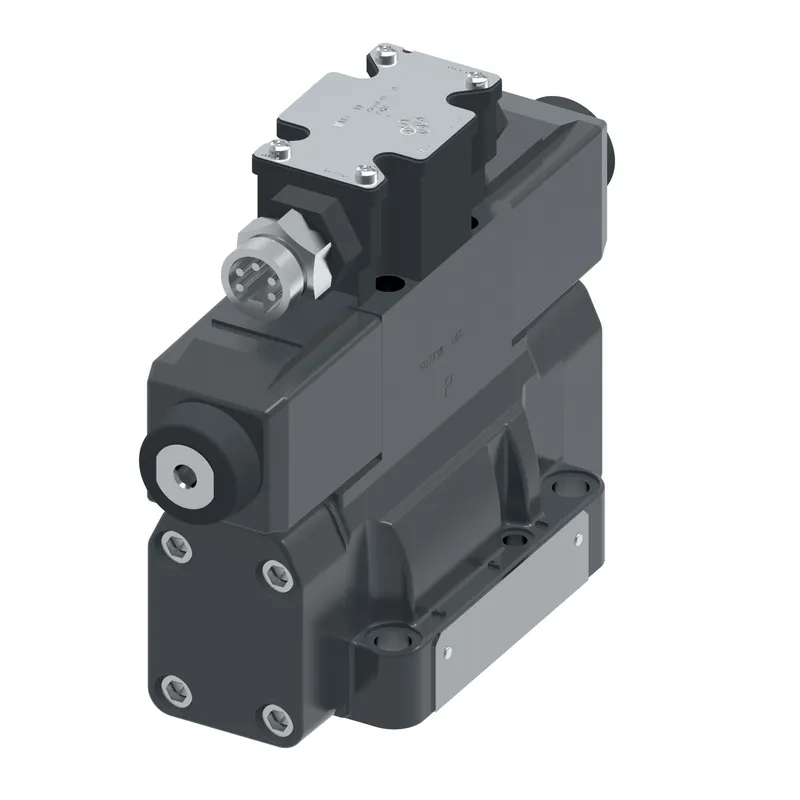

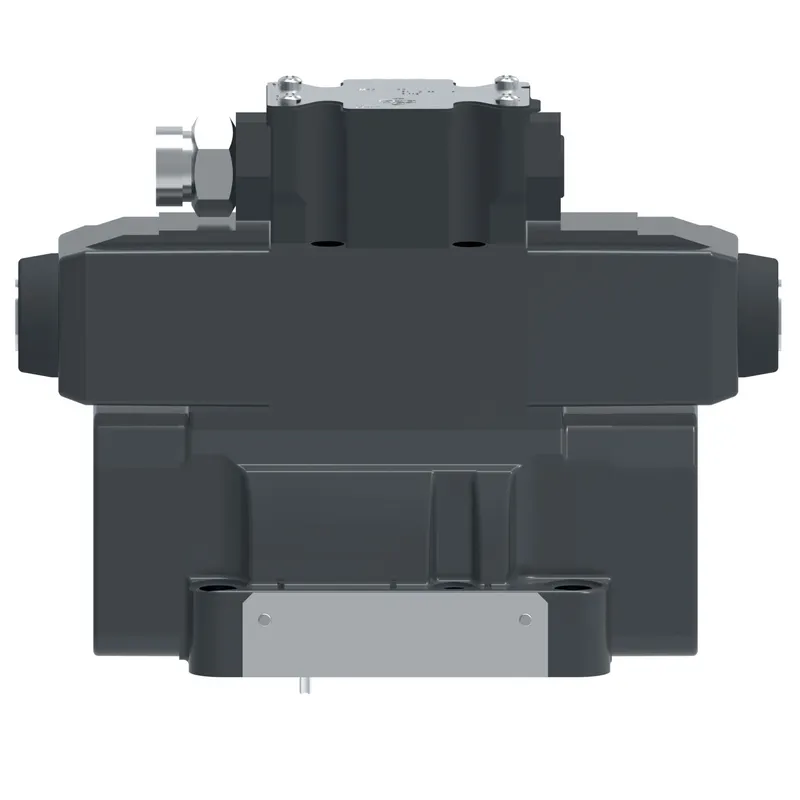

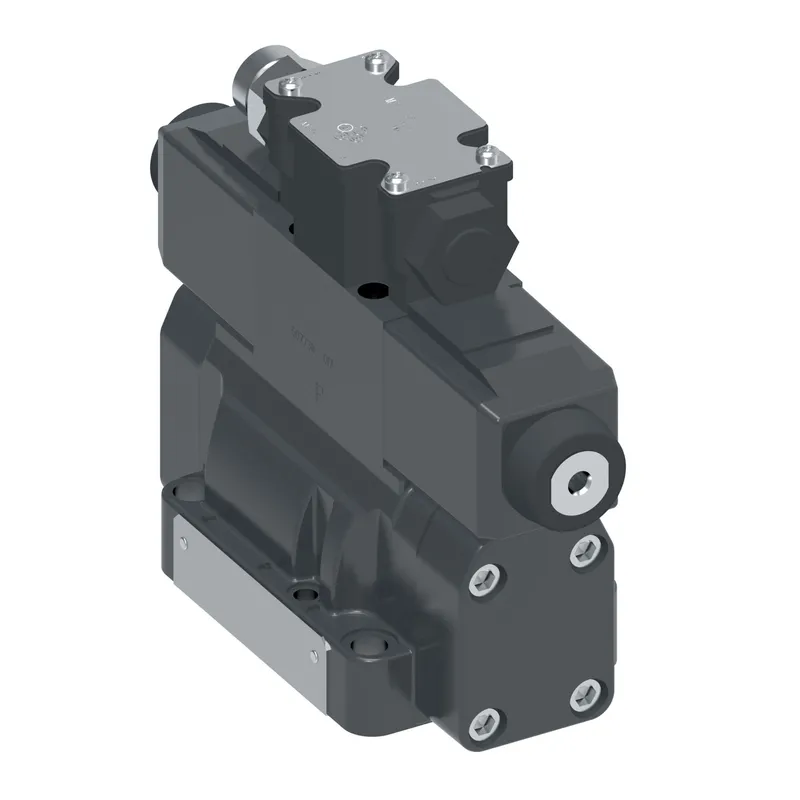

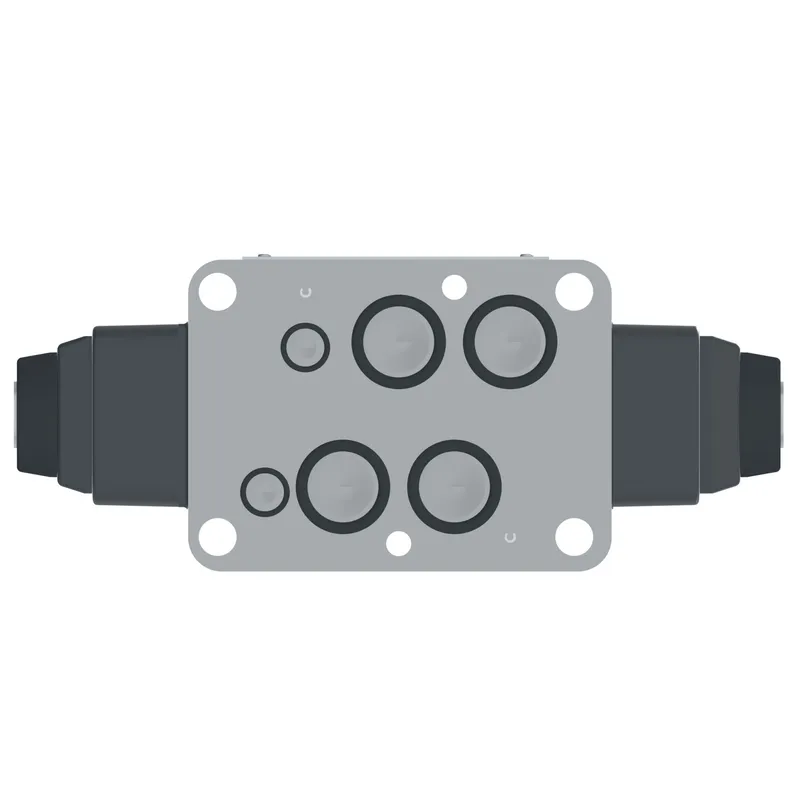

What is the Danfoss 02-392471?

Danfoss DG5S4-02-521C-X-T-M-FPBW L-B5-20-EN532, DG5S402521CXTMFPBWLB520EN532, manufacturer part number 02-392471. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series20 Series
Ext pilot pressureInternal
Flow rate upto GPM115.0
Flow rate upto LPM30.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightYes
Int pilot drainInternal
InterfaceISO4401-05
Manual overridePlain
Model Code 1DG5S402521CXTMFPBWLB520EN532
Pressure rating BAR210
Pressure rating PSI3000
Product height in6.320
Product height mm160.528
Product length in7.870
Product length mm199.898
Product width in2.630
Product width mm66.802
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Spool TypeSpool 521
Spring ArrangementSpring centred
StageTwo stage
Tank port rating BAR100.0
Tank port rating PSI1450
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve

02-392471: frequently asked questions

When can 02-392471 be shipped?

02-392471 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-392471 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-392471 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-392471, subject to availability and destination.
