Danfoss 02-390702

Industrial valve

MPN
02-390702
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-390702?

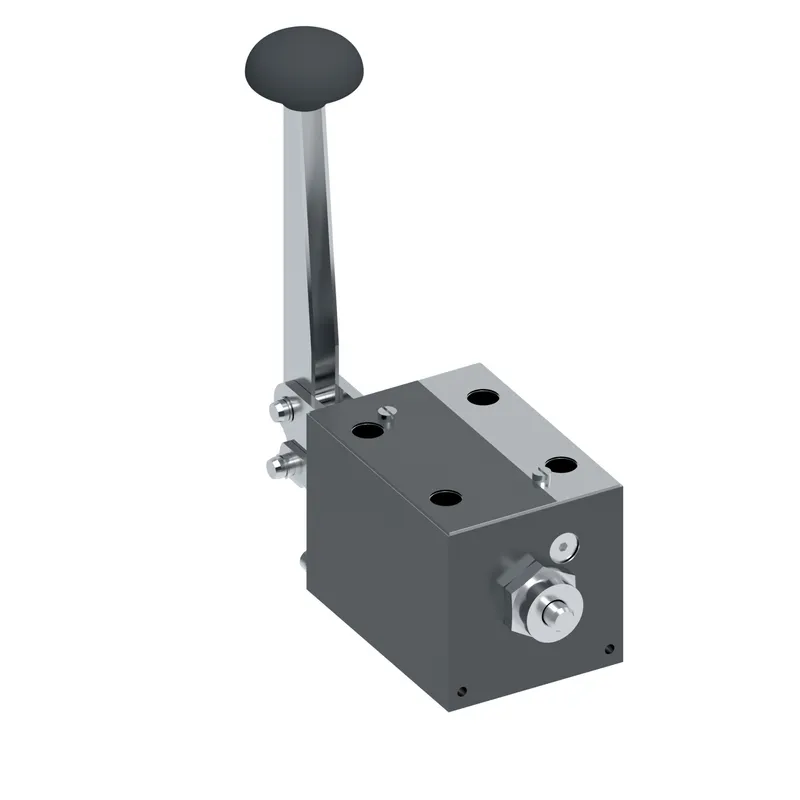

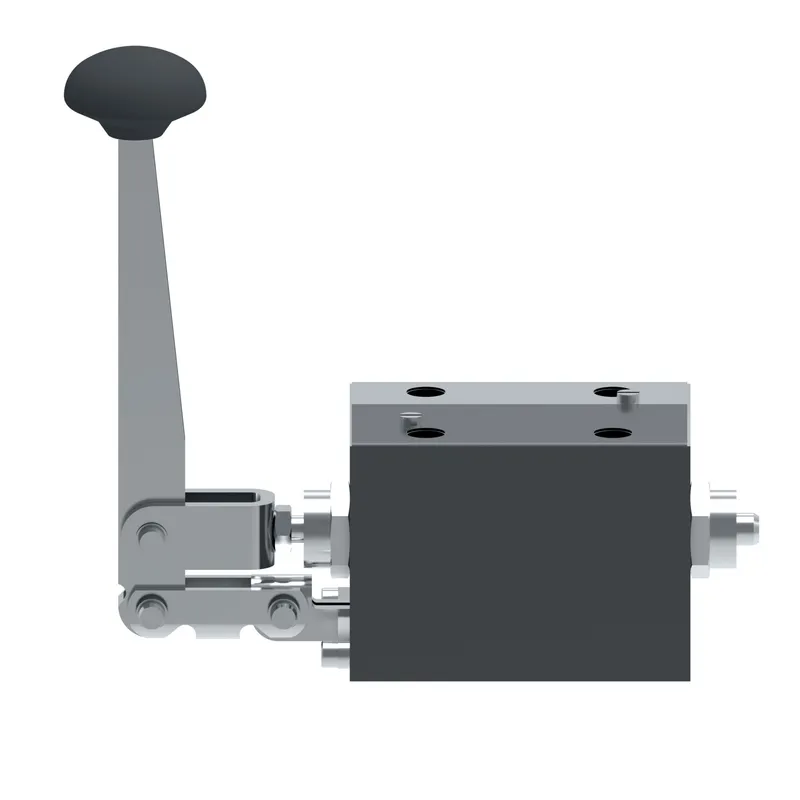

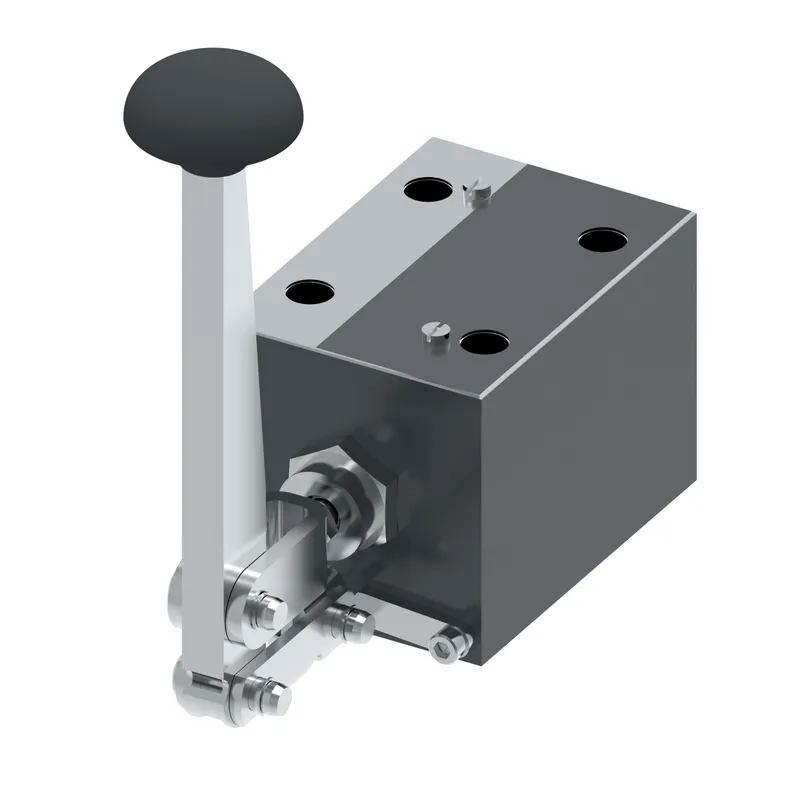

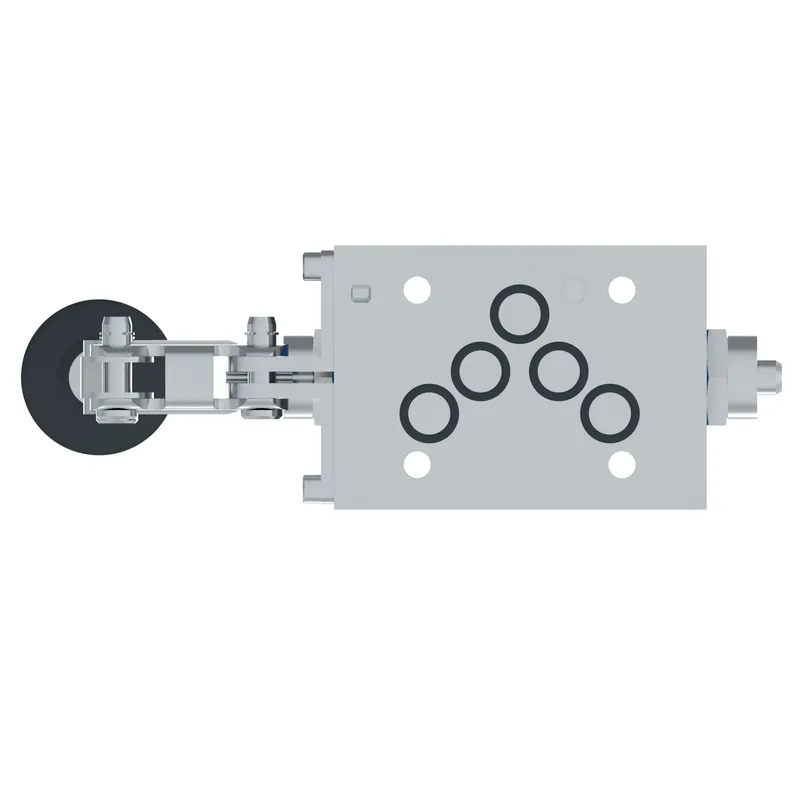

Danfoss DG17V4-012A-H-10, DG17V4012AH10, manufacturer part number 02-390702. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeManual lever operated
BrandVickers by Danfoss
Coil RatingNone
Design Series10 Series
Electrical ConnectionNone
Flow rate upto GPM30.0
Flow rate upto LPM114.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05
Manual overrideNone
Model Code 1DG17V4012AH10
PerformanceStandard performance
Pressure rating BAR315
Pressure rating PSI4500
Product height in6.420
Product length in8.820
Product length mm224.028
Product width in2.750
Product width mm69.85
Seal typeBuna-N
Solenoid Energising IDNone
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementSpring offset
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70
