Danfoss 02-390606

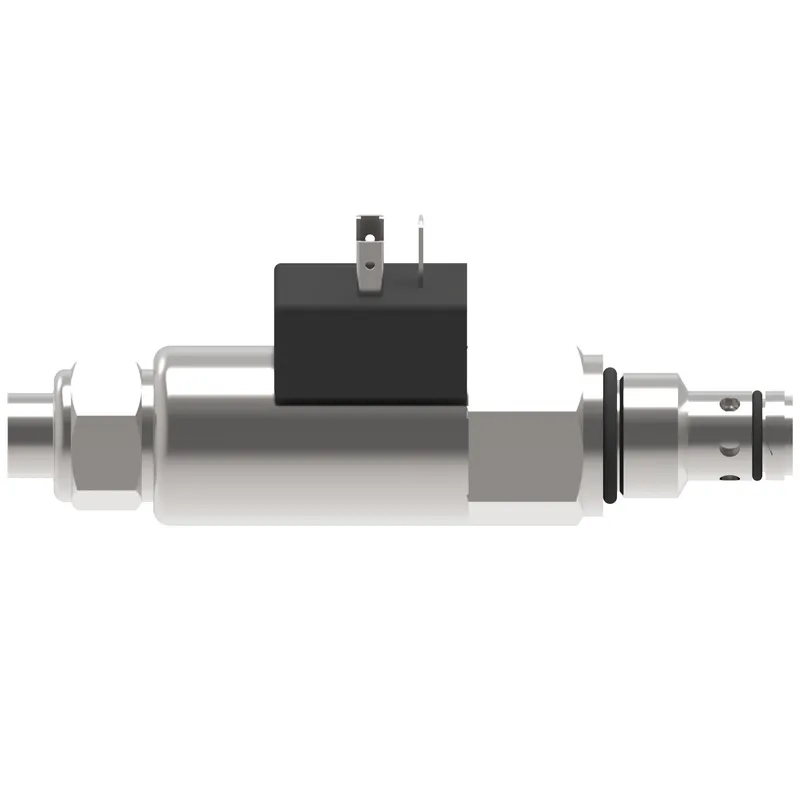

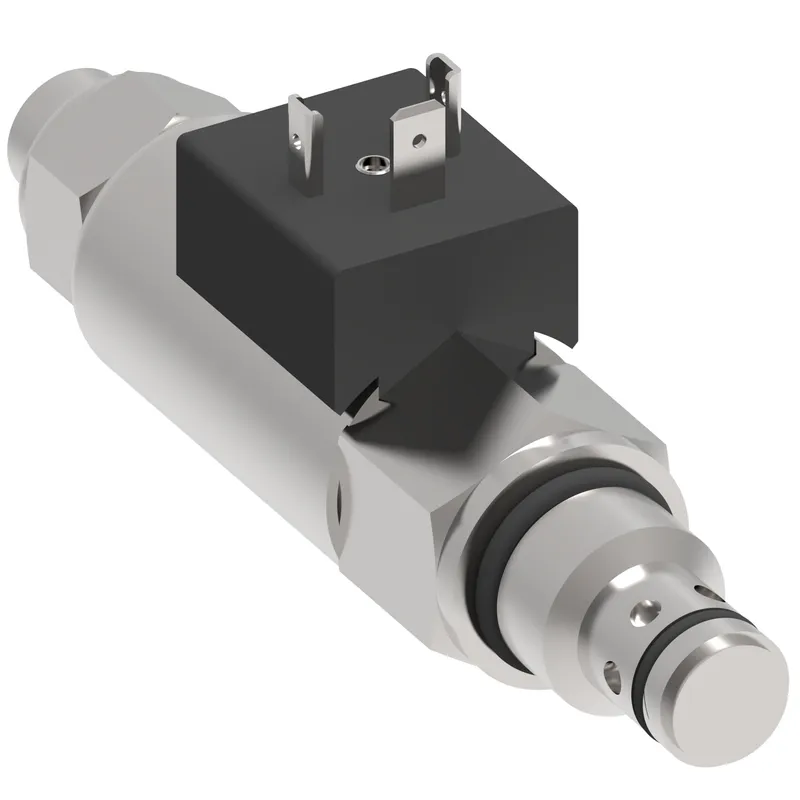

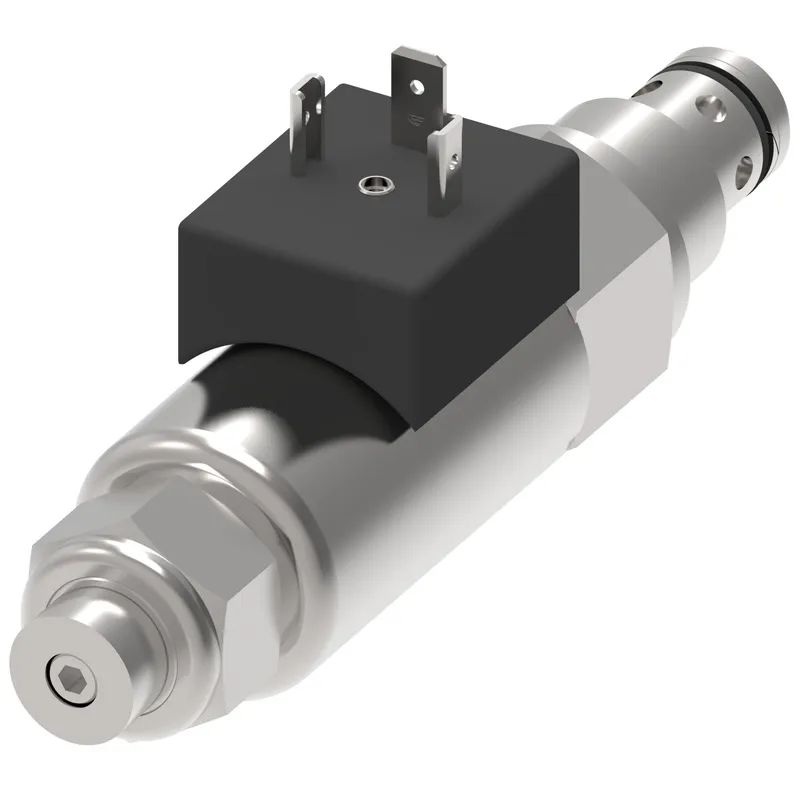

EPV10-0-12D-W-10-S18, EPV10-0-12D-W-10-S18

MPN
02-390606
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-390606?

Danfoss EPV10-0-12D-W-10-S18, EPV10-0-12D-W-10-S18, manufacturer part number 02-390606. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

BrandVickers by Danfoss
CavityC-10-2
Coil seriesEPV Series
Coil terminationNone
DiodeNo
Factory set pressure BAR210.000
Factory set pressure PSI3053.00
Flow rate GPM8.00
Flow rate LPM30.000
Fluid compatibilityMIL-H-5606, SAE10, SAE20, etc
FunctionProp Flow Control
HousingNo
Installation typeScrew-in Cartridge
Leakage10 cc/min
Minimum working pressure BAR350.00
Minimum working pressure PSI5000.00
Model Code 1EPV10-0-12D-W-10-S18
Number of housing ports2
Number of valve ports2
Operating temperature-30 C to 90 C (-22 to 194 F)
OperationElecro Proportionally Ctrl
Override typeNone
Port sizeNone
Port typeCartridge Only
Pressure rating BAR350.00
Pressure rating PSI5000.00
Product height in1.710
Product height mm43.434
Product length in5.170
Product length mm131.318
Product width in1.710
Product width mm43.434 mm
Recommended filtration level15/13/11
Seal typeBuna-N
Special featuresEPV10-S18
StylePoppet
Torque into aluminium cavity47-54 Nm
Torque into steel cavity68-75 Nm
Voltage12 V
Voltage typeDC
Working pressure max BAR350.00
Working pressure max PSI5000.00

02-390606: frequently asked questions

When can 02-390606 be shipped?

02-390606 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-390606 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-390606 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-390606, subject to availability and destination.
