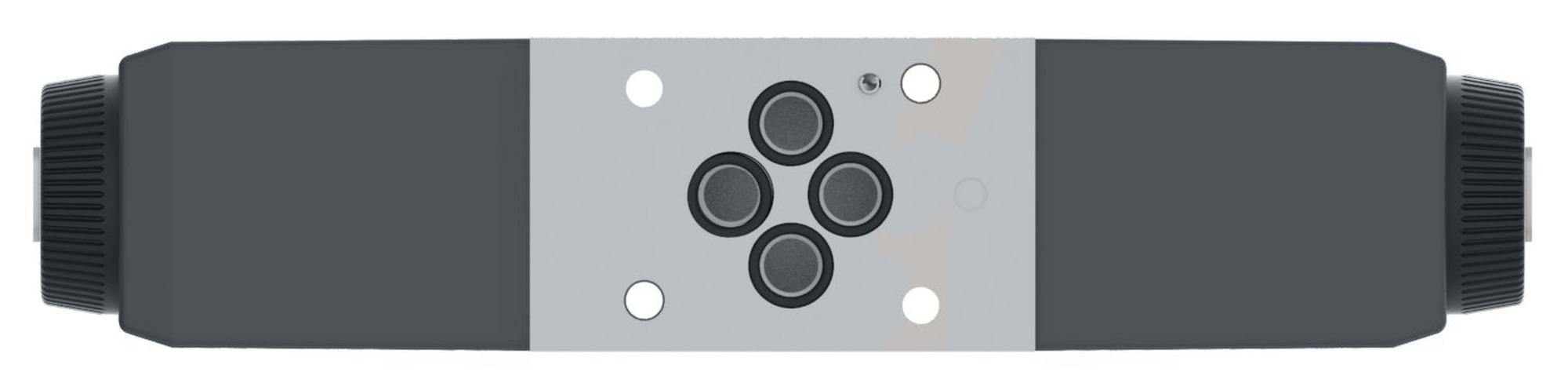

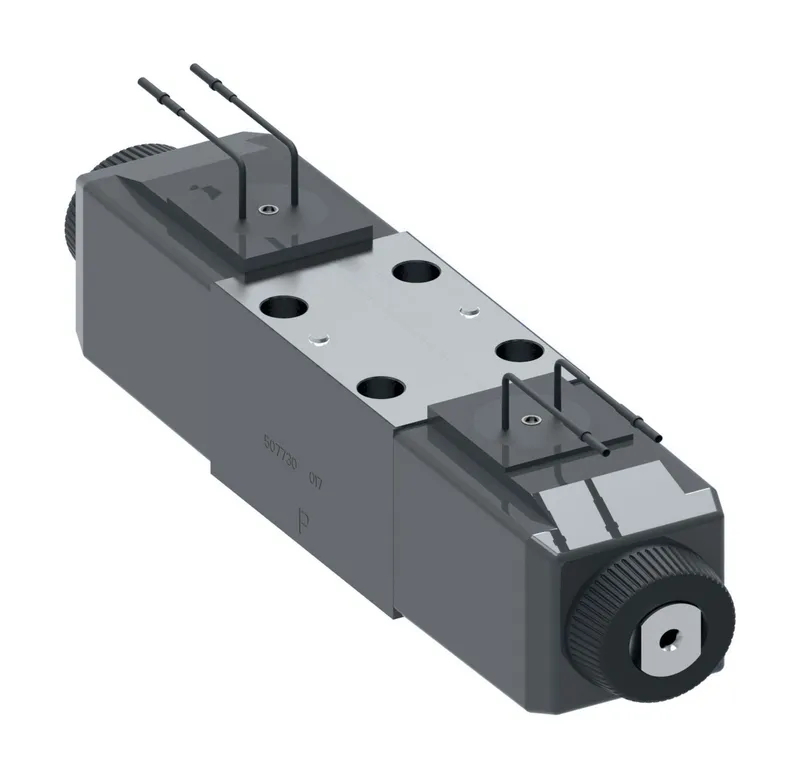

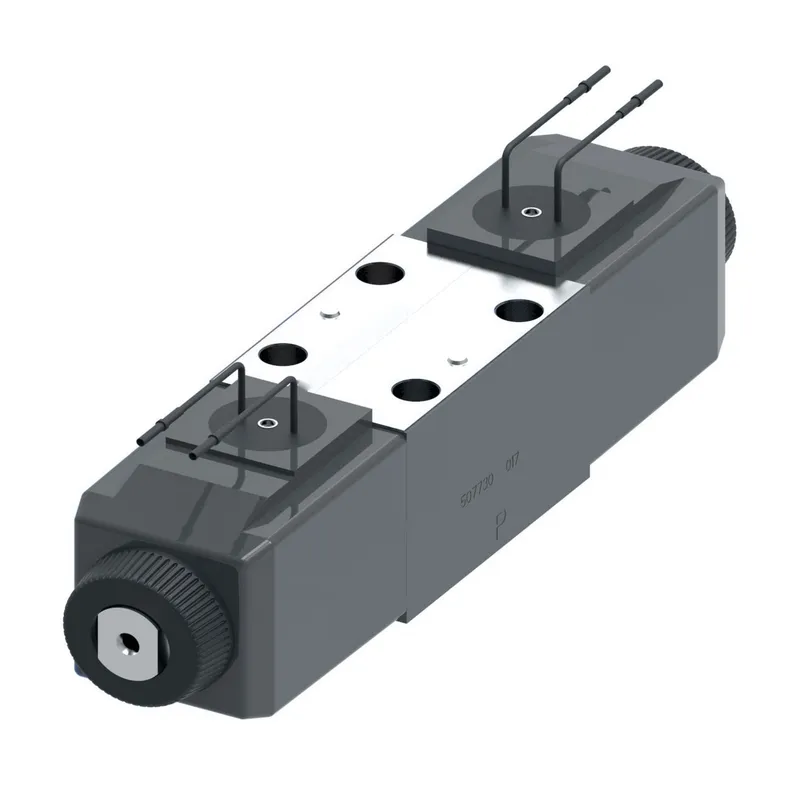

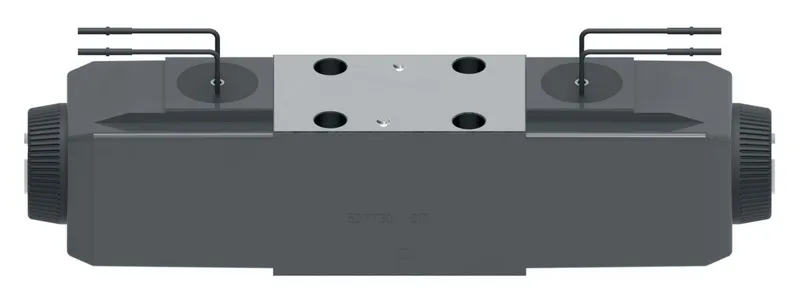

Danfoss 02-364927

KDG4V-3S-33C08A-M-KU-G7- 60-EN596, KDG4V3S33C08AMKUG760EN596

MPN
02-364927
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-364927?

Danfoss KDG4V-3S-33C08A-M-KU-G7- 60-EN596, KDG4V3S33C08AMKUG760EN596, manufacturer part number 02-364927. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM8.00
A Port flow USGPM2.10
Actuation TypeSolenoid controlled
B Port flow LPM8.00
B Port flow USGPM2.10
BrandVickers by Danfoss
Build orientationStandard as per ANSI B93 9
Build typeSpring centered
Coil voltage12 Volt DC
Command inputNone
Communication protocolNone
Design Series60 Series
Electrical ConnectionTop exit flying lead
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-03/NFPA D03/CETOP 3/NG06
Manual overridePlain
Maximum pressure BAR350
Maximum pressure PSI5000
MeteringMeter in
Model Code 1KDG4V3S33C08AMKUG760EN596
On board electronicsNo
PerformanceStandard
Product height in3.580
Product height mm90.932
Product length in8.640
Product length mm219.456
Product width in1.810
Product width mm45.974
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresMobile style solenoids without diode, Deutsch male pin connectors, coil rotated 110/120 degrees, 24" lead wires, and without portorifices
Spool TypeP blocked, A & B to tank
StageSingle stage
Symmetric flowYes
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-364927: frequently asked questions

When can 02-364927 be shipped?

02-364927 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-364927 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-364927 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-364927, subject to availability and destination.
