What is the Danfoss 02-364734?

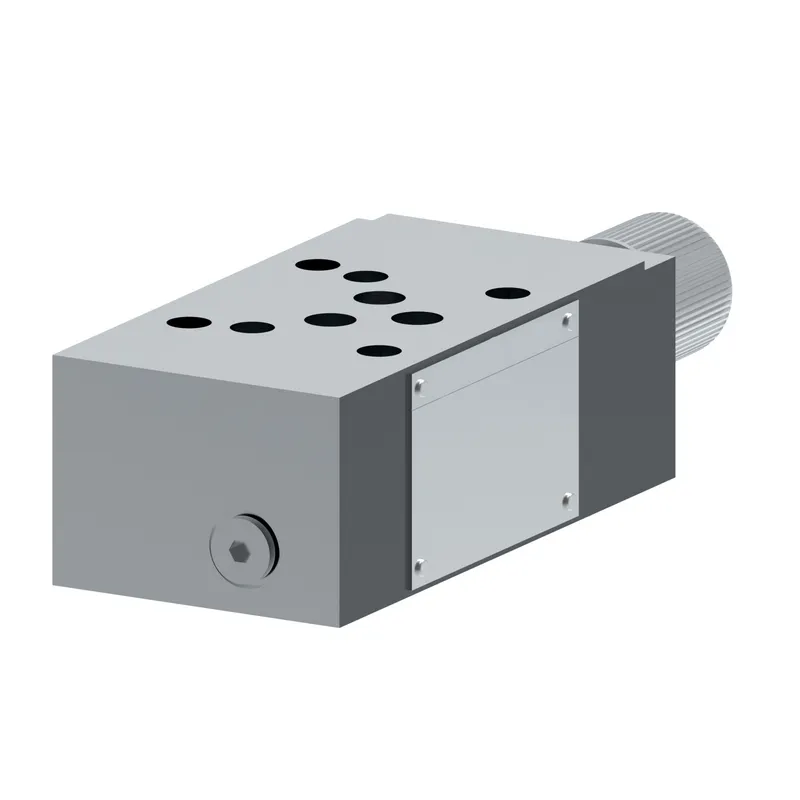

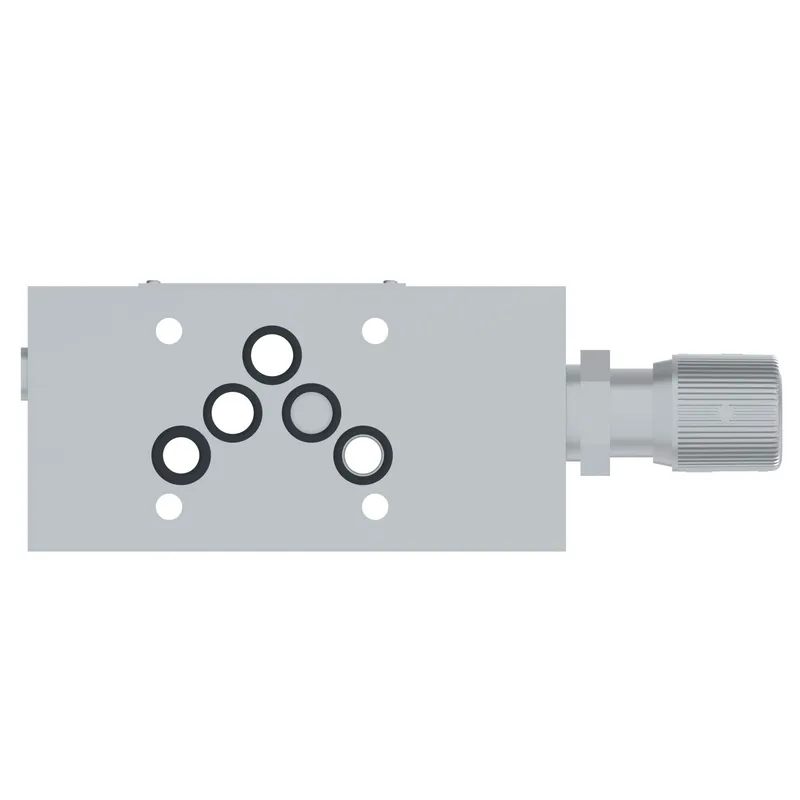

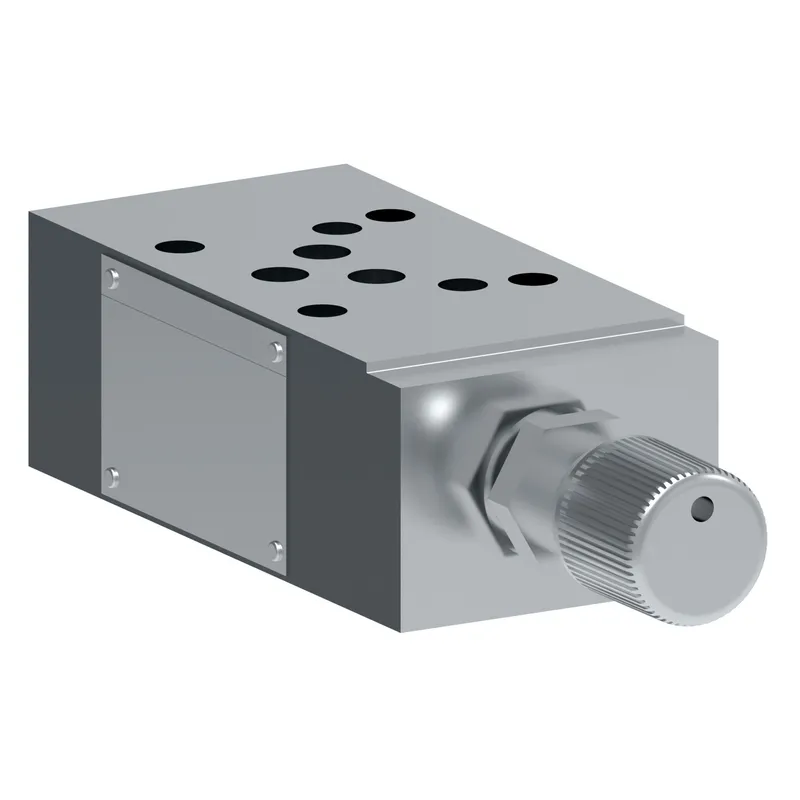

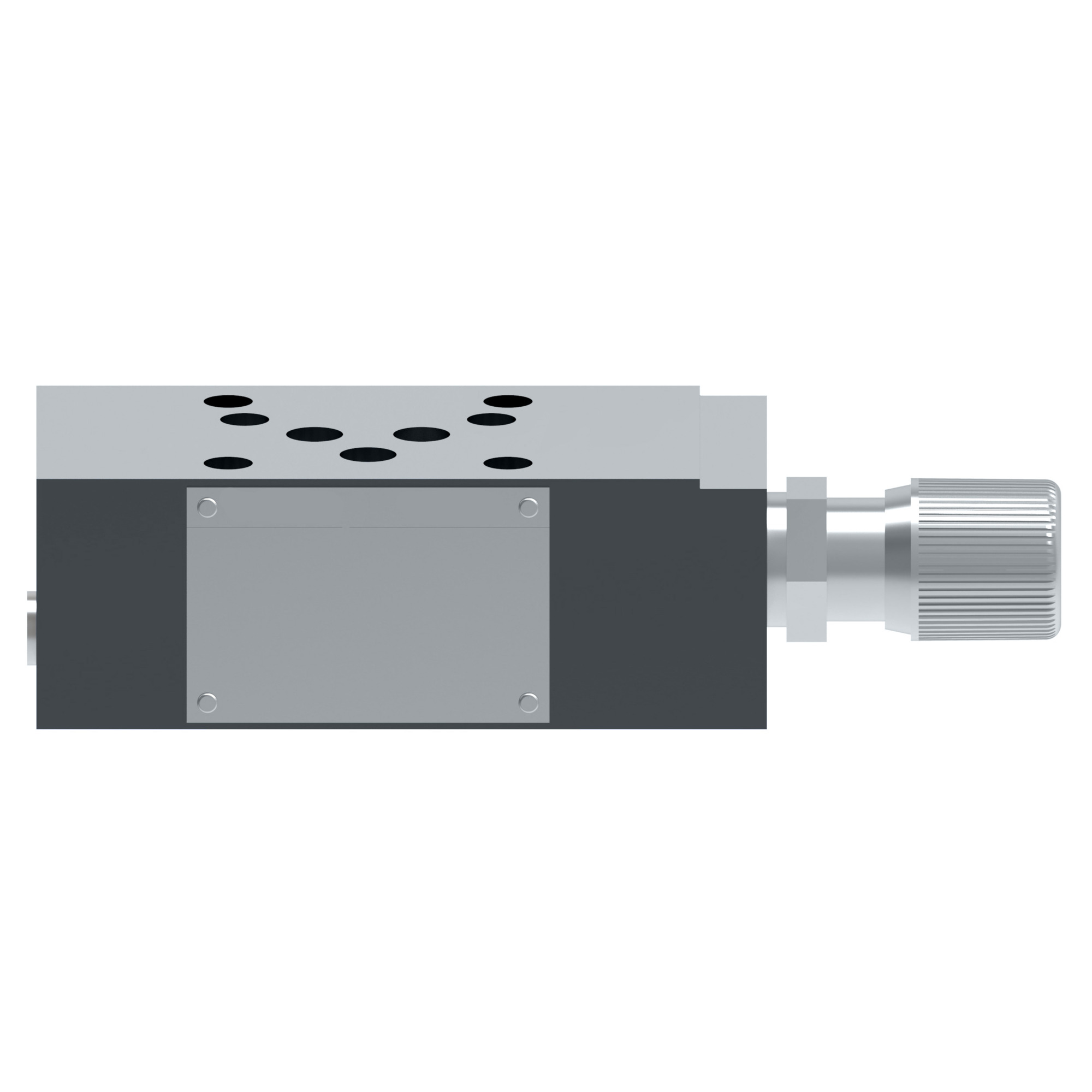

Danfoss DGMC-5-BT-FH-B-30, DGMC5BTFHB30, manufacturer part number 02-364734. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePressure operated
Adjustment typeKnob adjuster
BrandVickers by Danfoss
Design Series30 Series
External drainNo
Flow rate upto LPM120
Flow rate upto USGPM32.0
Fluid Cleanliness17/15/12 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread TypeG1/8" (1/8" BSPF)
InterfaceISO4401-05
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model CodeDGMC5BTFHB30
PerformanceStandard
Port drained intoT port
Port operated uponB cylinder port
Pressure adjustment range4-200 bar (60-2900 psi)
Product height in1.970
Product height mm50.038
Product length in7.790
Product length mm197.866
Product width in2.820
Product width mm71.628
Remote control portNo
Seal typeViton
Special featuresNone
Valve Mount TypeSubplate/manifold mounted
Valve typeSingle relief valve
Working temp max C80
Working temp max F176
Working temp min C0
Working temp min F32

02-364734: frequently asked questions

When can 02-364734 be shipped?

02-364734 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-364734 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-364734 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-364734, subject to availability and destination.
