Danfoss 02-364486

F6-DG4V4-012A-M-U-B-5-10 -S324, F6DG4V4012AMUB510S324

MPN
02-364486
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-364486?

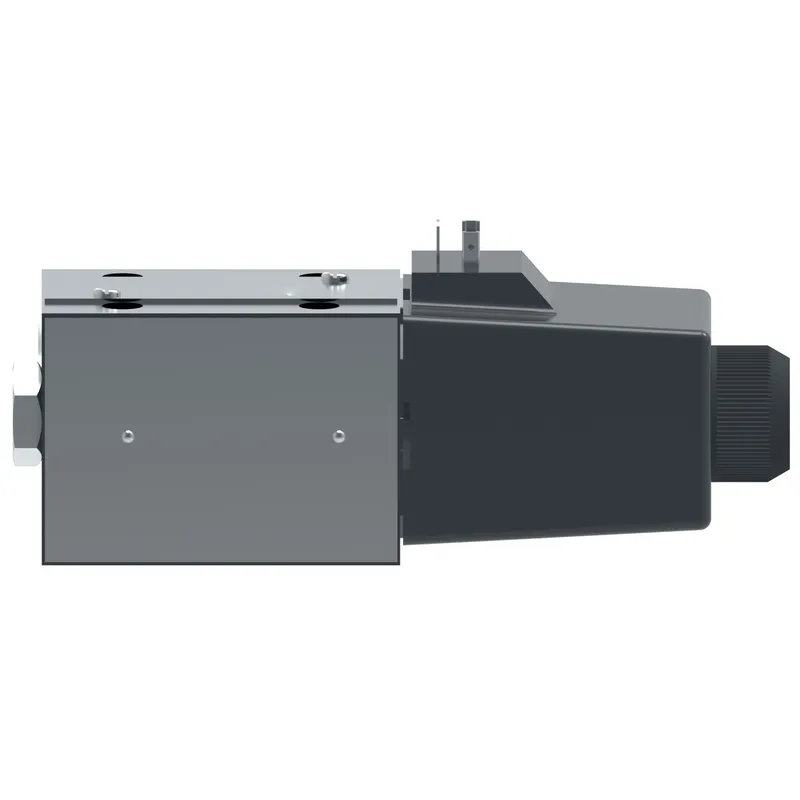

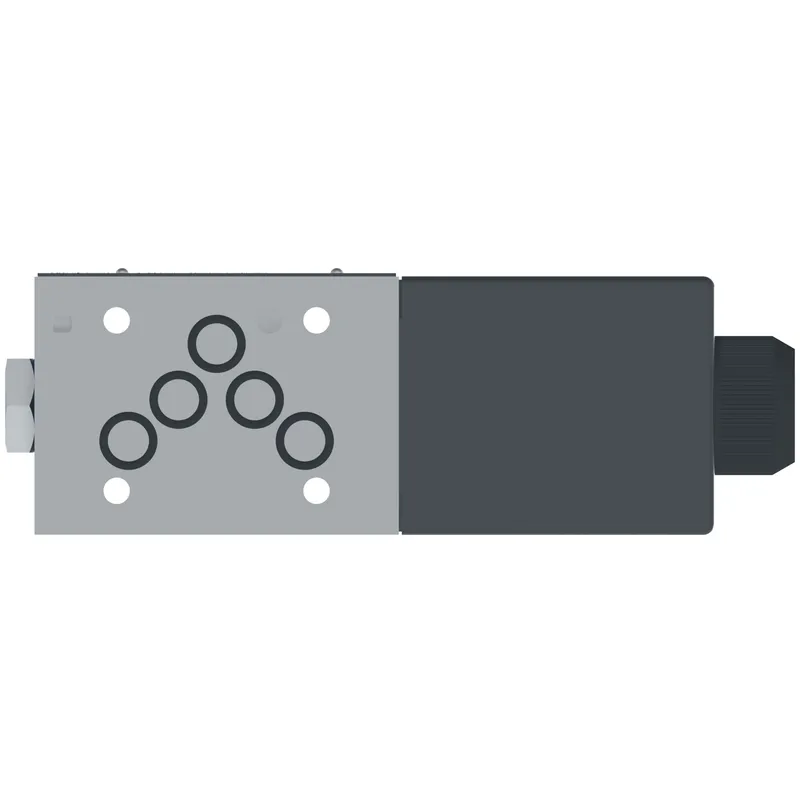

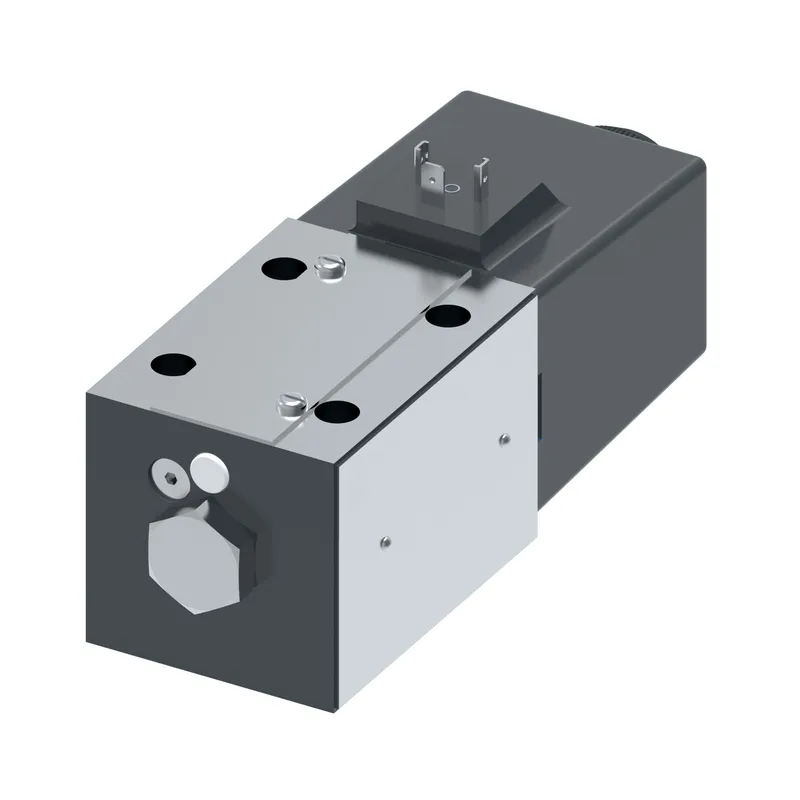

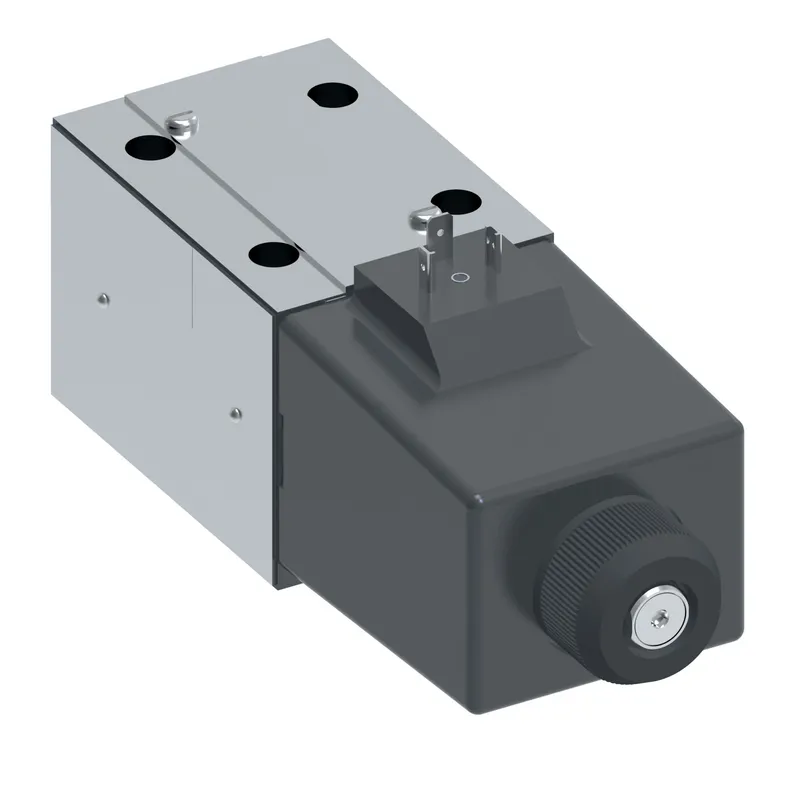

Danfoss F6-DG4V4-012A-M-U-B-5-10 -S324, F6DG4V4012AMUB510S324, manufacturer part number 02-364486. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series10 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Energ Time18-25 ms
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overridePlain
Model Code 1F6DG4V4012AMUB510S324
PerformanceStandard performance
Power Consumption37 watt
Pressure rating BAR315
Pressure rating PSI4500
Product height in4.310
Product length in6.880
Product length mm174.752
Product width in2.840
Product width mm72.136
Seal typeWater glycol
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresCSA approved
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementSpring offset end to end
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR120.0
Tank port rating PSI1750
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70

02-364486: frequently asked questions

When can 02-364486 be shipped?

02-364486 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-364486 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-364486 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-364486, subject to availability and destination.
