Danfoss 02-362441

Industrial valve

MPN
02-362441
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-362441?

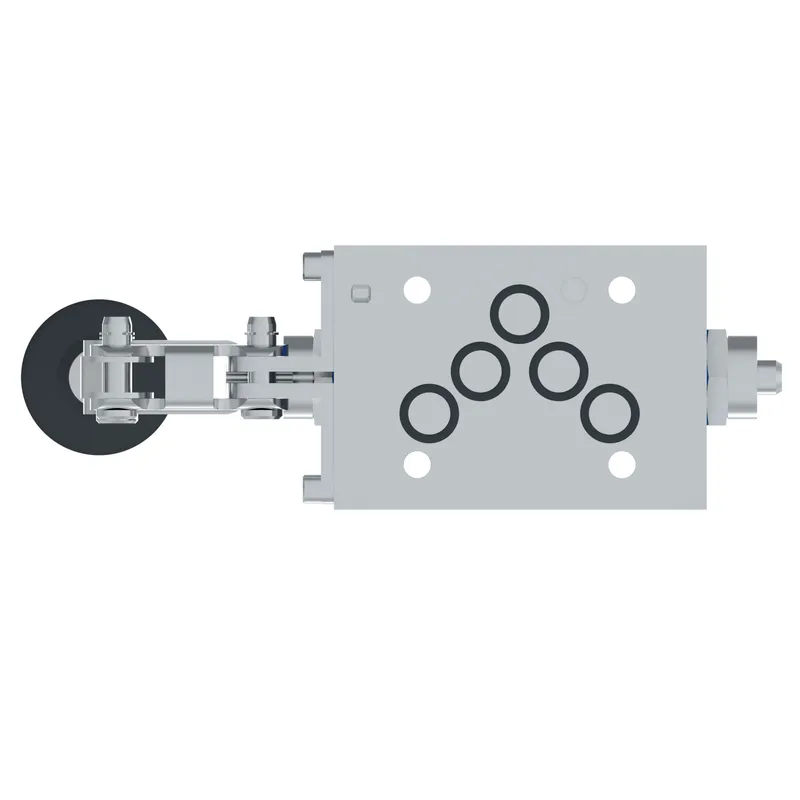

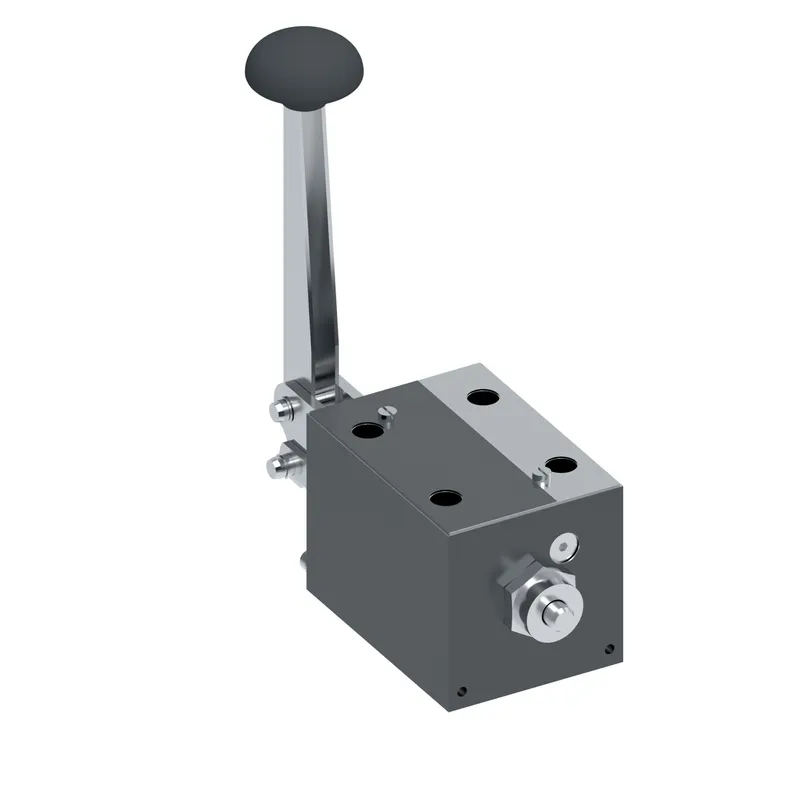

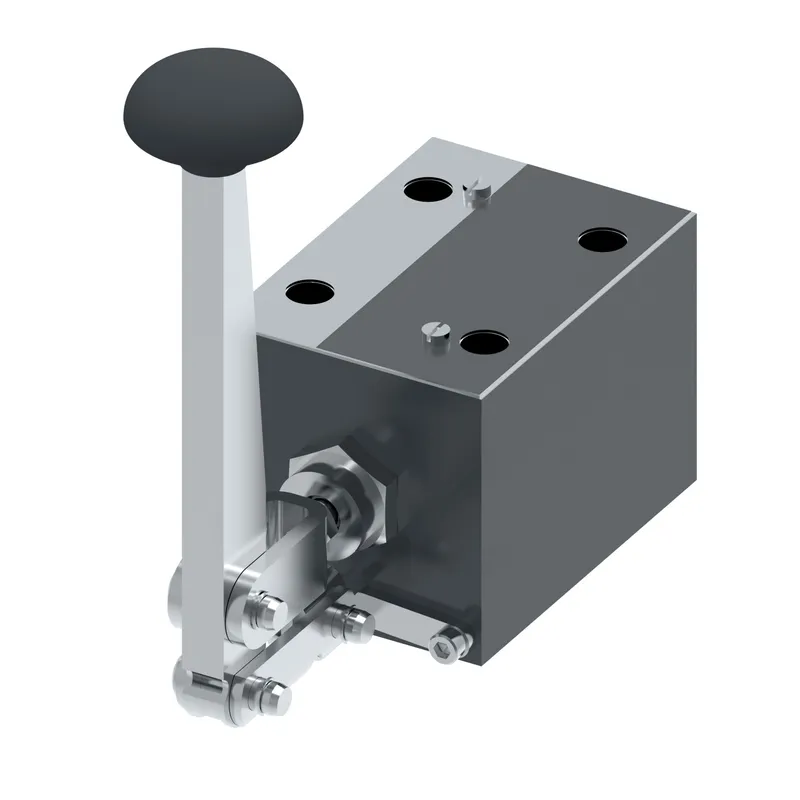

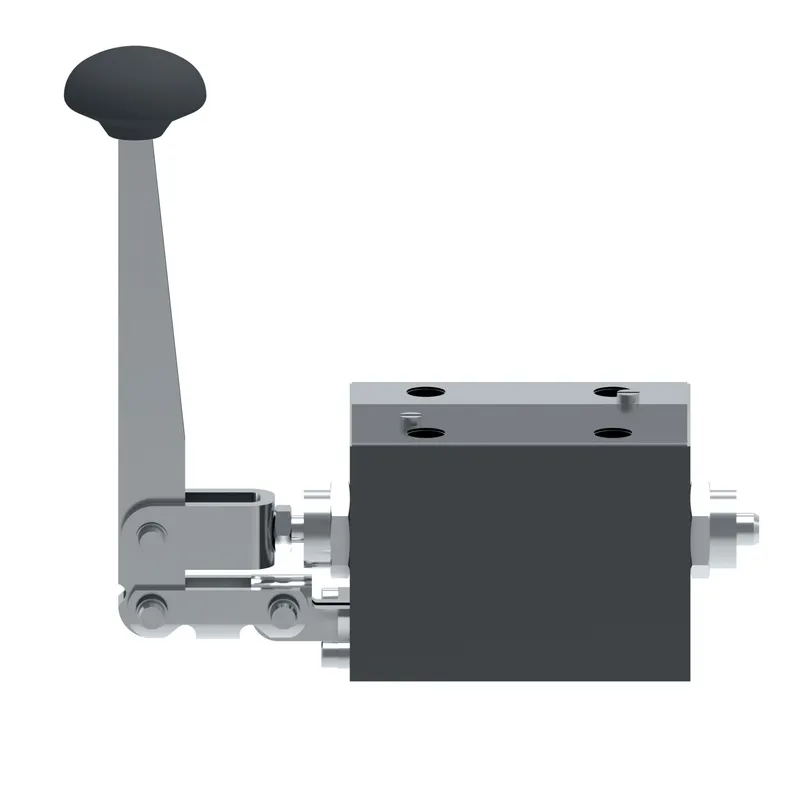

Danfoss F3-DG17V4-016C-10, F3DG17V4016C10, manufacturer part number 02-362441. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeManual lever operated
BrandVickers by Danfoss
Coil RatingNone
Design Series10 Series
Electrical ConnectionNone
Flow rate upto GPM30.0
Flow rate upto LPM114.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overrideNone
Model Code 1F3DG17V4016C10
Pressure rating BAR310
Pressure rating PSI4500
Product height in7.060
Product length in6.900
Product length mm175.260
Product width in2.750
Product width mm69.85
Seal typeBuna-N
Solenoid Energising IDNone
Spool TypeSpool 6
Spring ArrangementSpring centred
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70

02-362441: frequently asked questions

When can 02-362441 be shipped?

02-362441 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-362441 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-362441 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-362441, subject to availability and destination.
