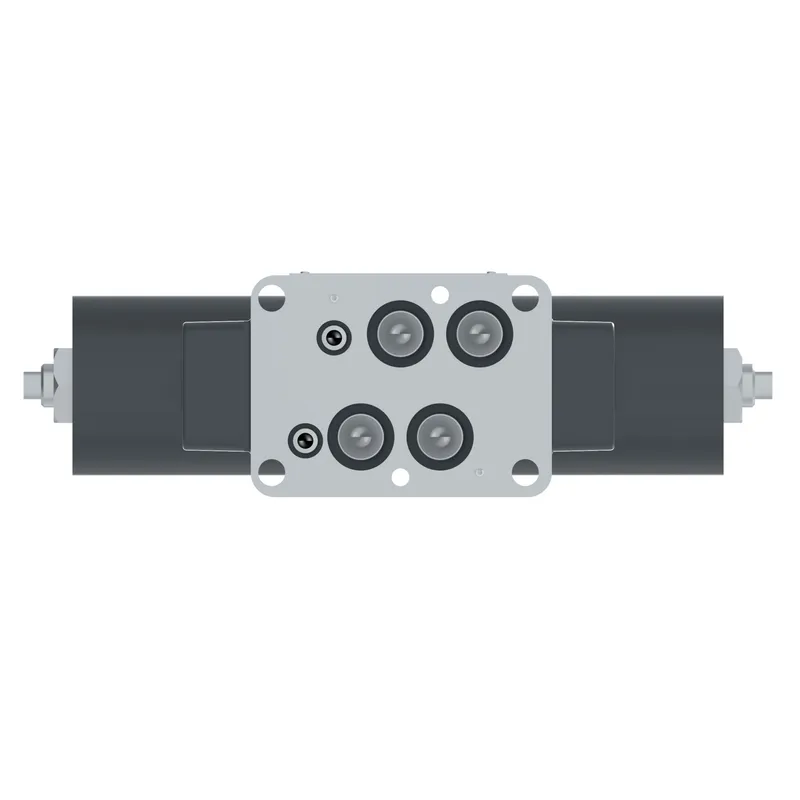

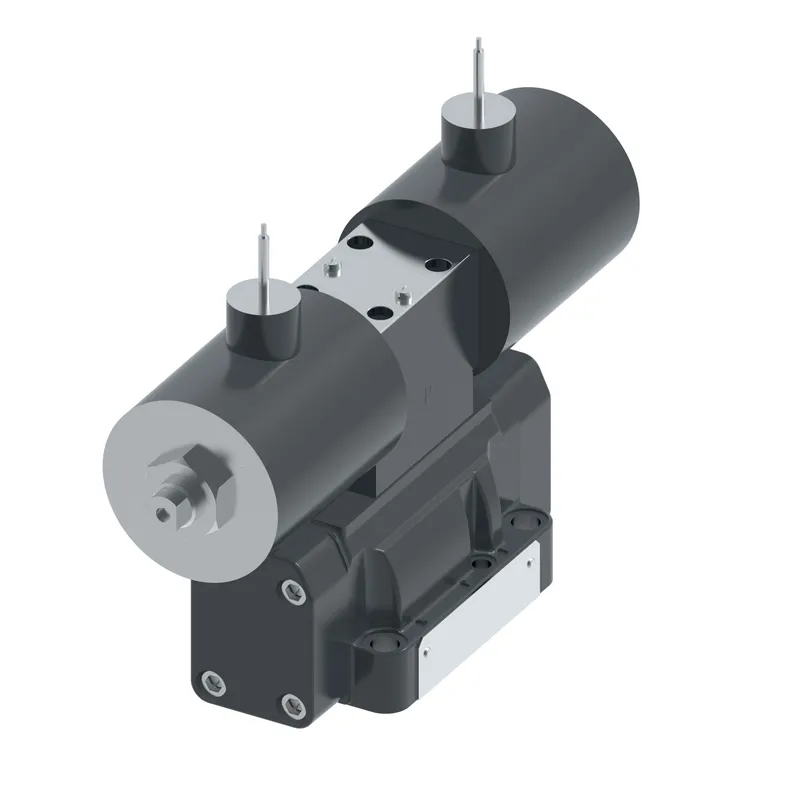

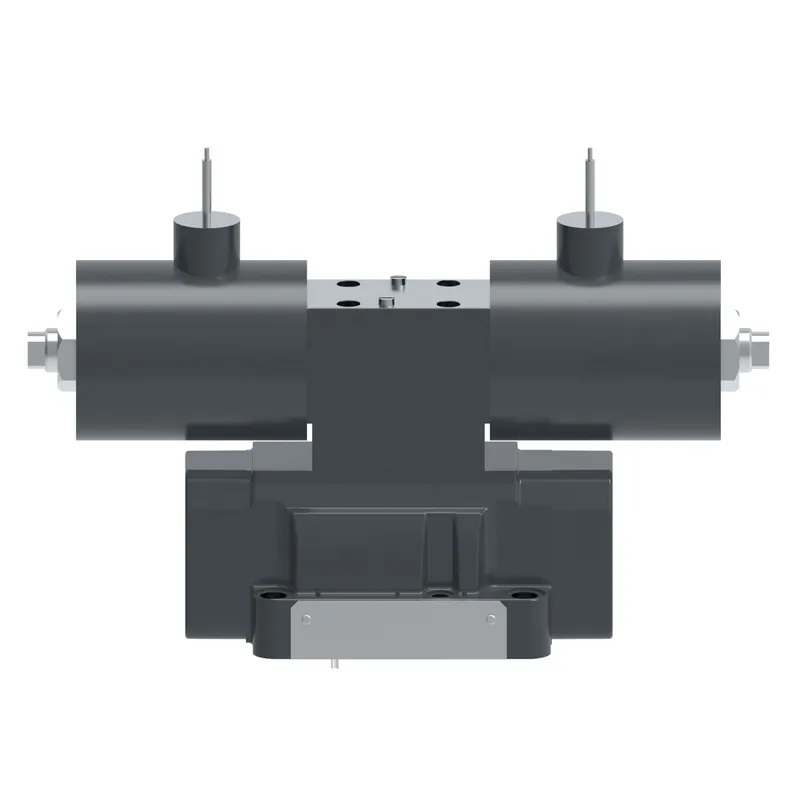

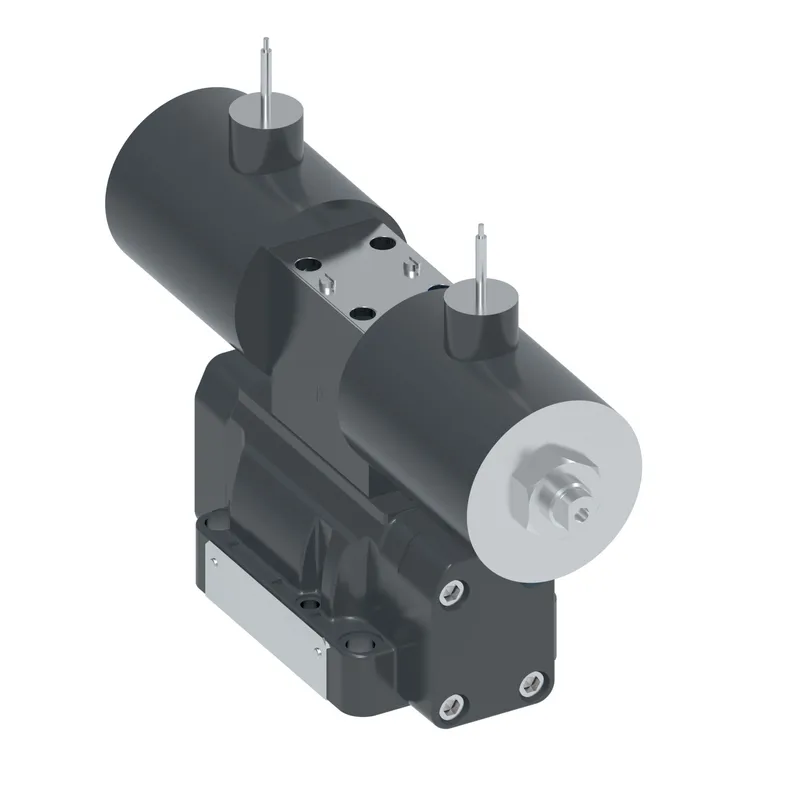

Danfoss 02-361391

F3-DG5S4-02-2AL-E-M-X2-E R4-20, F3DG5S4022ALEMX2ER420

MPN
02-361391
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-361391?

Danfoss F3-DG5S4-02-2AL-E-M-X2-E R4-20, F3DG5S4022ALEMX2ER420, manufacturer part number 02-361391. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating120 VAC 60Hz
Design Series20 Series
Electrical ConnectionHazardous solenoids UL/CSA
Ext pilot pressureInternal
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
Int pilot drainExternal
InterfaceISO4401-05
Manual overridePlain
Model Code 1F3DG5S4022ALEMX2ER420
PerformanceStandard performance
Pressure rating BAR210
Pressure rating PSI3000
Seal typeWATER GLYCOL
Solenoid Energising IDStandard as per ANSI B93 9
Solenoid FeaturesHazardous location solenoids
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementSpring offset to A LH
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C65
Working temp max F150
Working temp min C-18
Working temp min F0

02-361391: frequently asked questions

When can 02-361391 be shipped?

02-361391 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-361391 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-361391 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-361391, subject to availability and destination.
