Danfoss 02-361118

CPF1S 08 G H 20, CPF1S08GH20

MPN
02-361118
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-361118?

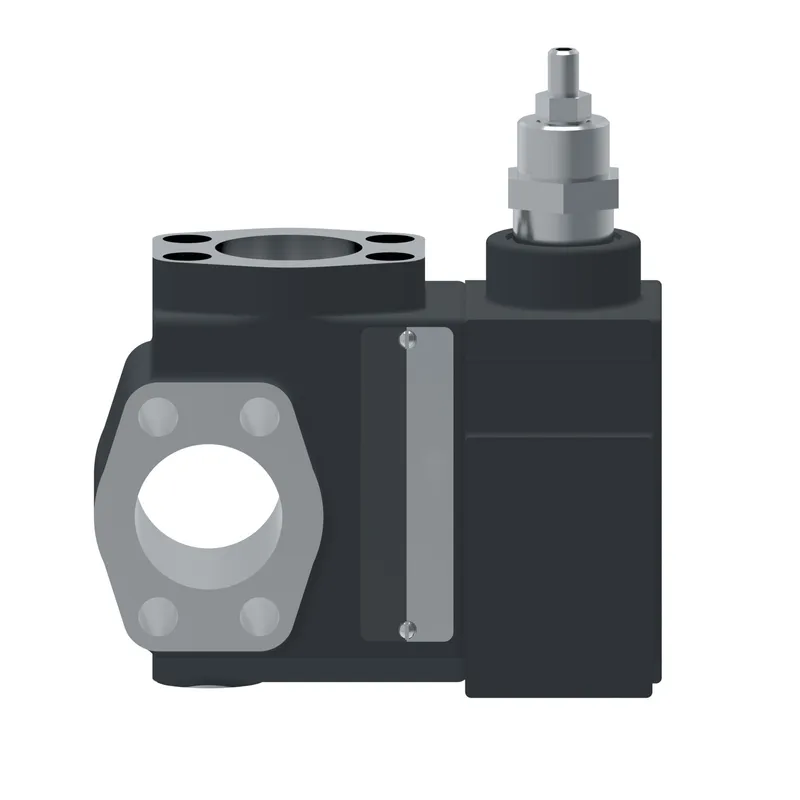

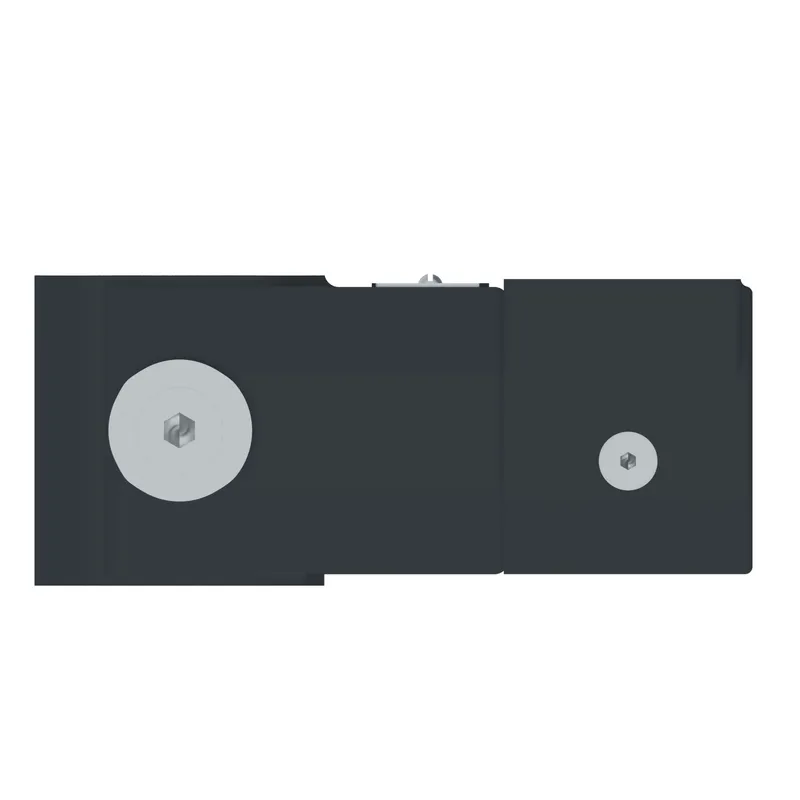

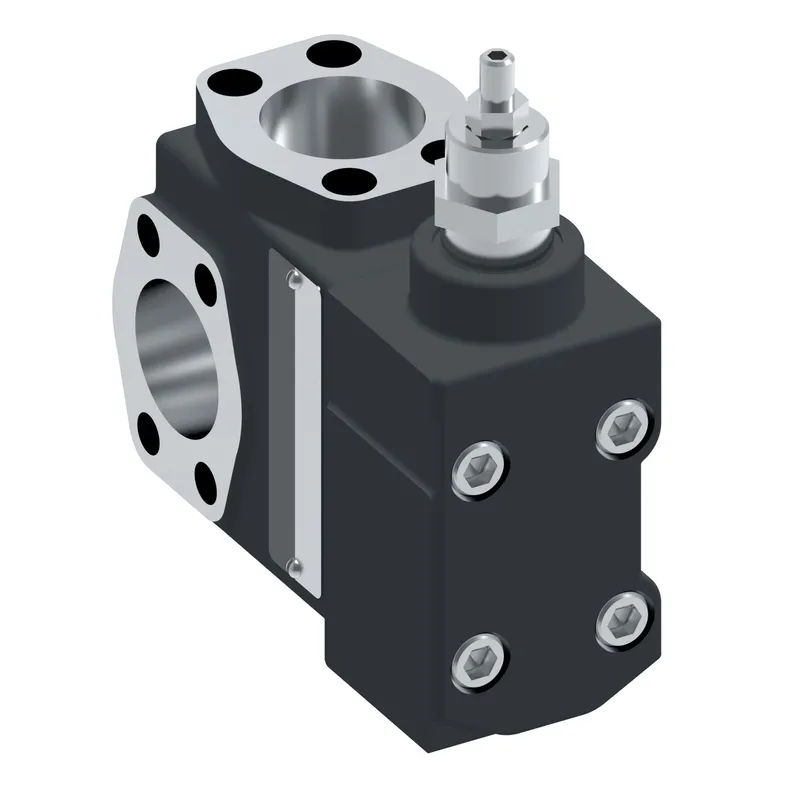

Danfoss CPF1S 08 G H 20, CPF1S08GH20, manufacturer part number 02-361118. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot actuated
Adjustment range10-275 bar (145-4000 psi)
Adjustment typeHandknob without keylock
BrandVickers by Danfoss
Design Series20 Series
DrainInternal
Electrical connectionNone
Flow rate lpm300.0
Flow rate USGPM80.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Gauge port threadG 1/4 BSP thd
Hi-vent springNo
Indicator LightNo
Maximum pressure BAR275
Maximum pressure PSI4000
Model Code 1CPF1S08GH20
PerformanceStandard
Product height in7.010
Product height mm178.054
Product length in5.680
Product length mm144.272
Product width in2.500
Product width mm63.5
Seal materialNitrile
SizeSAE 1"
Special featureNone
StageTwo stage
Tank pressure bar210
Tank pressure PSI3000
Valve Mount TypeFlange mounted
Valve typeRelief, single pressure
Working temperature max C80
Working temperature max F176
Working temperature min C-20
Working temperature min F-4

02-361118: frequently asked questions

When can 02-361118 be shipped?

02-361118 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-361118 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-361118 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-361118, subject to availability and destination.
