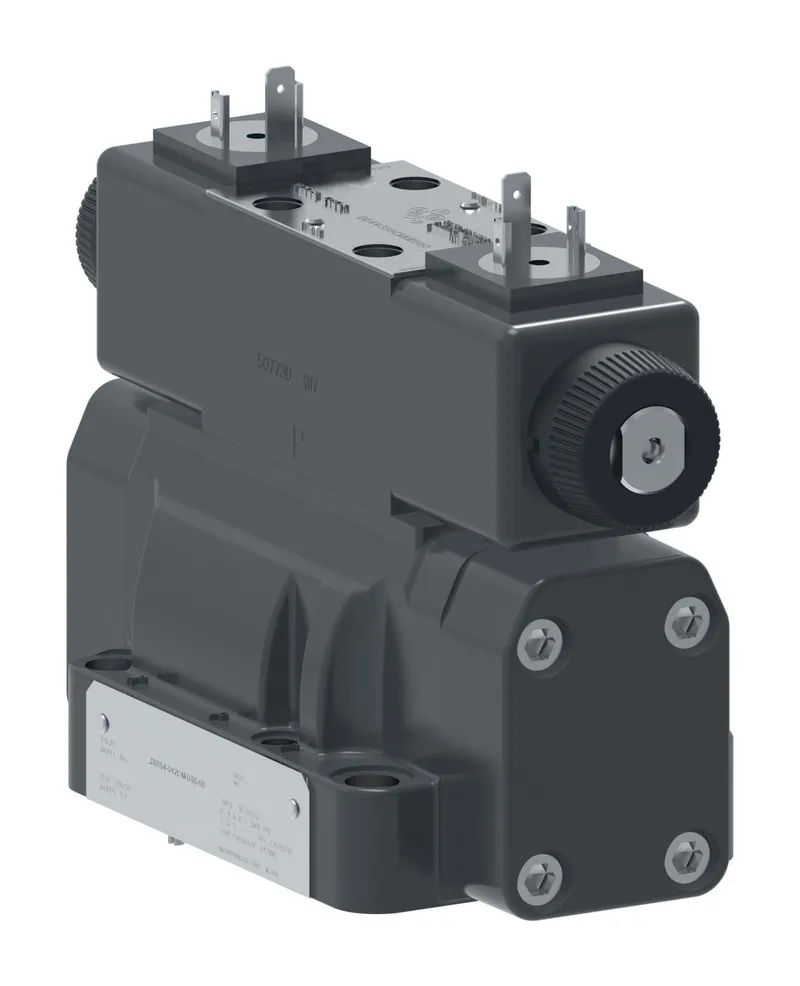

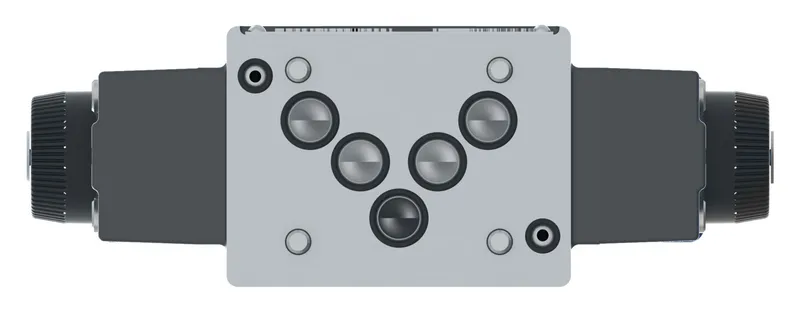

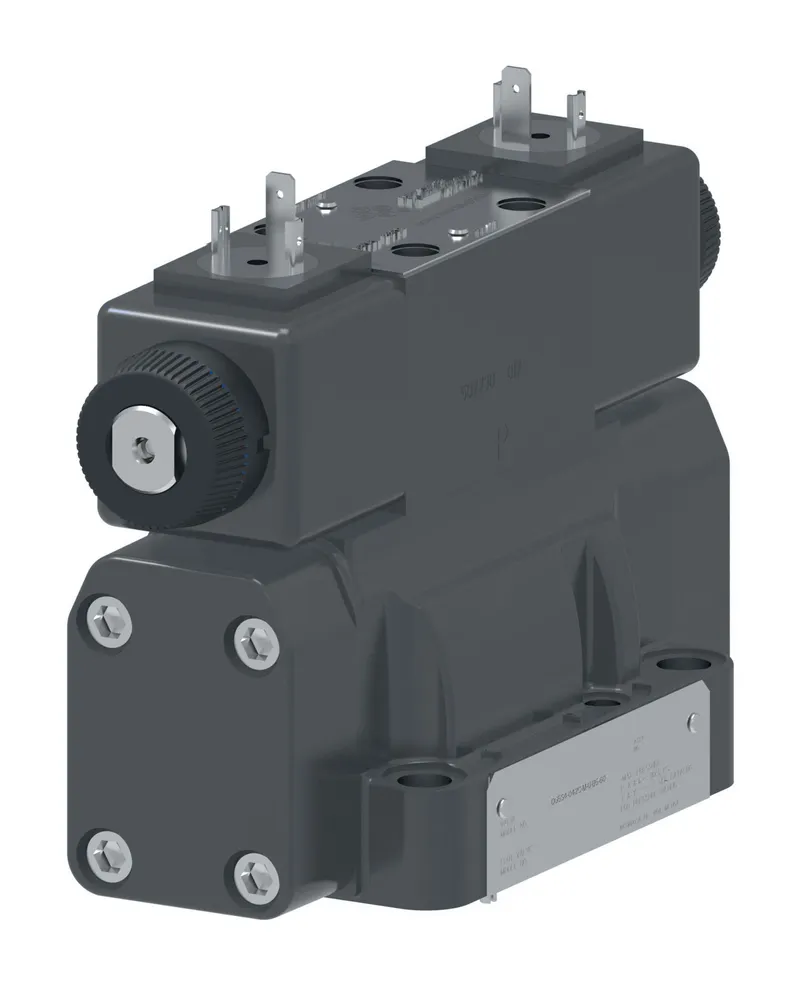

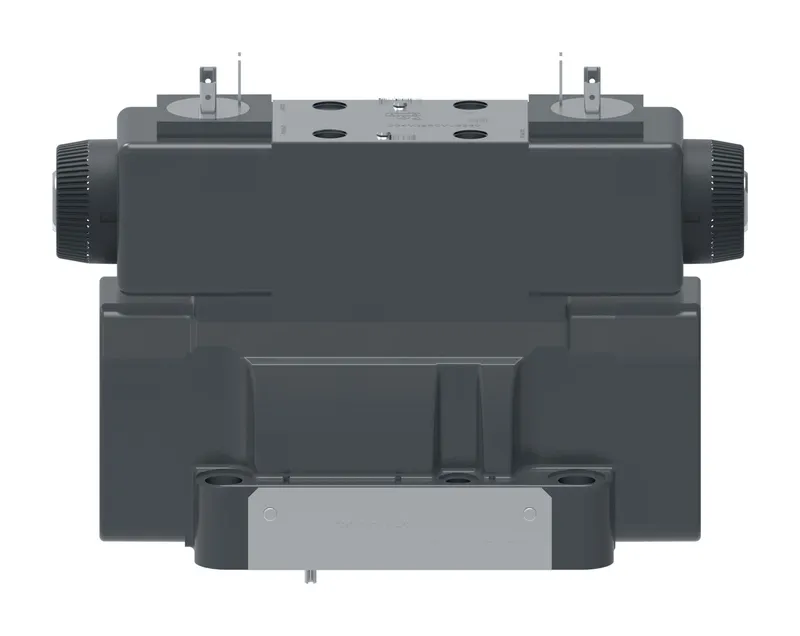

What is the Danfoss 02-360888?

Danfoss DG5S4-02-4C-H-E-T-M-VM-U-BL6-30-EN539, DG5S4024CHETMVMUBL630EN539, manufacturer part number 02-360888. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series30 Series
Electrical ConnectionISO 4400 (Din 43650) connector
Ext pilot pressureExternal
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
Int pilot drainInternal
InterfaceISO4401-05
Manual overrideWaterproof
Model Code 1DG5S4024CHETMVMUBL630EN539
PerformanceStandard performance
Pressure rating BAR210
Pressure rating PSI3000
Product height in6.170
Product height mm156.718
Product length in7.870
Product length mm199.898
Product width in2.630
Product width mm66.802
Seal typeBuna-N
Solenoid Energising IDSol A port A/Sol B port B
Special featuresSpecial body, low leakage
Spool Position MonitorNo
Spool TypeSpool 4
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR160.0
Tank port rating PSI2300
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C65
Working temp max F150
Working temp min C-18
Working temp min F0
