Danfoss 02-360682

DG4V4-012A-M-PBW-B-5-10, DG4V4012AMPBWB510

MPN
02-360682
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-360682?

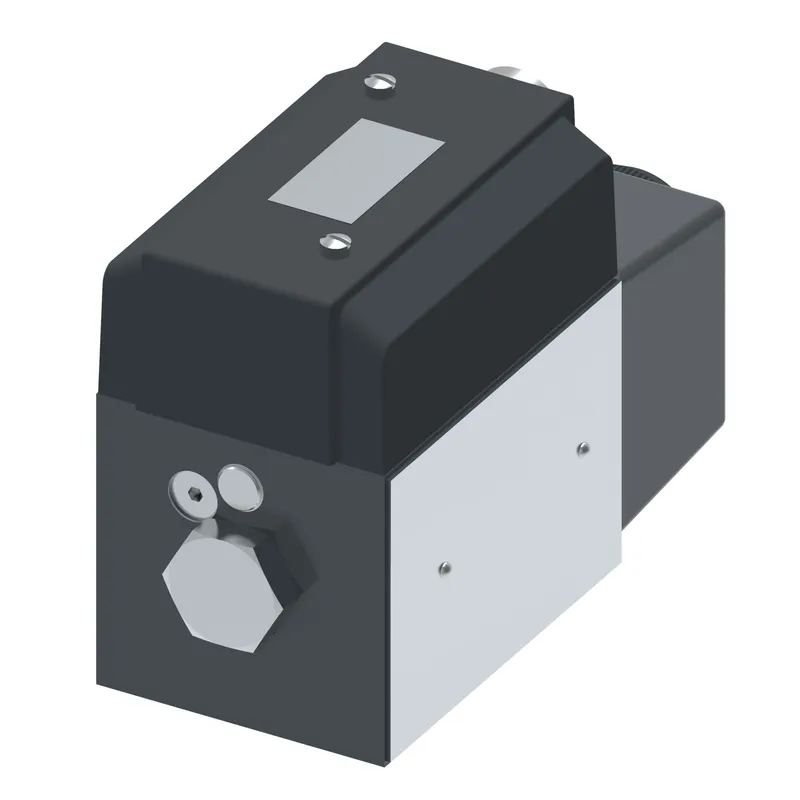

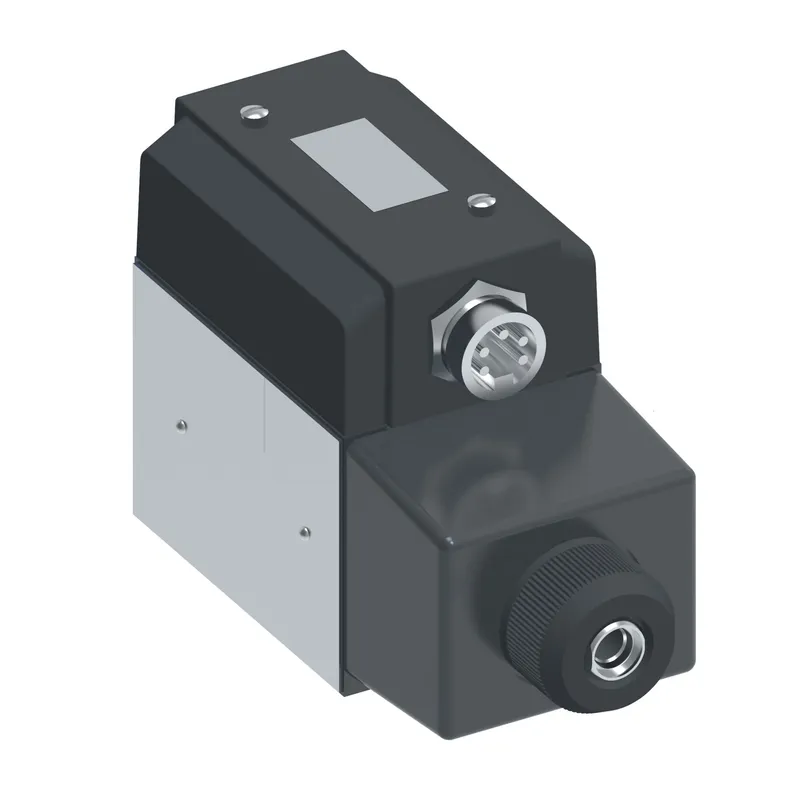

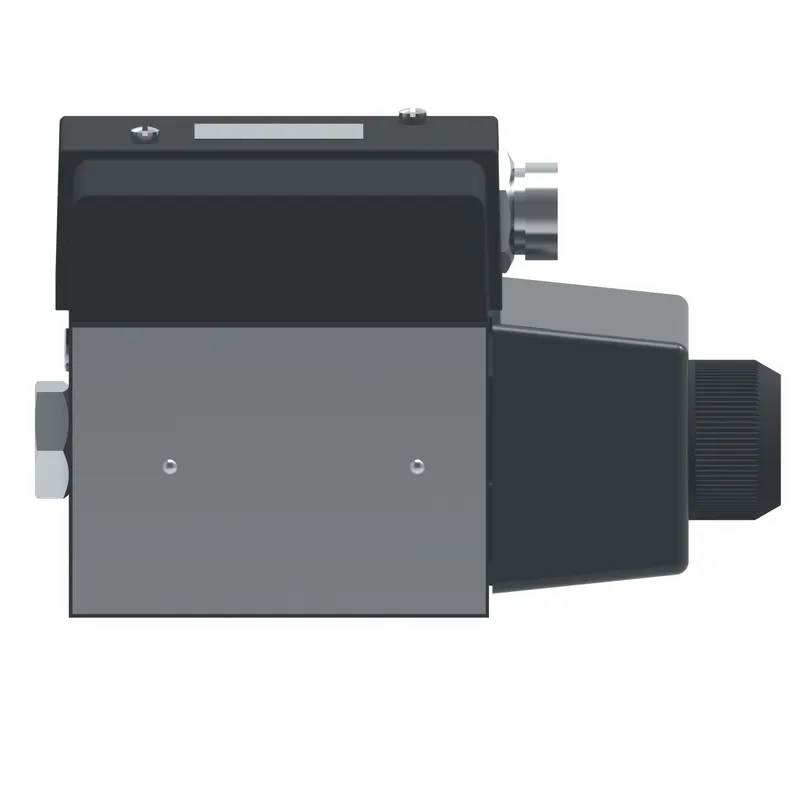

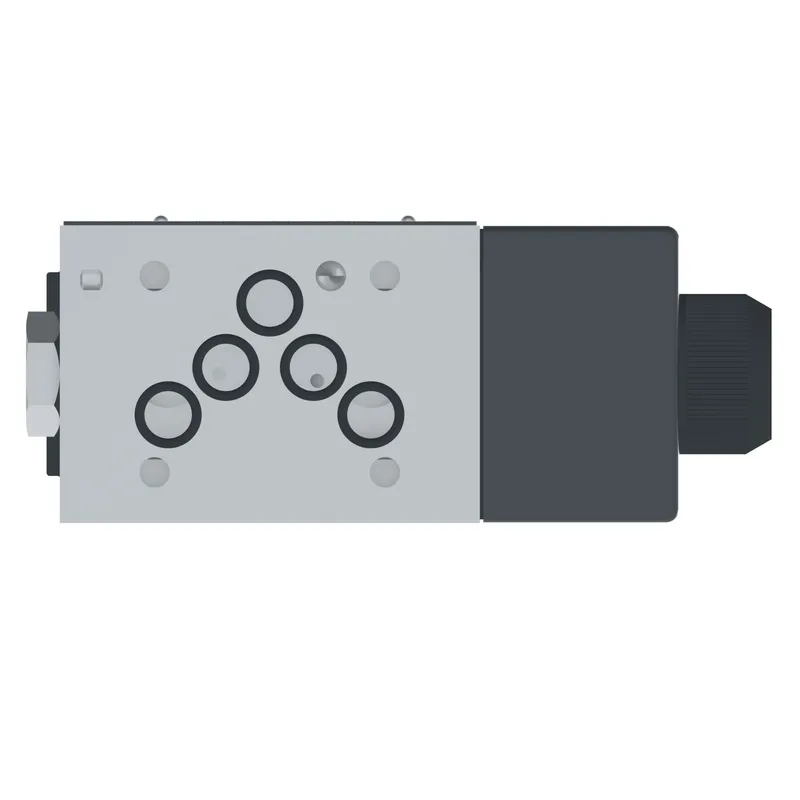

Danfoss DG4V4-012A-M-PBW-B-5-10, DG4V4012AMPBWB510, manufacturer part number 02-360682. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series10 Series
Electrical ConnectionInstaplug male and female receptacle
Energ Time18-25 ms
Flow rate upto GPM30.0
Flow rate upto LPM115.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-05/NFPA D05
Manual overridePlain
Model Code 1DG4V4012AMPBWB510
PerformanceStandard performance
Power Consumption37 watt
Pressure rating BAR315
Pressure rating PSI4500
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementSpring offset end to end
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR120.0
Tank port rating PSI1750
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70

02-360682: frequently asked questions

When can 02-360682 be shipped?

02-360682 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-360682 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-360682 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-360682, subject to availability and destination.
