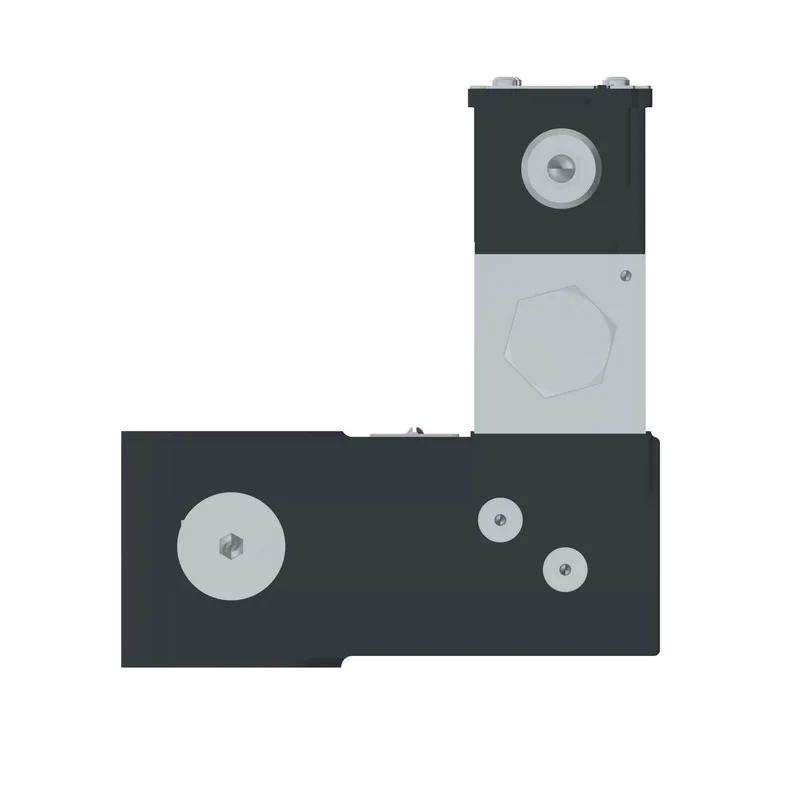

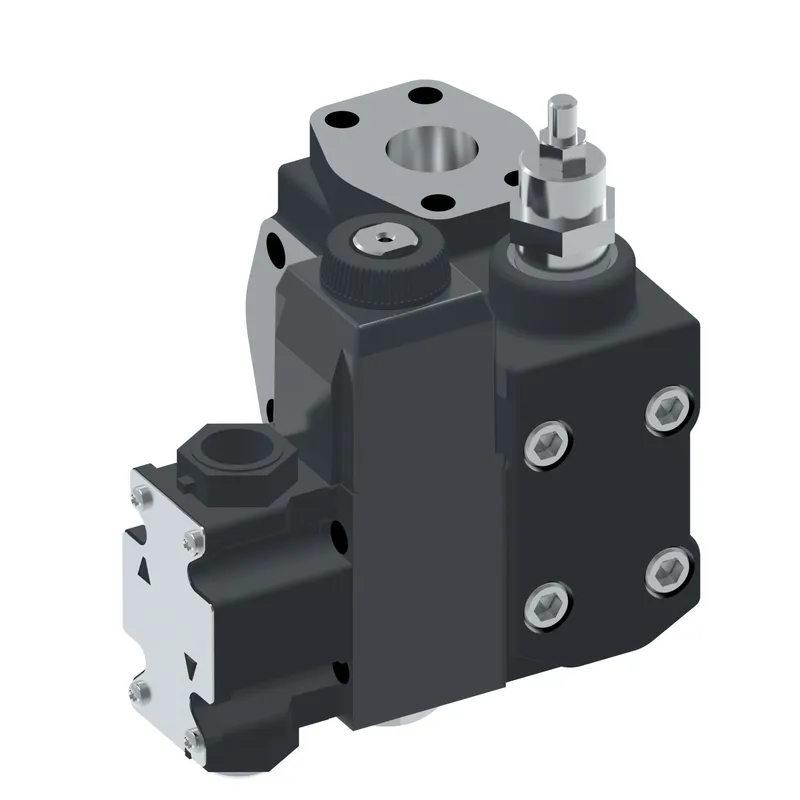

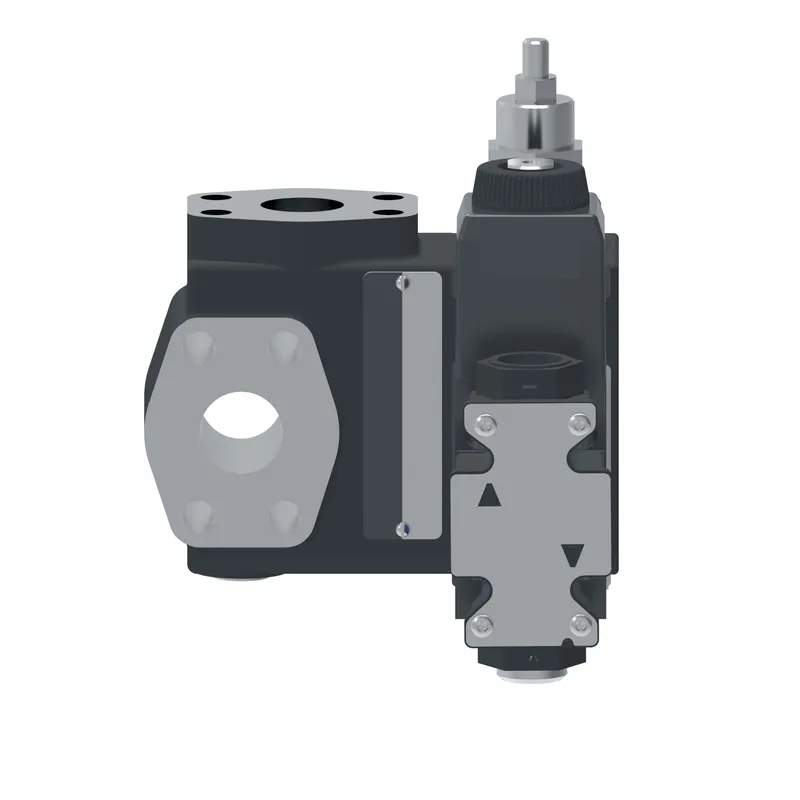

Danfoss 02-360397

CPF3S-08-FFF-W-3S-M-FW-B 5-20, CPF3S08FFFW3SMFWB520

MPN
02-360397
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-360397?

Danfoss CPF3S-08-FFF-W-3S-M-FW-B 5-20, CPF3S08FFFW3SMFWB520, manufacturer part number 02-360397. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
Adjustment range head 110-207 bar (145-3000 psi)
Adjustment range head 210-207 bar (145-3000 psi)
Adjustment range head 310-207 bar (145-3000 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Coil voltage110 VAC 50Hz/120 VAC 60Hz
Design Series20 Series
DrainInternal
Electrical connectionFlying lead 1/2" NPT housing
Flow rate lpm300.0
Flow rate USGPM80.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Gauge port threadG 1/4 BSP thd
Hi-vent springNo
Indicator LightNo
Manual overridePlain
Maximum pressure BAR275
Maximum pressure PSI4000
Model Code 1CPF3S08FFFW3SMFWB520
PerformanceStandard
Product height in9.850
Product height mm250.190
Product length in5.680
Product length mm144.272
Product width in7.820
Product width mm198.628
Seal materialNitrile
SizeSAE 1"
Special featureNone
StageTwo stage
Tank pressure bar210
Tank pressure PSI3000
Valve Mount TypeFlange mounted
Valve typeBi-pressure relief valve
Working temperature max C80
Working temperature max F176
Working temperature min C-20
Working temperature min F-4

02-360397: frequently asked questions

When can 02-360397 be shipped?

02-360397 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-360397 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-360397 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-360397, subject to availability and destination.
