What is the Danfoss 02-360349?

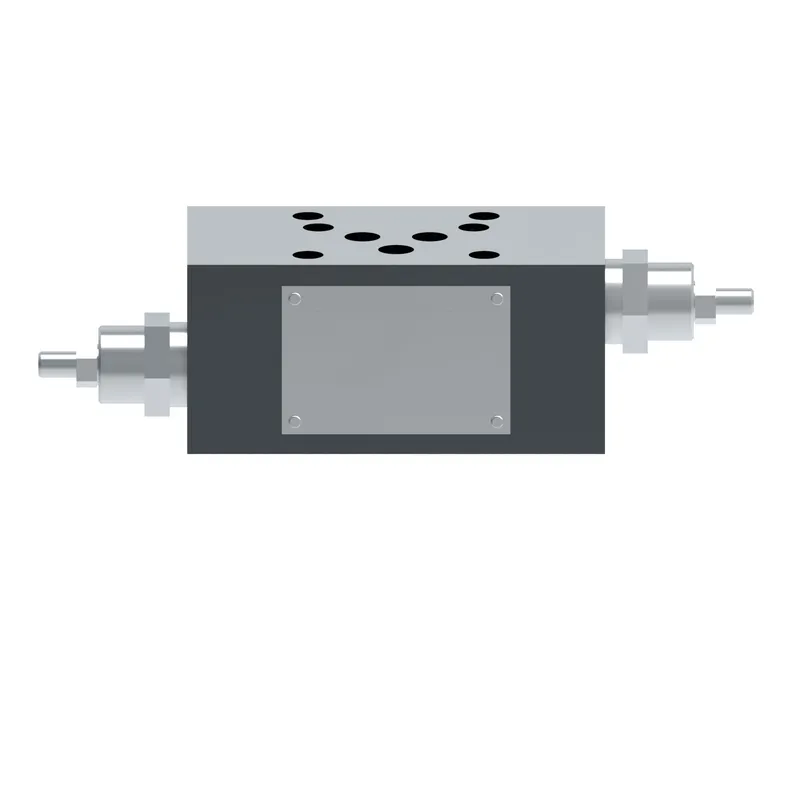

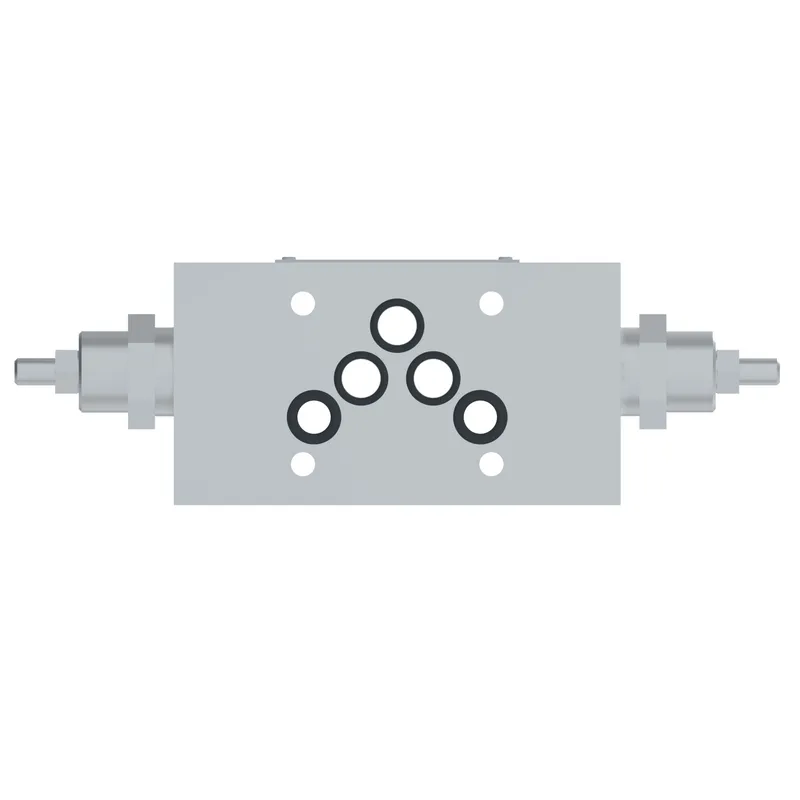

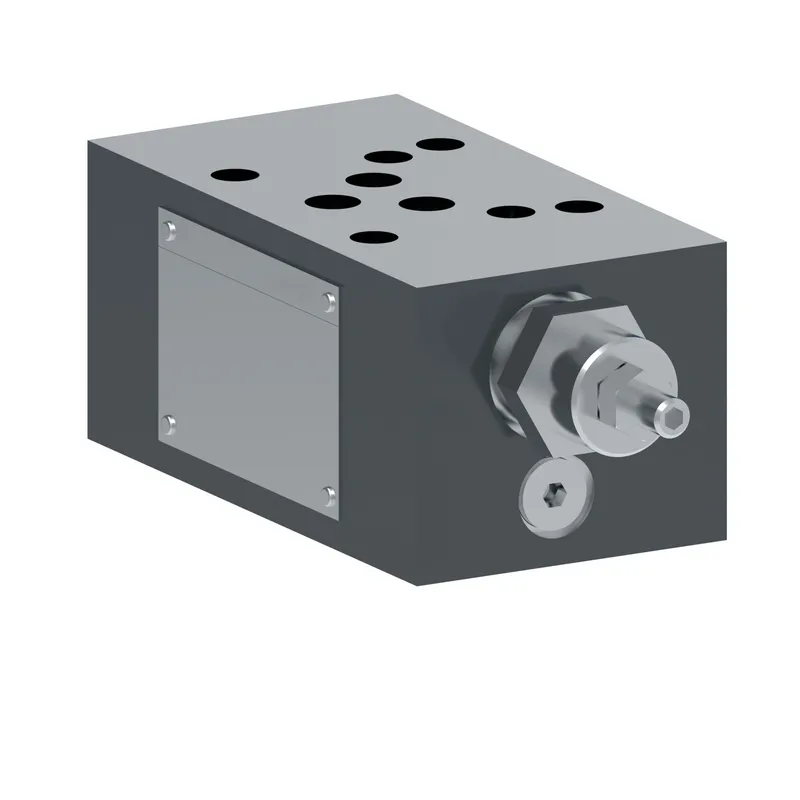

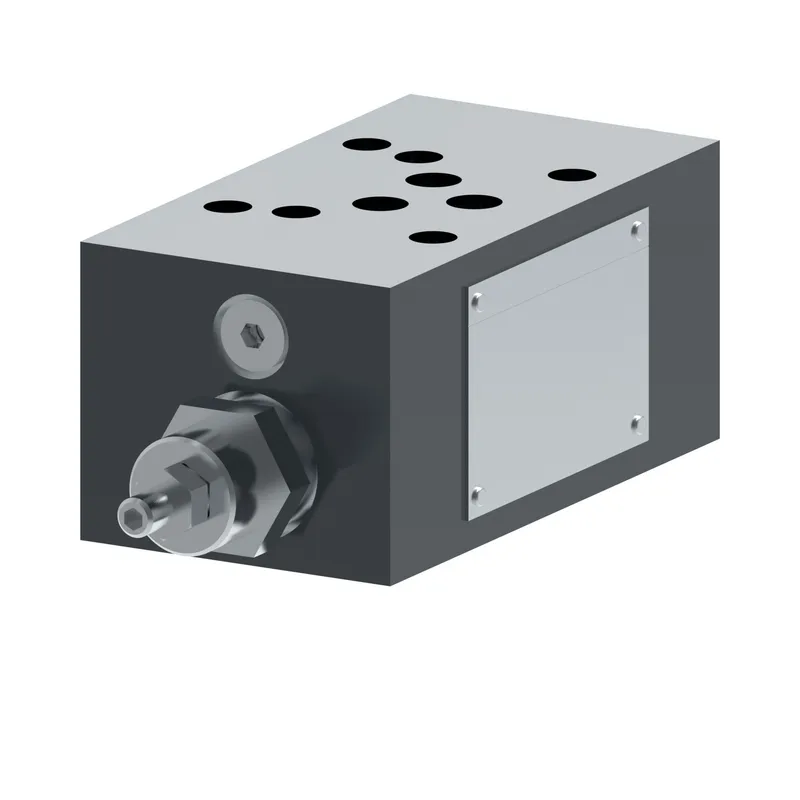

Danfoss DGMC2 5 AT AW BT AW B 30, DGMC25ATAWBTAWB30, manufacturer part number 02-360349. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePressure operated
Adjustment typeScrew and locknut
BrandVickers by Danfoss
Design Series30 Series
External drainNo
Flow rate upto LPM120
Flow rate upto USGPM32.0
Fluid Cleanliness17/15/12 micron
Fluid compatibilityPetroleum oils
Function 1 pressure adjustment4-50 bar (60-725 psi)
Function 2 pressure adjustment4-50 bar (60-725 psi)
Gauge Port Thread TypeG1/8" (1/8" BSPF)
InterfaceISO4401-05
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model Code 1DGMC25ATAWBTAWB30
P port acted uponB cylinder port
PerformanceStandard
Port drained intoTank port
Port drained into dualT port
Port operated uponA cylinder port
Pressure adjustment range4-50 bar (60-725 psi)
Product height in1.970
Product height mm50.038
Product length in9.840
Product length mm249.936
Product width in2.820
Product width mm71.628
Remote control portNo
Seal typeViton
Special featuresNone
Valve Mount TypeSubplate/manifold mounted
Valve typeDual relief function valve
Working temp max C80
Working temp max F176
Working temp min C0
Working temp min F32
