Home / Danfoss (Drives) / Industrial valves / Danfoss 02-359204

Danfoss (Drives)

Danfoss 02-359204

CVU 16 EFP1 B29 19 31 EN116, CVU16EFP1B291931EN116

MPN: 02-359204
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-359204?

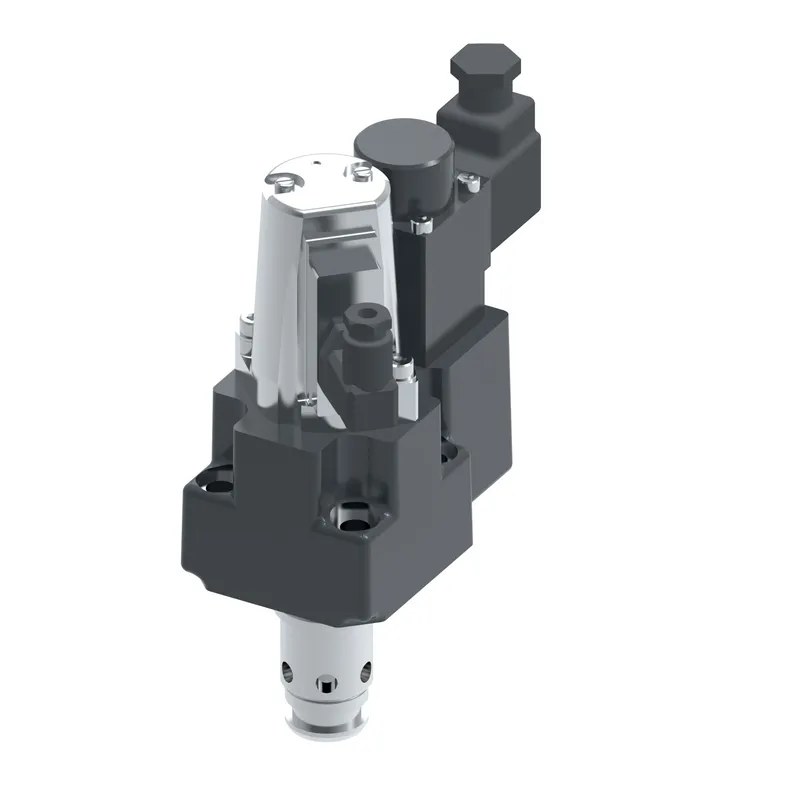

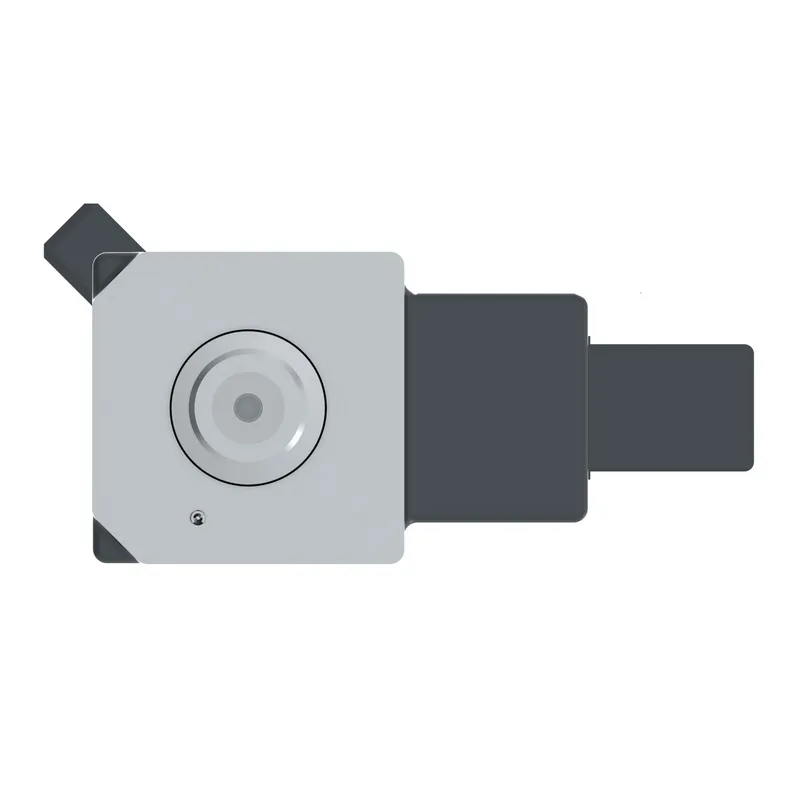

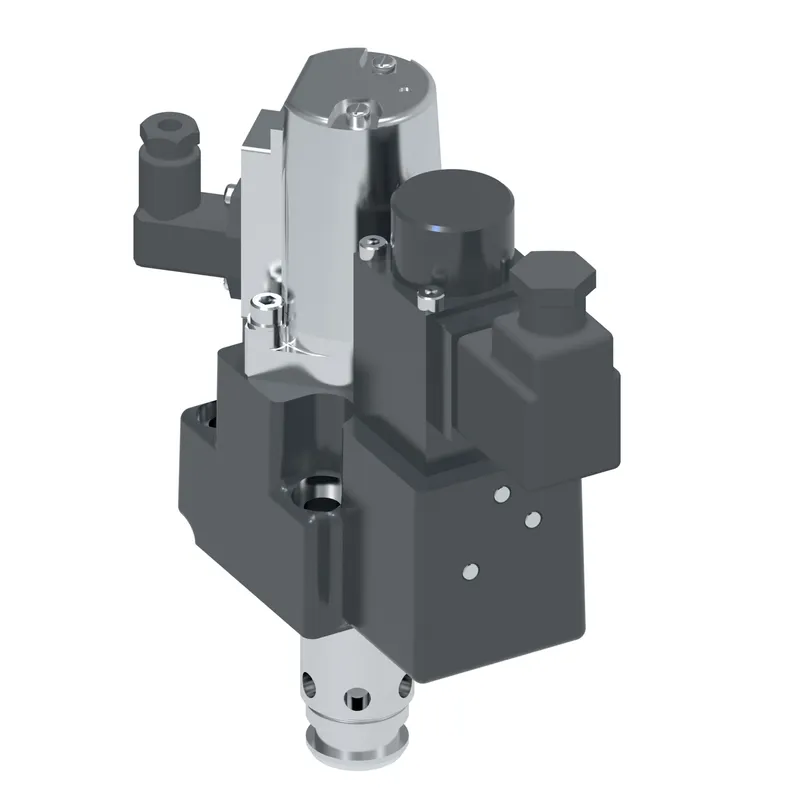

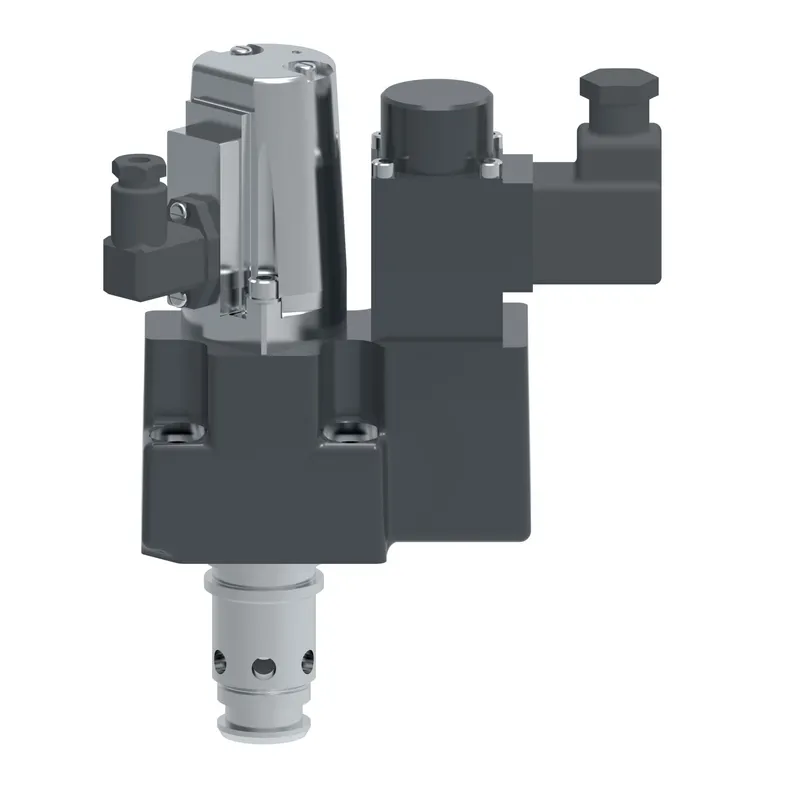

Danfoss CVU 16 EFP1 B29 19 31 EN116, CVU16EFP1B291931EN116, manufacturer part number 02-359204. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Cover type	Electrohyd proportional throttle valve
Cracking pressure BAR	2.50
Cracking pressure PSI	36.0
Design Series	31 Design
Flow rate LPM	190
Flow rate USGPM	50.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	BSPF
Insert ratio	1:1.4
Interface	No
Leakage	Standard
Model Code 1	CVU16EFP1B291931EN116
Pilot port orientation	ISO
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	7.290
Product height mm	185.166
Product length in	6.010
Product length mm	152.654
Product width in	2.620
Product width mm	66.548
Seal material	Buna-N
Size	NG 16
Special feature	Hawe check valve in 'X 'port
Spool position sensor	No
Valve type	Cartridge valve unit
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-359204: frequently asked questions

When can 02-359204 be shipped?

02-359204 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-359204 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-359204 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-359204, subject to availability and destination.
