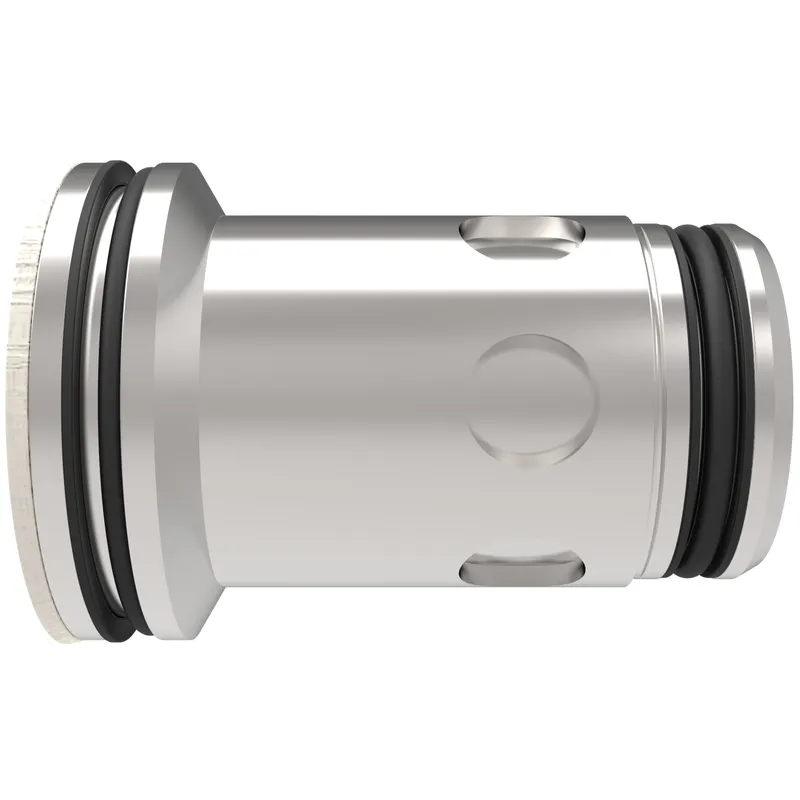

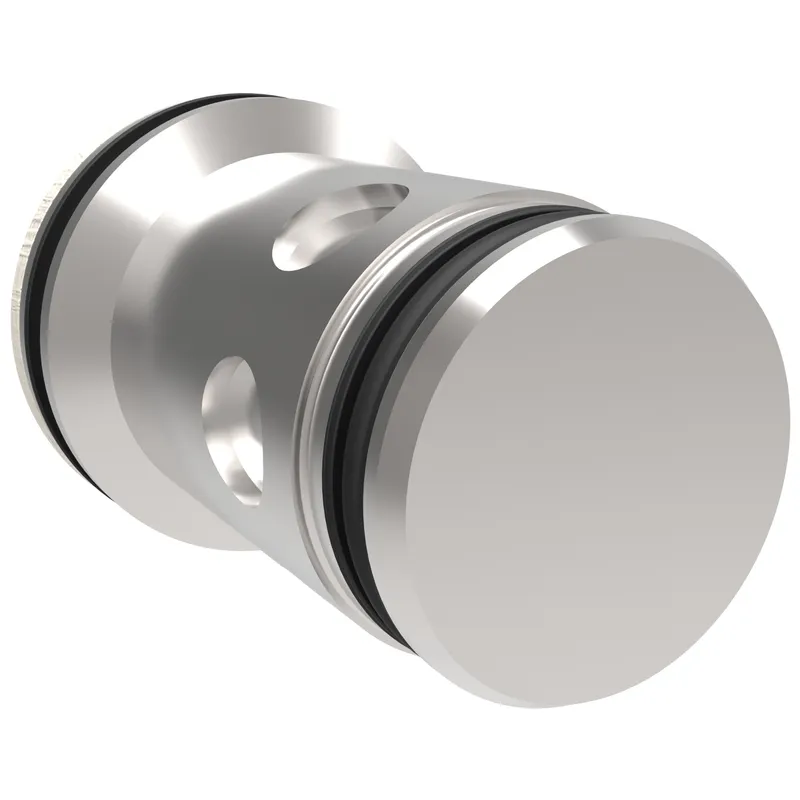

Danfoss 02-358046

F3 CVI 16 HFV 20 B 21 10, F3CVI16HFV20B2110

MPN: 02-358046
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-358046?

Danfoss F3 CVI 16 HFV 20 B 21 10, F3CVI16HFV20B2110, manufacturer part number 02-358046. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Design Series	10 Design
Flow rate LPM	210
Flow rate USGPM	55.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Phosphate Ester and other Synthetic Fire Resistant Fluids
Gauge port thread	SAE
Insert ratio	1:2
Insert type	Directional
Interface	No
Leakage	Standard
Model Code 1	F3CVI16HFV20B2110
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	1.250
Product height mm	31.750
Product length in	1.880
Product length mm	47.752
Product width in	1.250
Product width mm	31.75
Seal material	Viton
Size	NG 16
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve insert
Valvistor	Yes
Valvistor type	Proportional Throttle Valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
