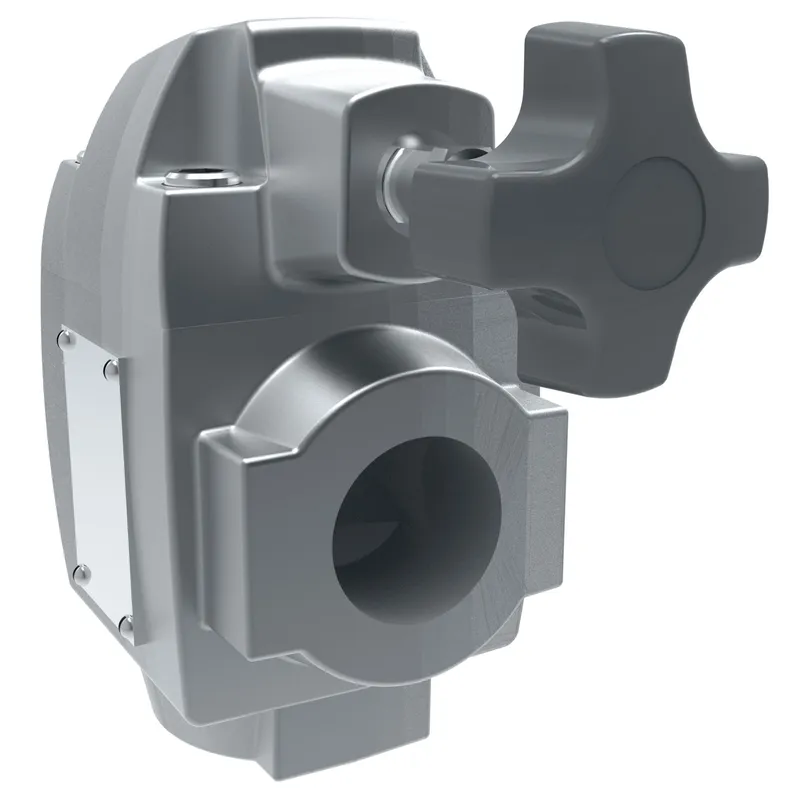

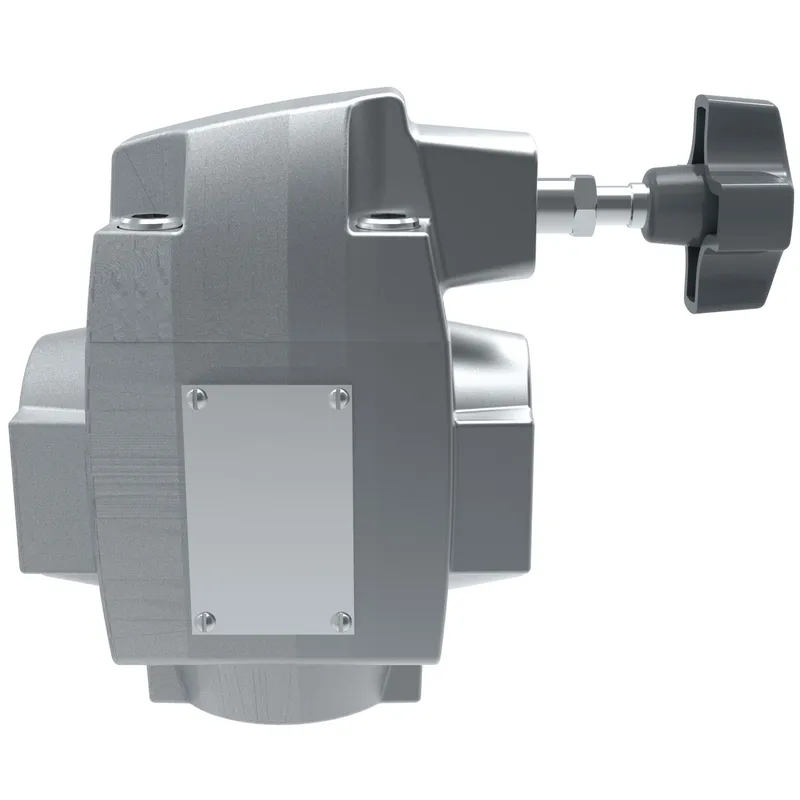

Danfoss 02-357535
CG-06-FECV-DG-8C-VM-FTWL -B6-P10-51, CG06FECVDG8CVMFTWLB6P1051
- MPN
- 02-357535
- Category
- Industrial valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-357535?
Danfoss CG-06-FECV-DG-8C-VM-FTWL -B6-P10-51, CG06FECVDG8CVMFTWLB6P1051, manufacturer part number 02-357535. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Solenoid operated |
| Adjustment range | 100-210 bar (1500-3000 psi) |
| Adjustment range head 1 | 100-210 bar (1500-3000 psi) |
| Adjustment range head 2 | Vent |
| Adjustment range head 3 | 35-140 bar (500-2000 psi) |
| Adjustment type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Coil voltage | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 51 Series |
| Electrical connection | Fly.lead term. block 1/2" NPT |
| Flow rate lpm | 227.0 |
| Flow rate USGPM | 60.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid compatibility | Petroleum oils |
| Hi-vent spring | Yes |
| Indicator Light | Yes |
| Manual override | None |
| Maximum pressure BAR | 210 |
| Maximum pressure PSI | 3000 |
| Model Code 1 | CG06FECVDG8CVMFTWLB6P1051 |
| Performance | Standard |
| Product height in | 10.750 |
| Product height mm | 273.050 |
| Product length in | 7.870 |
| Product length mm | 199.898 |
| Product width in | 5.030 |
| Product width mm | 127.762 |
| Seal material | Nitrile |
| Size | Size 06 |
| Special feature | None |
| Stage | Two stage |
| Valve Mount Type | Subplate/manifold mounted |
| Valve type | Relief valve |
| Working temperature max C | 70 |
| Working temperature max F | 158 |
| Working temperature min C | -20 |
| Working temperature min F | -4 |
02-357535: frequently asked questions
When can 02-357535 be shipped?
02-357535 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-357535 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-357535 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-357535, subject to availability and destination.
