What is the Danfoss 02-356399?

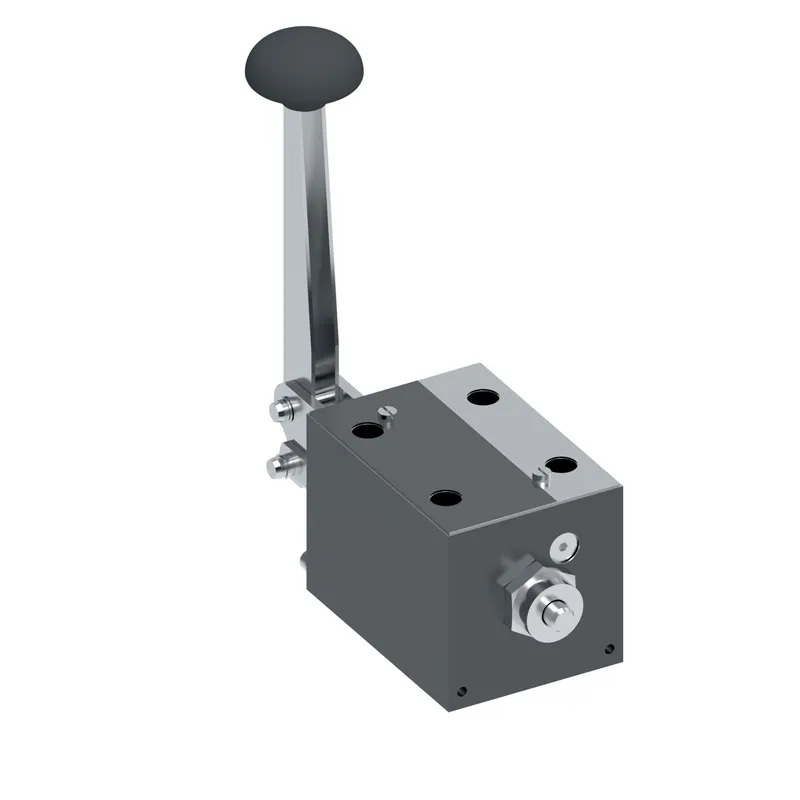

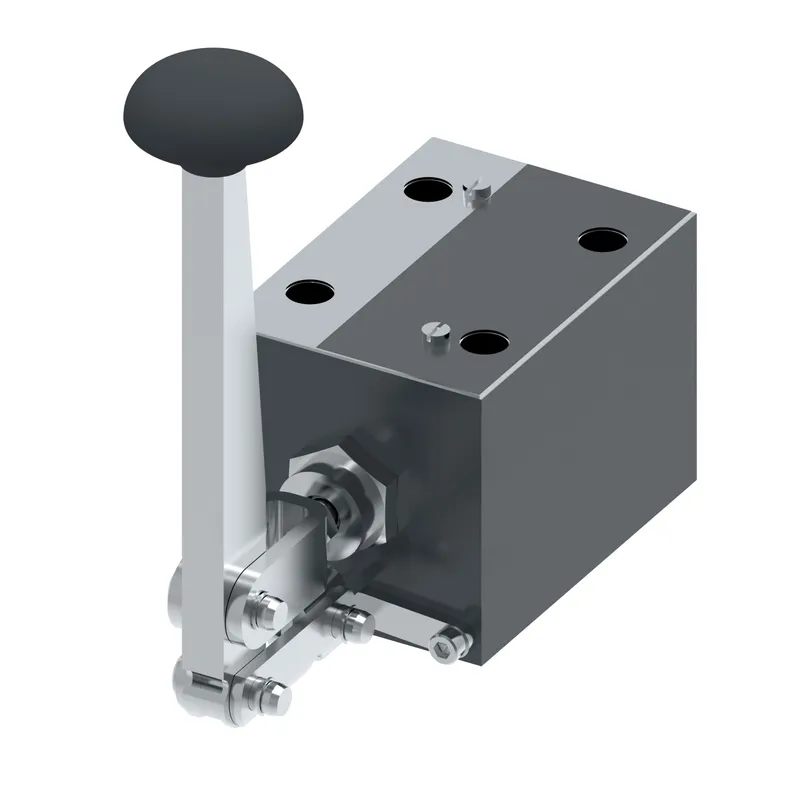

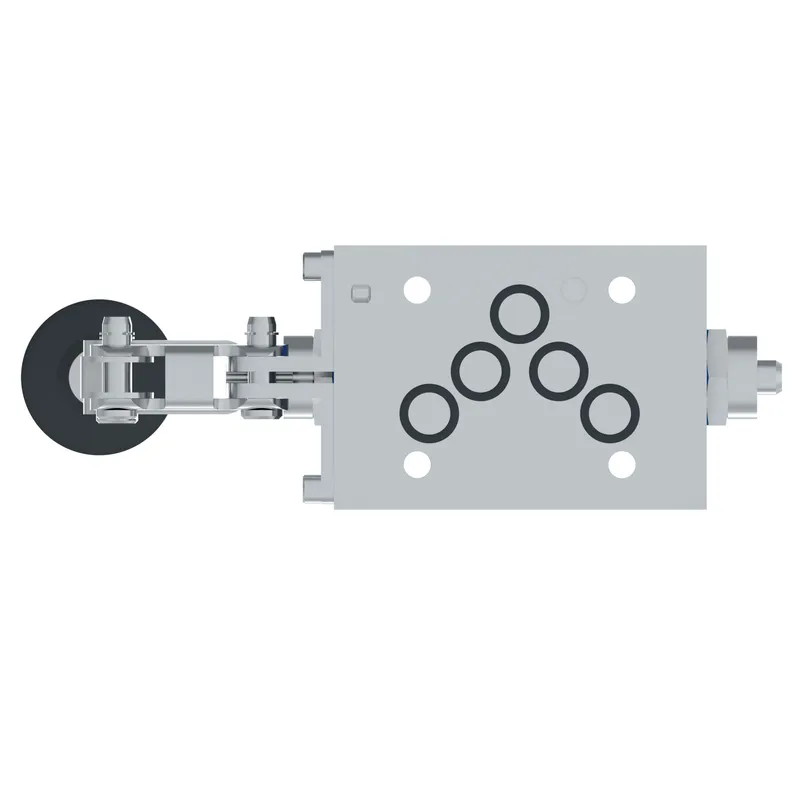

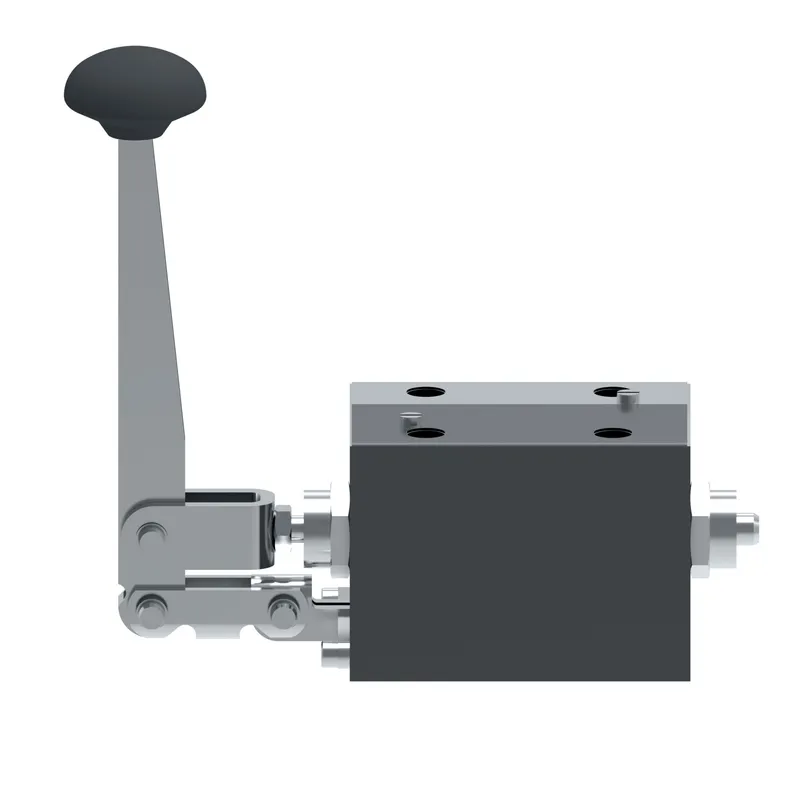

Danfoss DG17V4-018N-10, DG17V4018N10, manufacturer part number 02-356399. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Manual lever operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	10 Series
Electrical Connection	None
Flow rate upto GPM	30.0
Flow rate upto LPM	114.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-05
Manual override	None
Model Code 1	DG17V4018N10
Performance	Standard performance
Pressure rating BAR	175
Pressure rating PSI	2500
Product height in	7.060
Product length in	6.900
Product length mm	175.260
Product width in	2.750
Product width mm	69.85
Seal type	Buna-N
Solenoid Energising ID	None
Special features	None
Spool Position Monitor	No
Spool Type	Spool 8
Spring Arrangement	No spring detented
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	70.0
Tank port rating PSI	1000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	50
Working temp max F	122
Working temp min C	20
Working temp min F	70
