Danfoss 02-354918

DG4V 3S 1C M FPBWL B5 60, DG4V3S1CMFPBWLB560

MPN: 02-354918
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-354918?

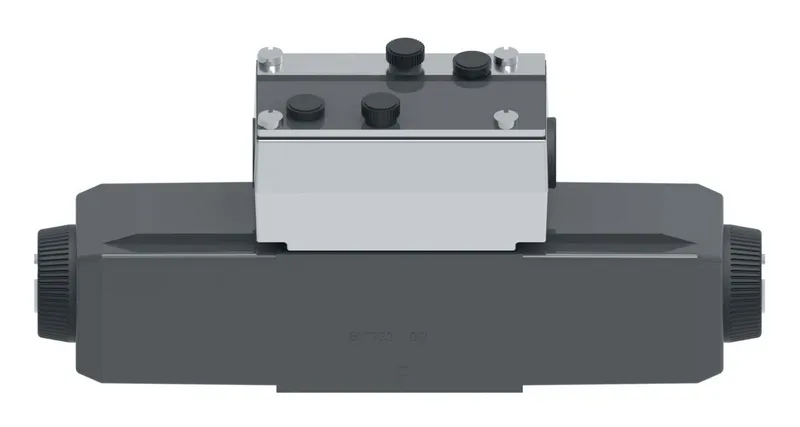

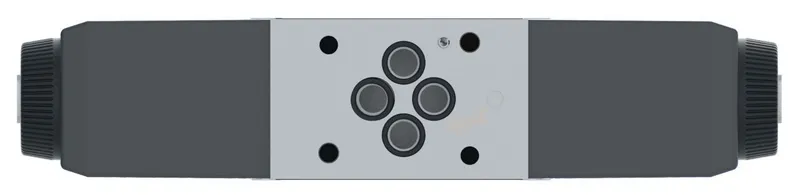

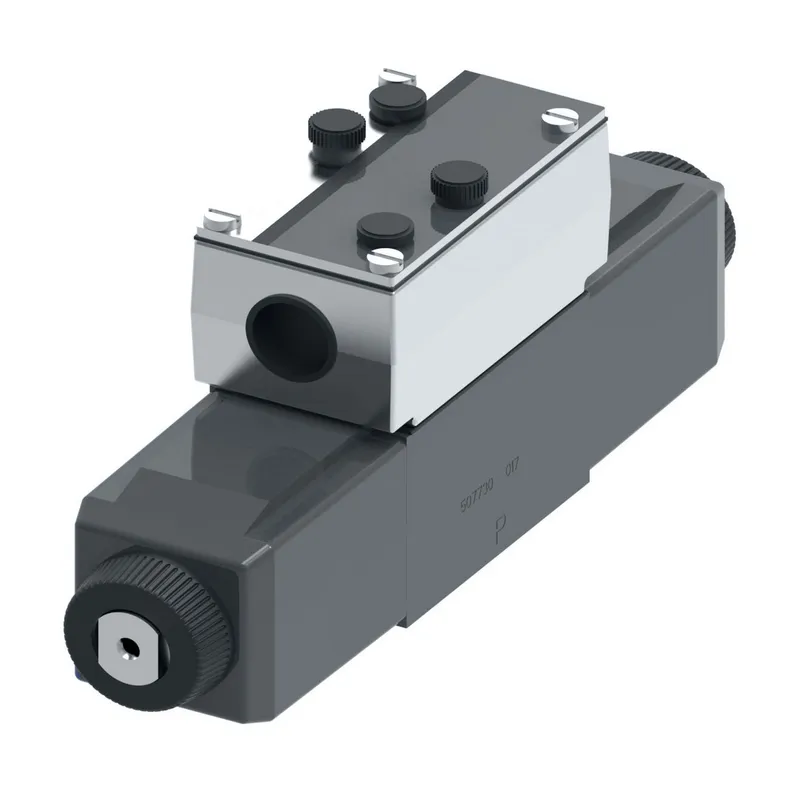

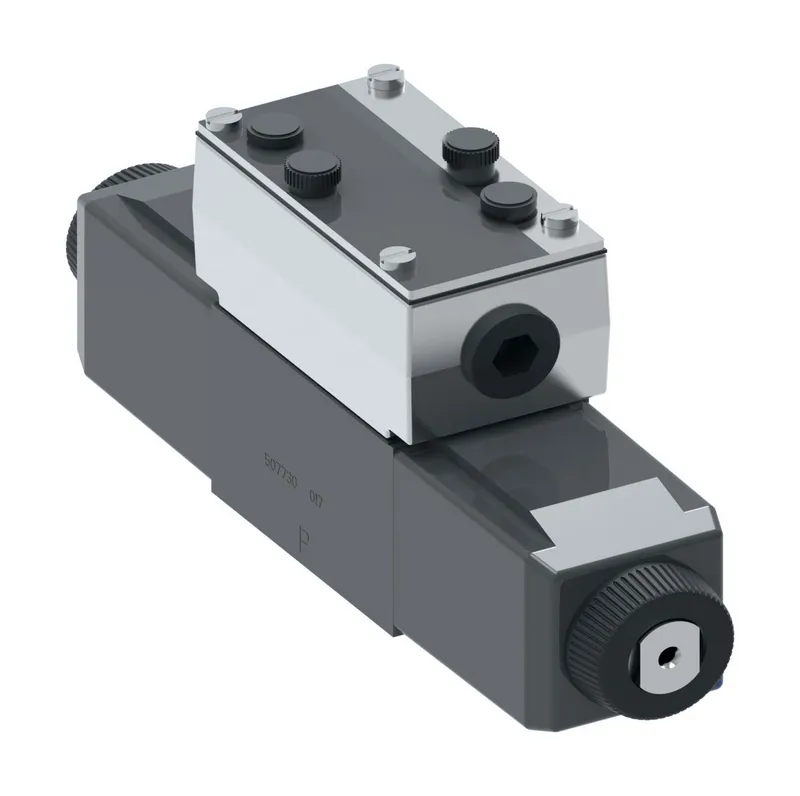

Danfoss DG4V 3S 1C M FPBWL B5 60, DG4V3S1CMFPBWLB560, manufacturer part number 02-354918. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	60 Series
Electrical Connection	Instaplug male and female receptacle
Energ Time	18-32 ms
Flow rate upto GPM	10.5
Flow rate upto LPM	40.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	Yes
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V3S1CMFPBWLB560
Performance	Standard performance
Power Consumption	49VA 50HZ - 48VA 60HZ
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.420
Product length in	7.870
Product length mm	199.898
Product width in	1.800
Product width mm	45.72
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 1
Spring Arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	100
Tank port rating PSI	1450
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
