Danfoss 02-353814

DG4V 3 8C Z VM KUP5D2 G7 61, DG4V38CZVMKUP5D2G761

MPN
02-353814
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

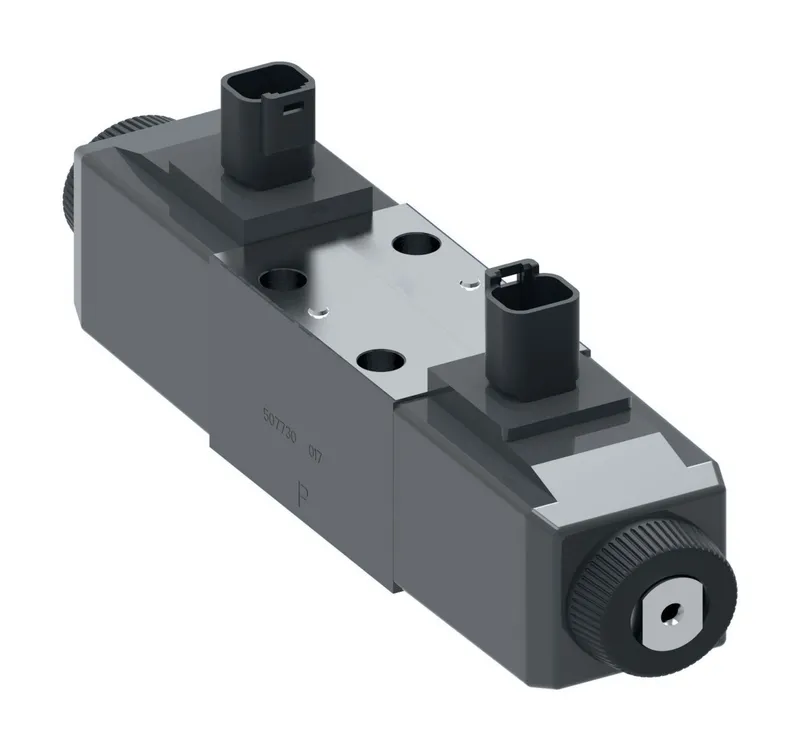

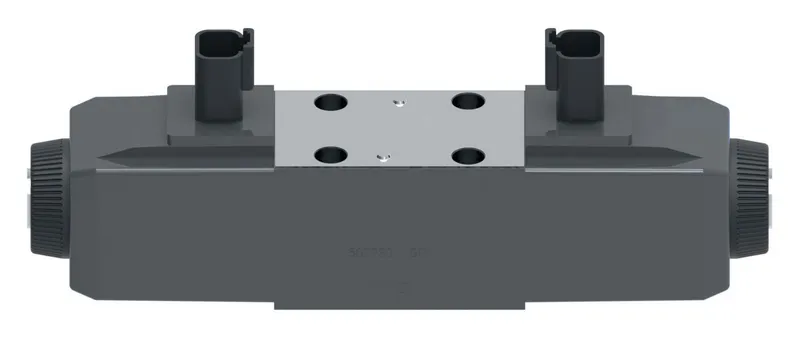

What is the Danfoss 02-353814?

Danfoss DG4V 3 8C Z VM KUP5D2 G7 61, DG4V38CZVMKUP5D2G761, manufacturer part number 02-353814. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating12 VDC
Design Series61 Series
Electrical ConnectionMoulded Deutsch connector
Energ Time45-28 ms
Flow rate upto GPM21.0
Flow rate upto LPM80.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-03
Manual overrideNone
Model Code 1DG4V38CZVMKUP5D2G761
PerformanceHigh performance
Power Consumption30 watt
Pressure rating BAR350
Pressure rating PSI5000
Product height in3.570
Product length in7.870
Product length mm199.898
Product width in1.800
Product width mm45.72
Seal typeWATER GLYCOL
Solenoid Energising IDSol A port A/Sol B port B
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 8
Spring ArrangementSpring centred
StageSingle stage
Surge Suppr DamperYes
Tank port rating BAR210.0
Tank port rating PSI3000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-353814: frequently asked questions

When can 02-353814 be shipped?

02-353814 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-353814 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-353814 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-353814, subject to availability and destination.
