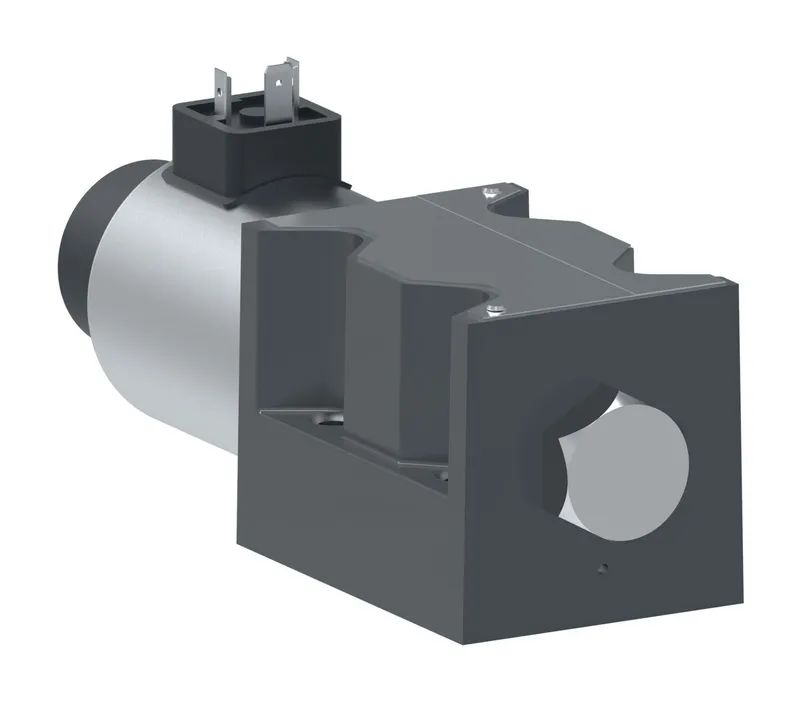

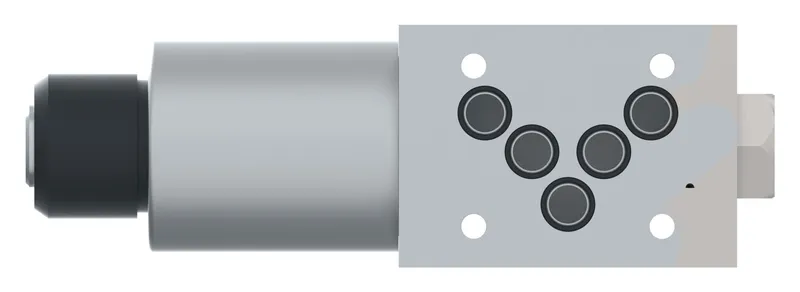

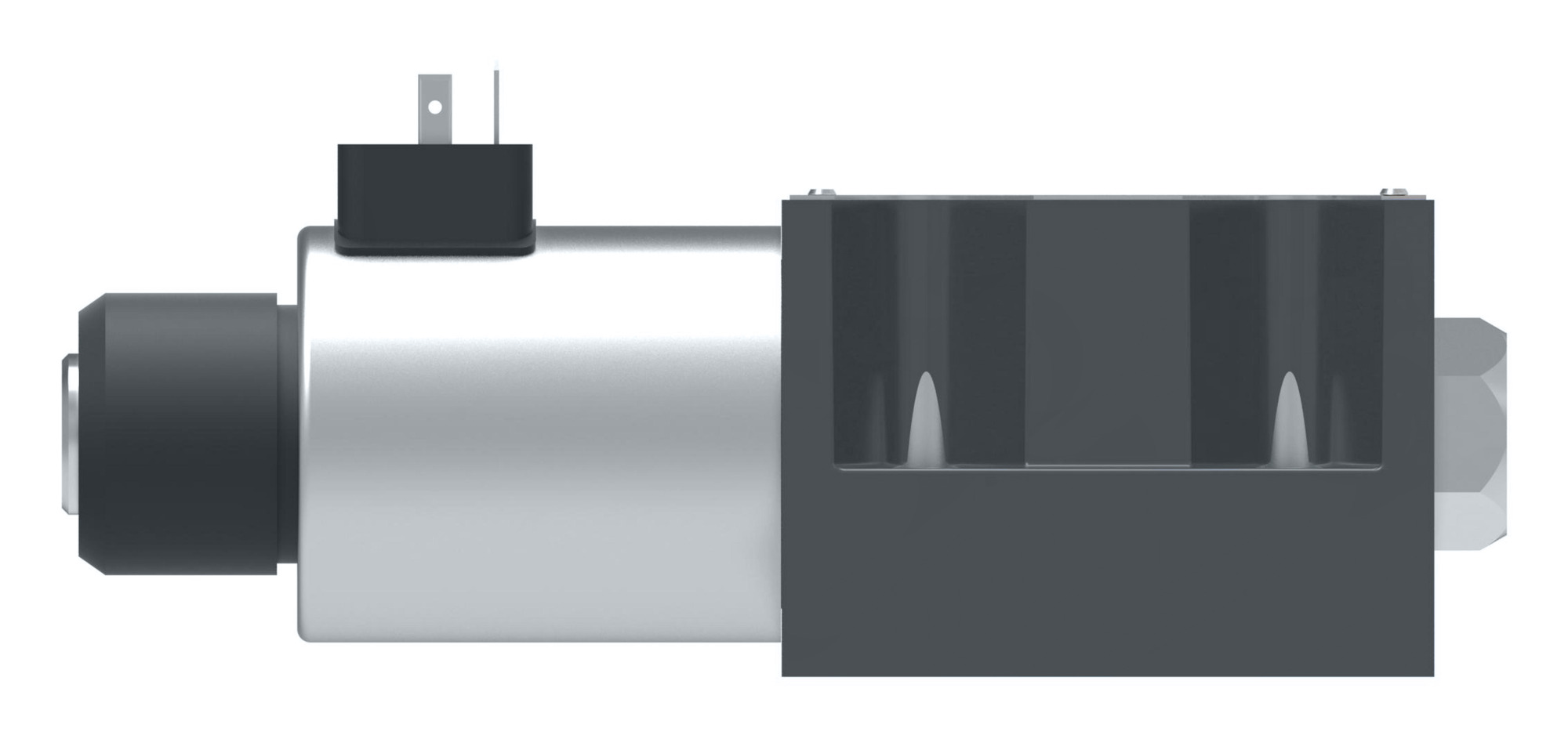

What is the Danfoss 02-352540?

Danfoss KTG4V-5-2B70N-VM-U-HA7-30, KTG4V52B70NVMUHA730, manufacturer part number 02-352540. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid controlled
B Port flow LPM70.00
B Port flow USGPM18.50
BrandVickers by Danfoss
Build orientationSolenoid 'A' at port 'A' end of valve and solenoid 'B' at port 'B' end of valve
Coil voltage24 Volt DC
Command inputNone
Communication protocolNone
Design Series30 Series
Electrical ConnectionISO 4400 (DIN 43650) connector
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-05/NFPA D05/CETOP 5/NG10
Manual overridePlain
Maximum pressure BAR315
Maximum pressure PSI4500
MeteringMeter in / meter out
Model Code 1KTG4V52B70NVMUHA730
On board electronicsNo
PerformanceStandard
Product height in4.180
Product height mm106.172
Product length in7.660
Product length mm194.564
Product width in2.760
Product width mm70.104
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresNone
Spool TypeISO4401-10/NFPA D10/CETOP 10/NG32
StageSingle stage
Symmetric flowYes
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional throttle
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
