Danfoss 02-352436

KCG 3 L350D Z M U1 HL1 10, KCG3L350DZMU1HL110

MPN
02-352436
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-352436?

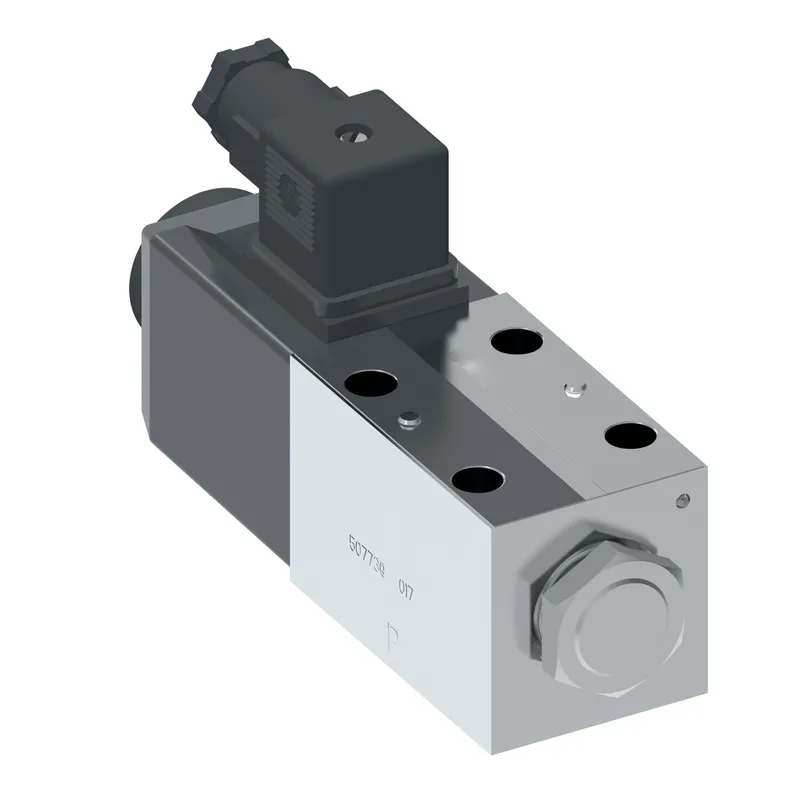

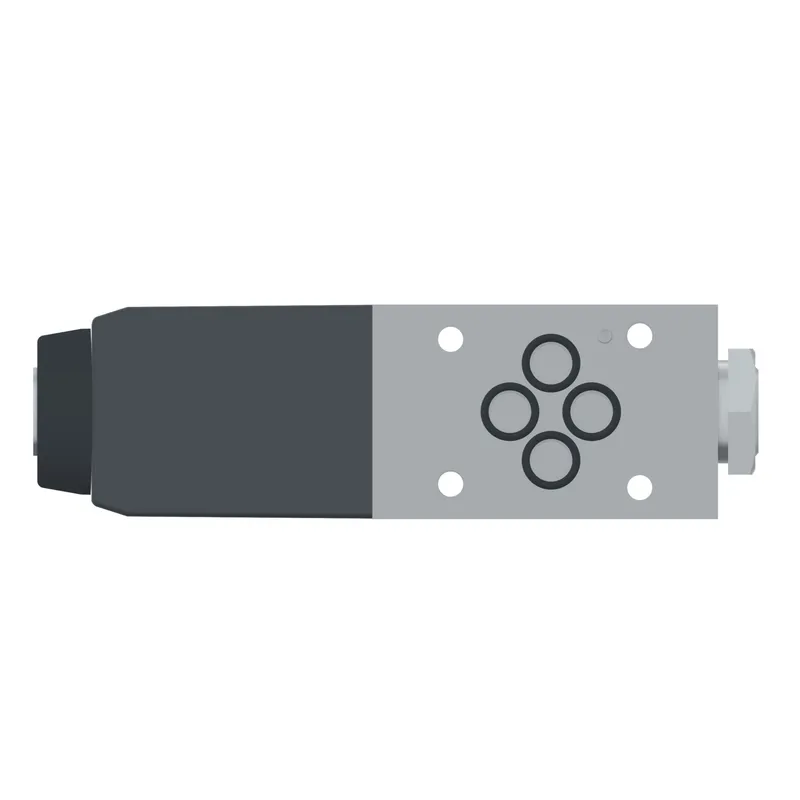

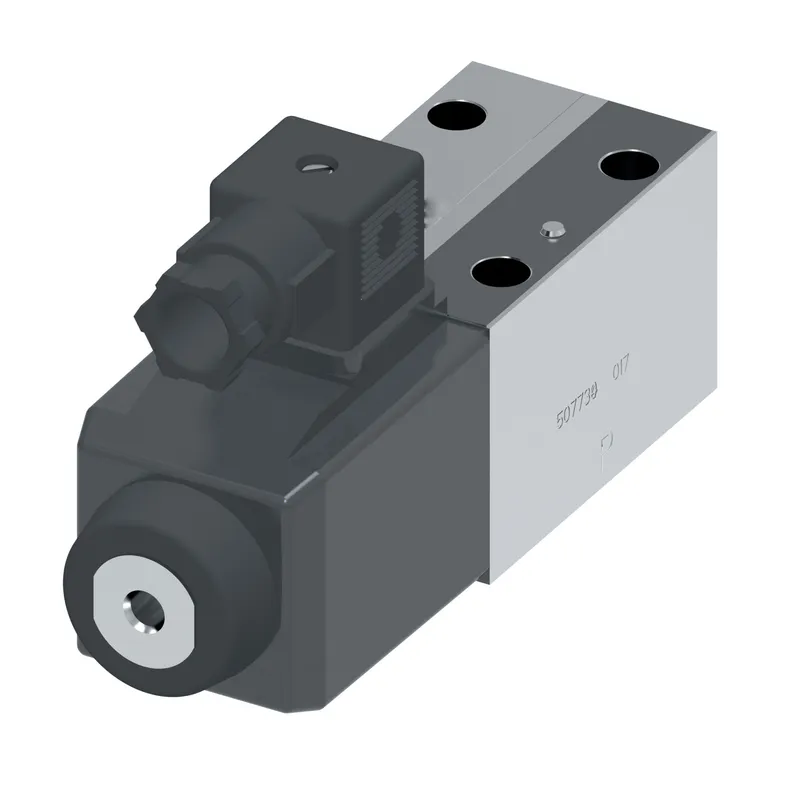

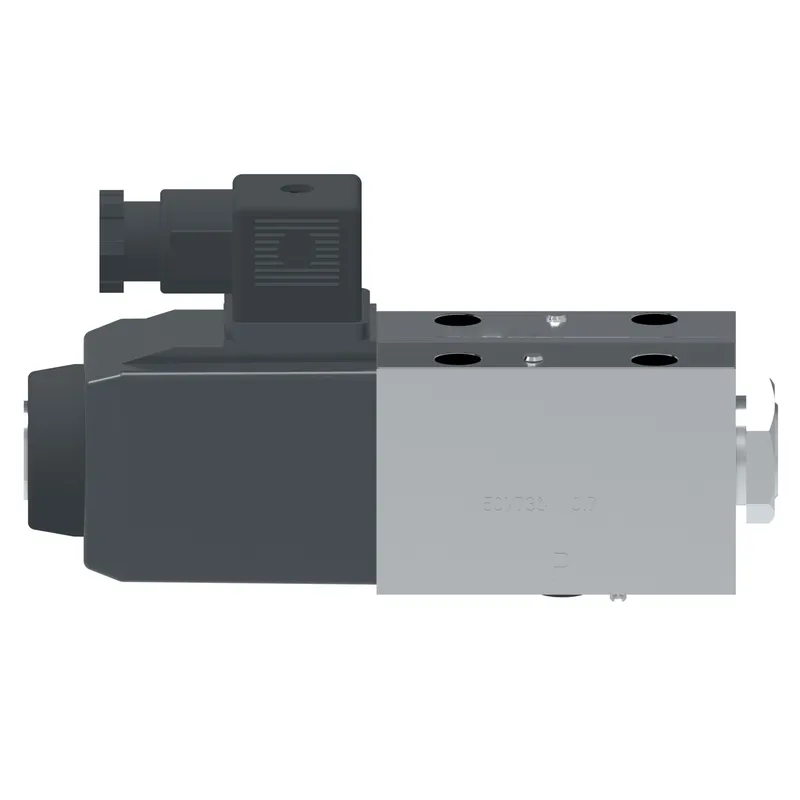

Danfoss KCG 3 L350D Z M U1 HL1 10, KCG3L350DZMU1HL110, manufacturer part number 02-352436. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid controlled
BrandVickers by Danfoss
Build orientationSolenoid at A port end
Coil voltage24 Volt DC
Command inputNone
Communication protocolNone
Design Series10 Series
Electrical ConnectionISO4400 with fitted plugs
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-03/NFPA D03/CETOP 3/NG06
Manual overrideNone
Maximum flow LPM5.0
Maximum flow USGPM1.3
Maximum pressure BAR350
Maximum pressure PSI5000
Model Code 1KCG3L350DZMU1HL110
On board electronicsNo
PerformanceStandard
Pressure range6-350 bar (87-5000 psi)
Product height in3.420
Product height mm86.868
Product length in6.280
Product length mm159.512
Product width in1.880
Product width mm47.752
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresNone
StageSingle stage
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional pressure relief
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-352436: frequently asked questions

When can 02-352436 be shipped?

02-352436 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-352436 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-352436 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-352436, subject to availability and destination.
