DGMC2 2 AT FW BT FW 10, DGMC22ATFWBTFW10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-350015 be shipped?
02-350015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-350015 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-350015 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-350015, subject to availability and destination.

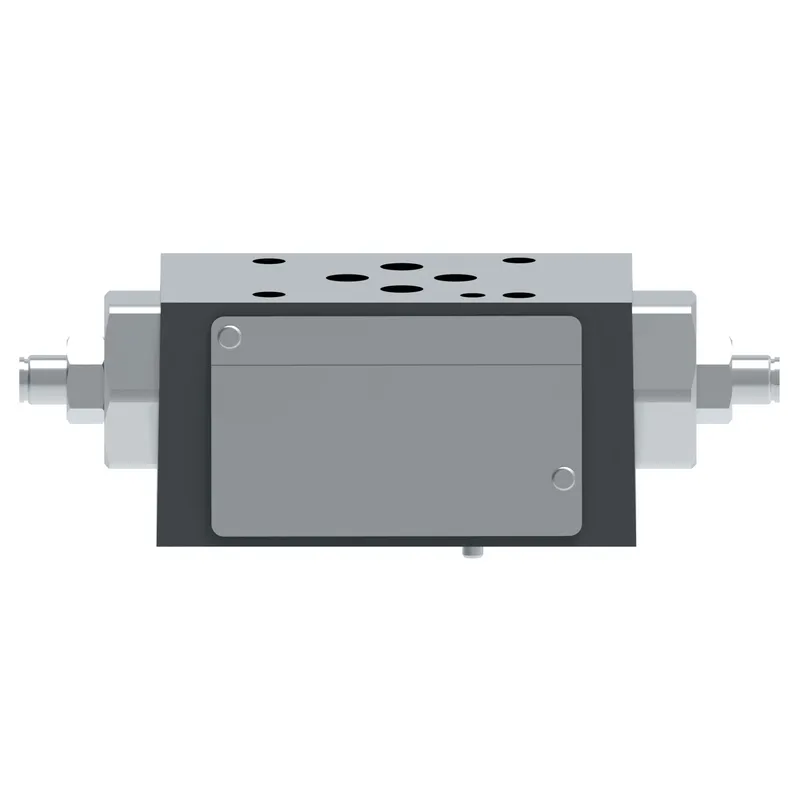

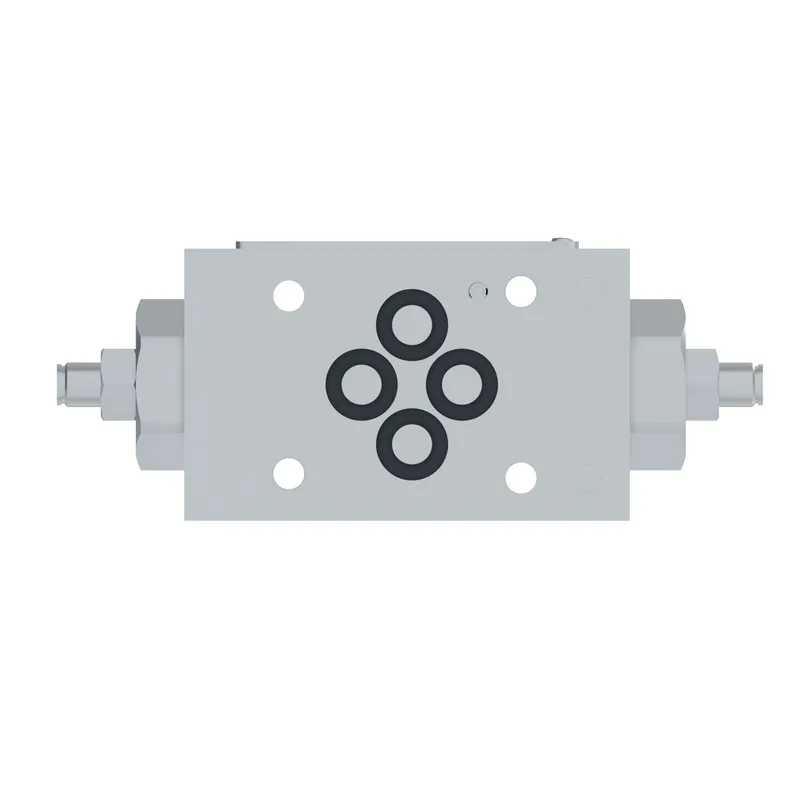

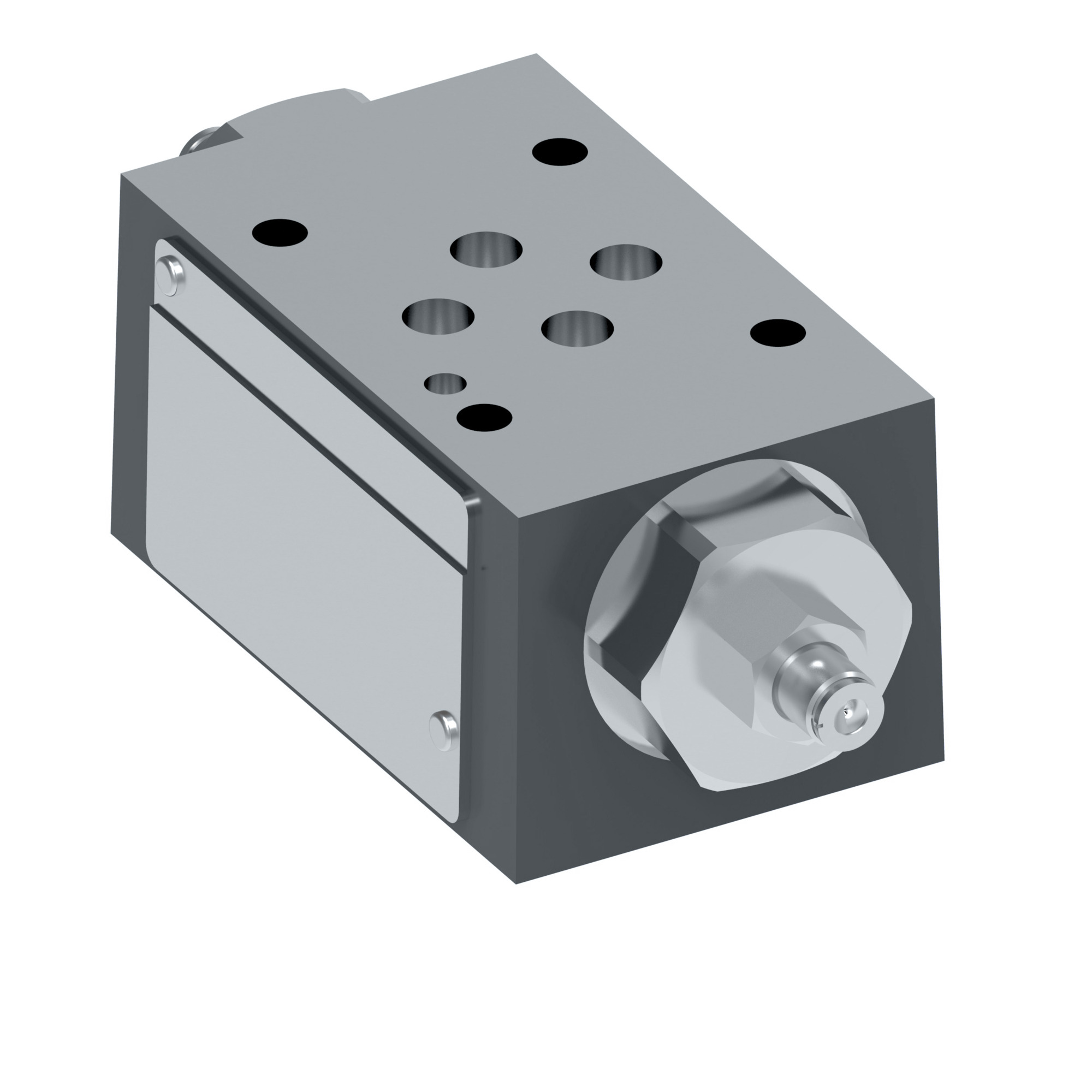

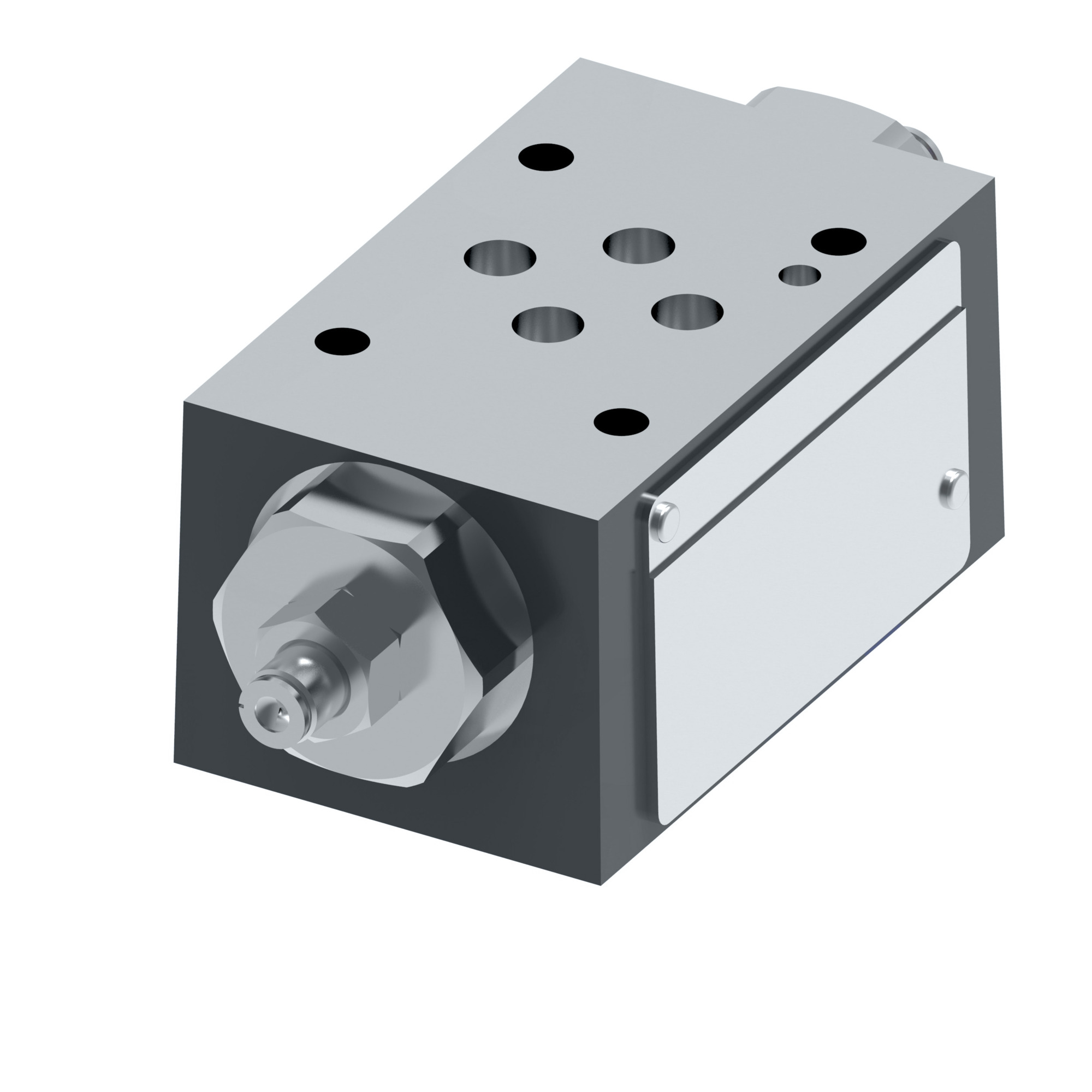

Danfoss DGMC2 2 AT FW BT FW 10, DGMC22ATFWBTFW10, manufacturer part number 02-350015. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Pressure operated |
| Adjustment type | Screw and locknut |
| Brand | Vickers by Danfoss |
| Design Series | 10 Series |
| Discharge 1 | Discharge into T |
| Discharge 2 | Discharge into T |
| First function | Pressure limited in A |
| Flow rate upto LPM | 30 |
| Flow rate upto USGPM | 7.9 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid compatibility | Petroleum oils |
| Function 1 pressure adjustment | 70-160 bar (1000-2300 psi) |
| Function 2 pressure adjustment | 70-160 bar (1000-2300 psi) |
| Interface | ISO4401-02 |
| Maximum pressure upto bar | 250 |
| Maximum pressure upto psi | 3600 |
| Model Code 1 | DGMC22ATFWBTFW10 |
| Performance | Standard |
| Product height in | 1.180 |
| Product height mm | 29.972 |
| Product length in | 10.430 |
| Product length mm | 264.922 |
| Product width in | 1.450 |
| Product width mm | 36.83 |
| Seal type | Viton |
| Second function | Pressure limited in B |
| Special features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve type | Dual relief function valve |
| Working temp max C | 70 |
| Working temp max F | 158 |
| Working temp min C | -20 |
| Working temp min F | -4 |
