Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 02-346335

Danfoss (Drives)

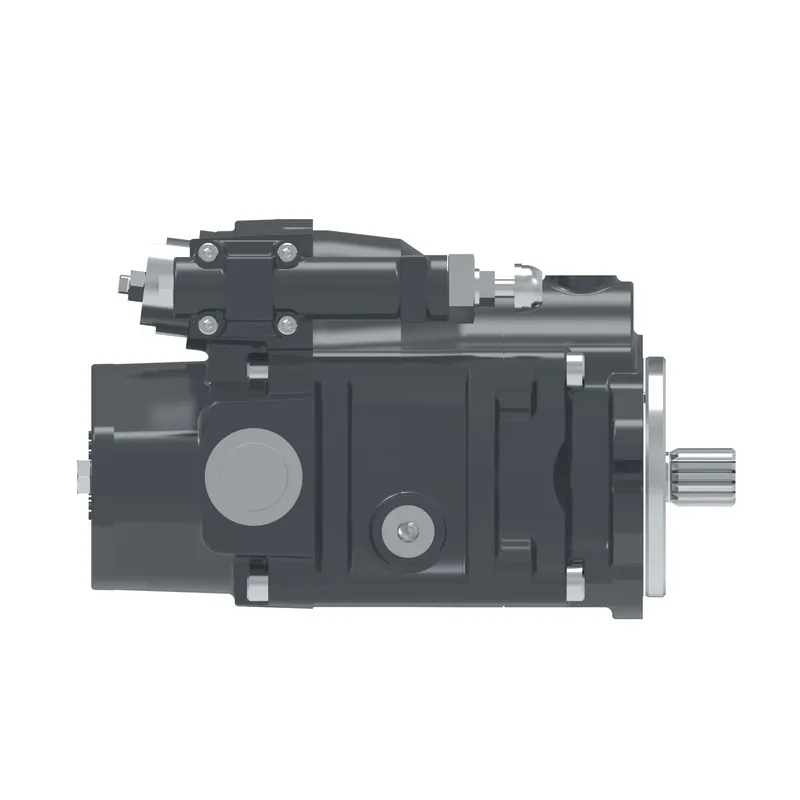

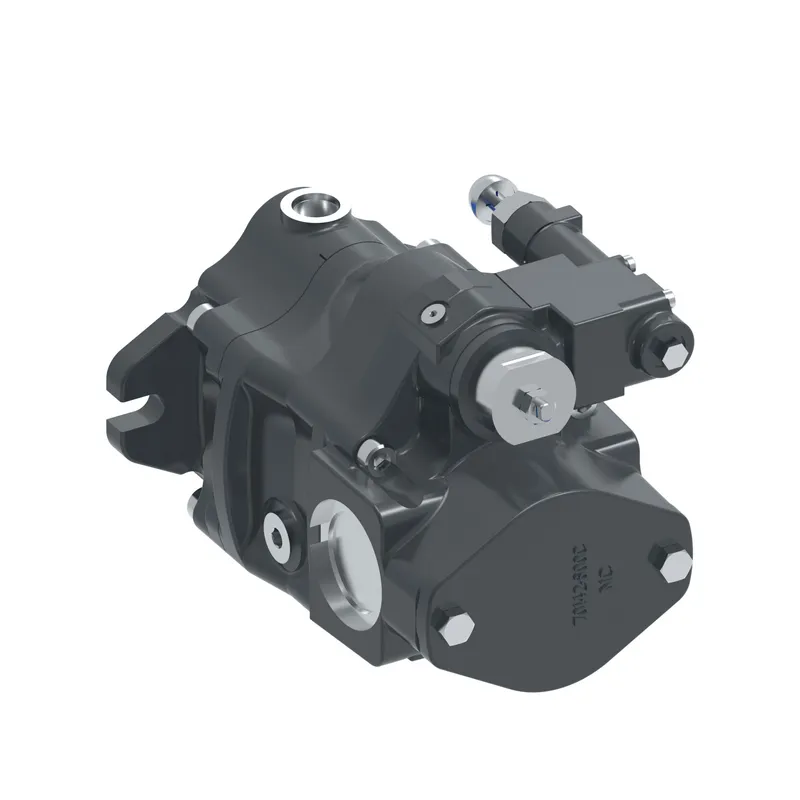

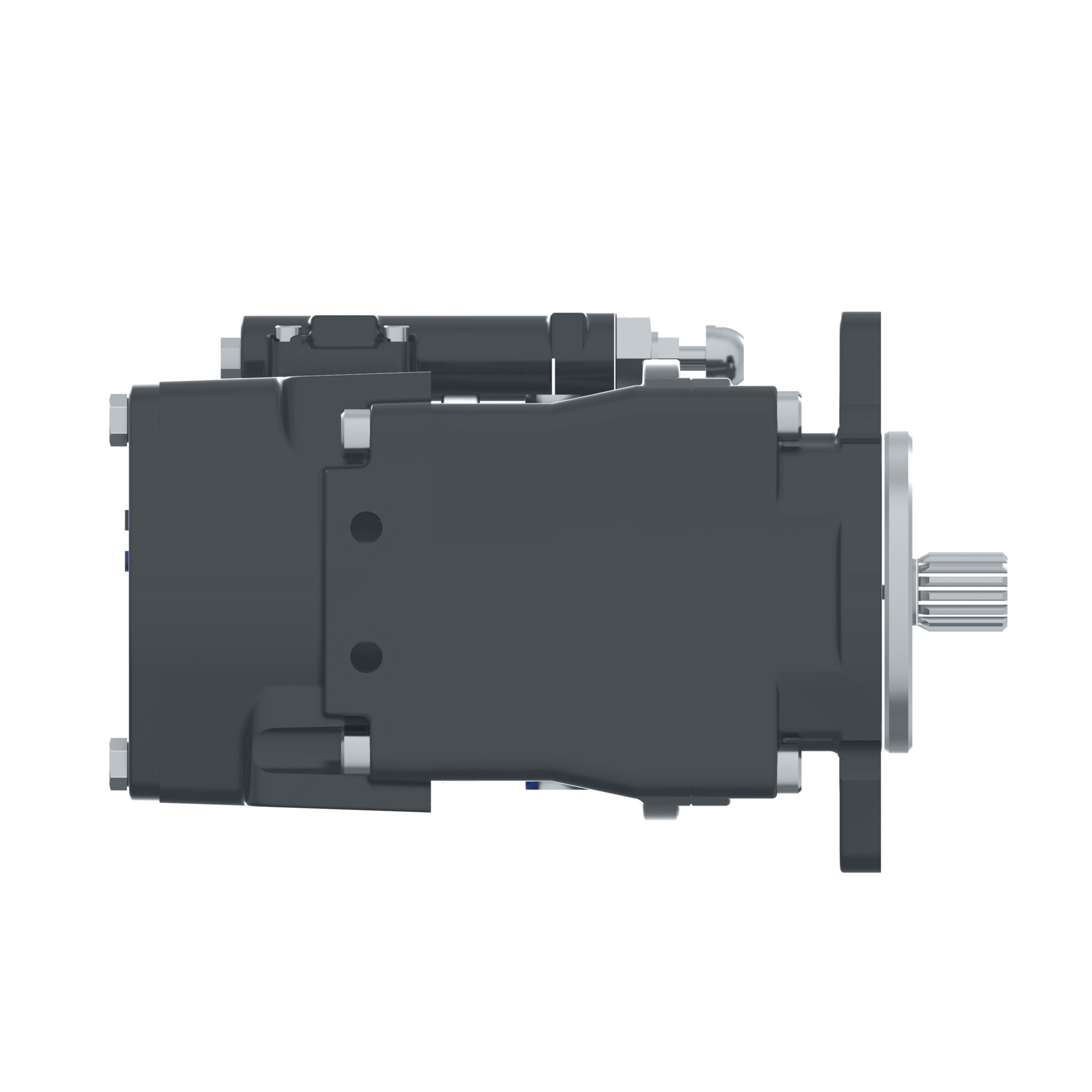

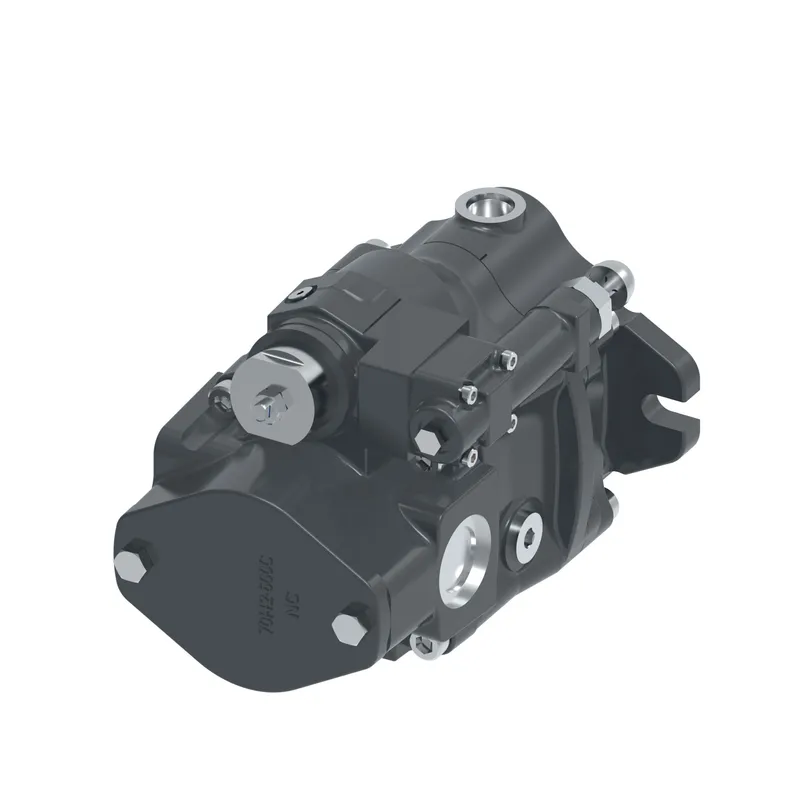

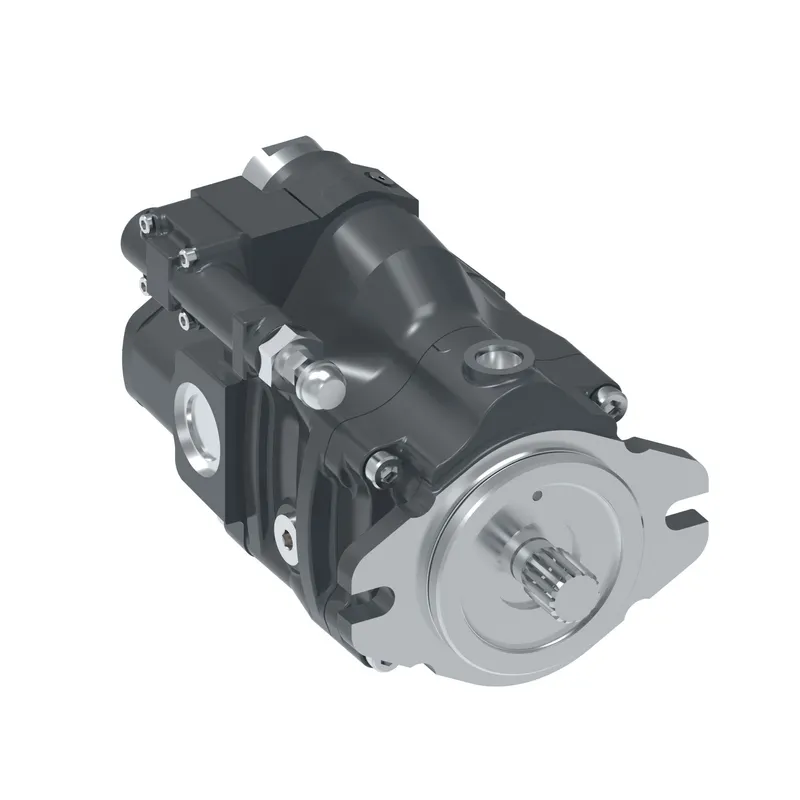

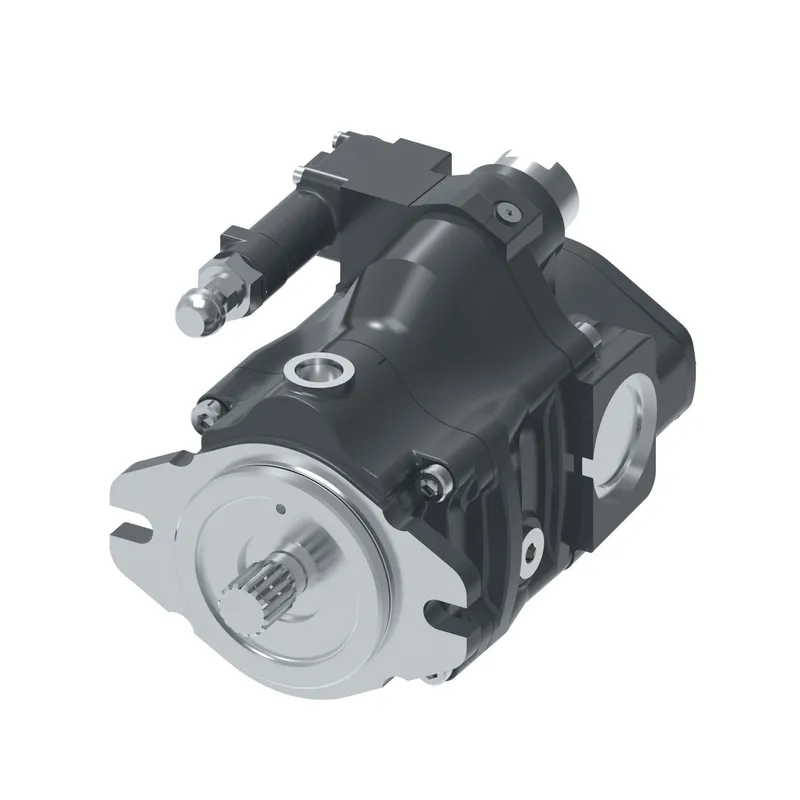

Danfoss 02-346335

PVM018ER02AE01AAA28000000A0A, PVM018ER02AE01AAA28000000A0A

MPN: 02-346335
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-346335?

Danfoss PVM018ER02AE01AAA28000000A0A, PVM018ER02AE01AAA28000000A0A, manufacturer part number 02-346335. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	18.0 cm3/r [1.1 in3/r] (280 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-19-1 SAE 19-1 STRAIGHT KEYED (MODEL 018 AND 028)
Mounting Flange	SAE J744-82-2 (A 2-BOLT) (MODEL 018 AND 028)
MAIN PORT LOCATION	END (MODELS 018,020,045,050)
PORT OPTIONS	SAE J514 TUBE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	PRESSURE COMPENSATOR
PRESSURE COMP SET	276-284 BAR [4002-4118 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	NONE
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	NONE (REAR PORT ONLY)
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 18cc Pump
Model Code 1	PVM018ER02AE01AAA28000000A0A

02-346335: frequently asked questions

When can 02-346335 be shipped?

02-346335 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-346335 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-346335 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-346335, subject to availability and destination.
