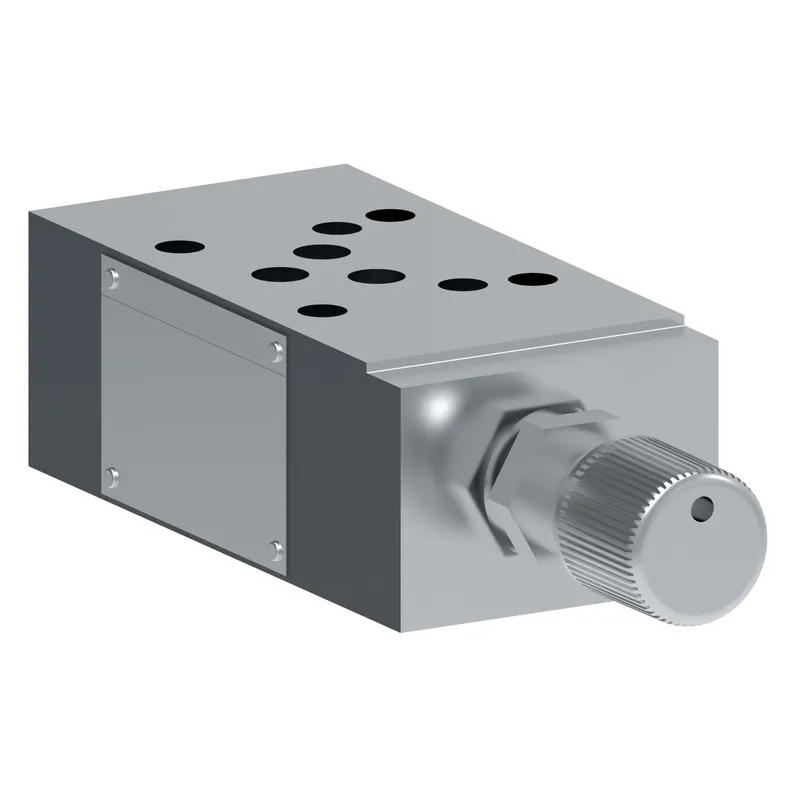

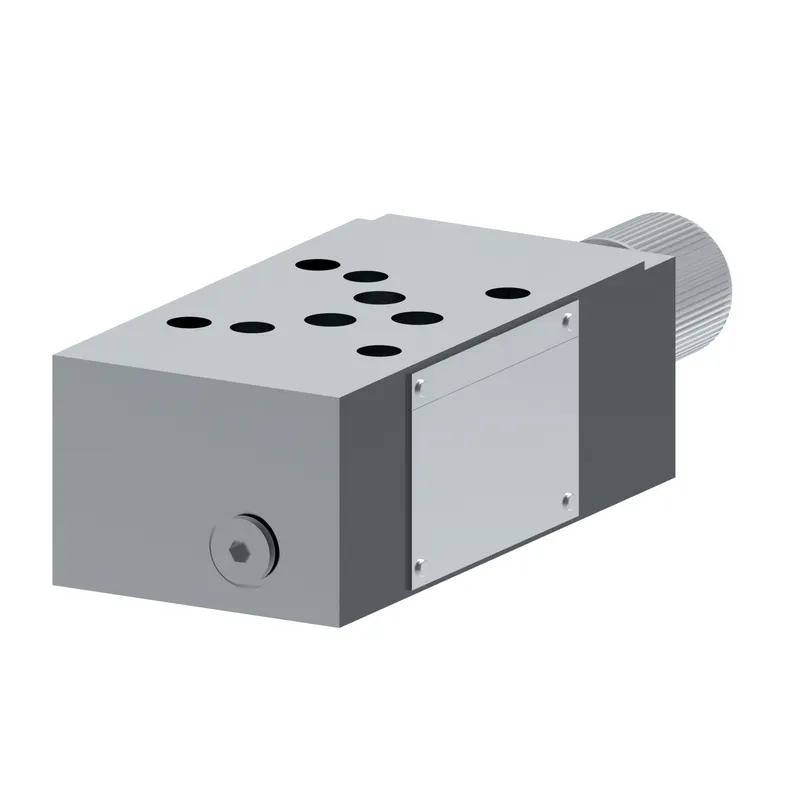

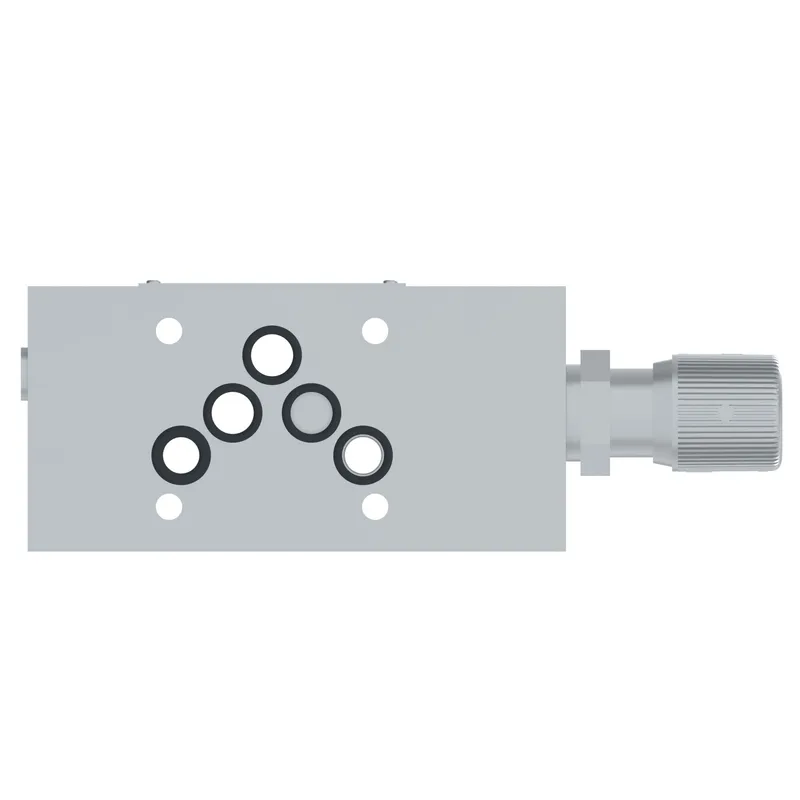

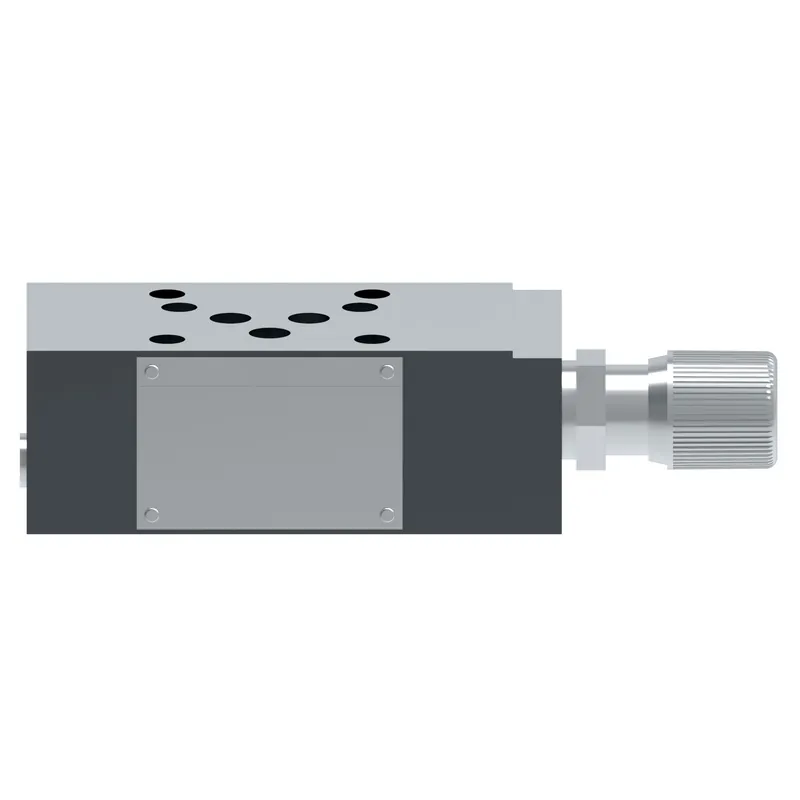

Danfoss 02-344922

DGMC 5 AT FH B 30, DGMC5ATFHB30

MPN: 02-344922
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-344922?

Danfoss DGMC 5 AT FH B 30, DGMC5ATFHB30, manufacturer part number 02-344922. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Knob adjuster
Brand	Vickers by Danfoss
Design Series	30 Series
External drain	No
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	G1/8" (1/8" BSPF)
Interface	ISO4401-05
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMC5ATFHB30
Pressure adjustment range	4-200 bar (60-2900 psi)
Product height in	1.970
Product height mm	50.038
Product length in	7.900
Product length mm	200.660
Product width in	2.820
Product width mm	71.628
Remote control port	No
Seal type	Viton
Valve Mount Type	Subplate/manifold mounted
Valve type	Single relief valve
Working temp max C	80
Working temp max F	176
Working temp min C	0
Working temp min F	32
