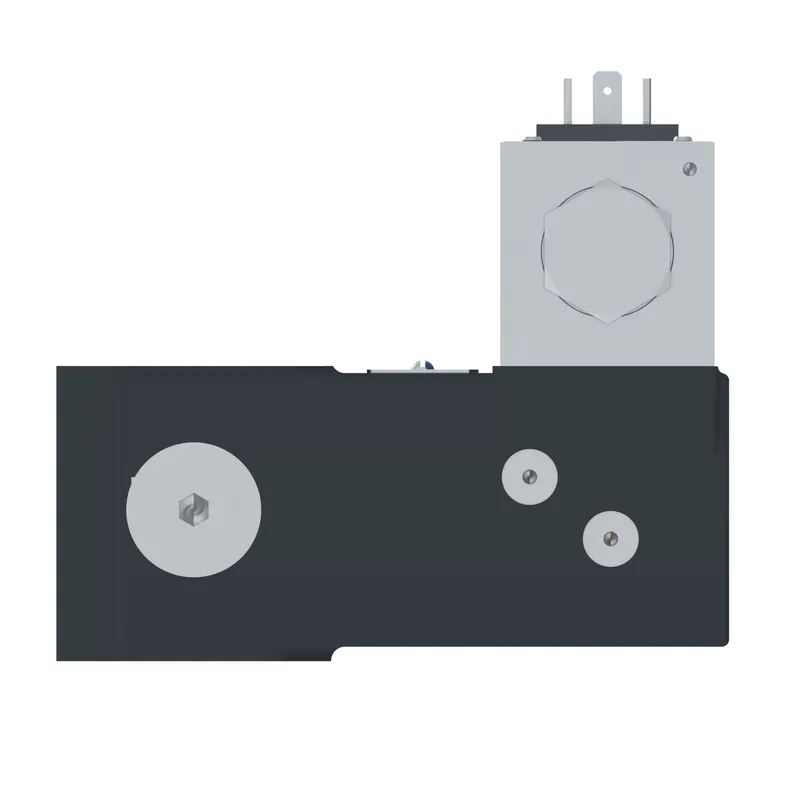

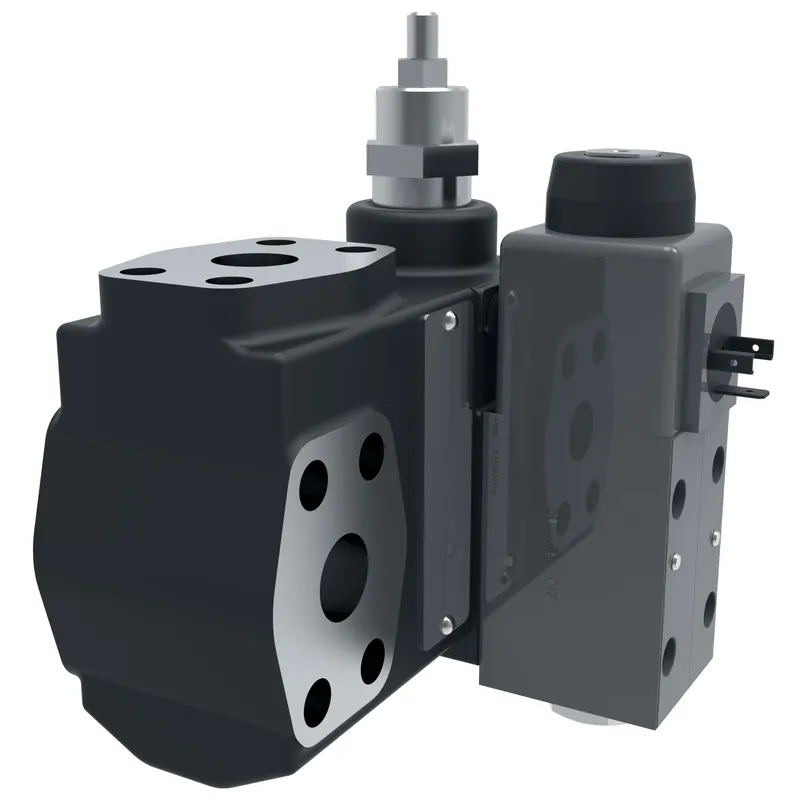

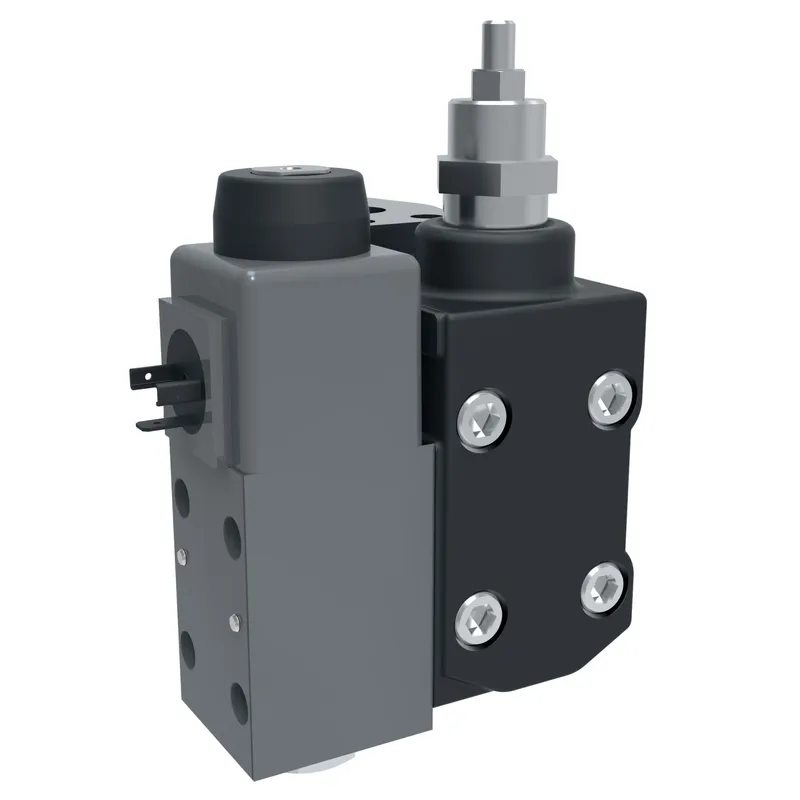

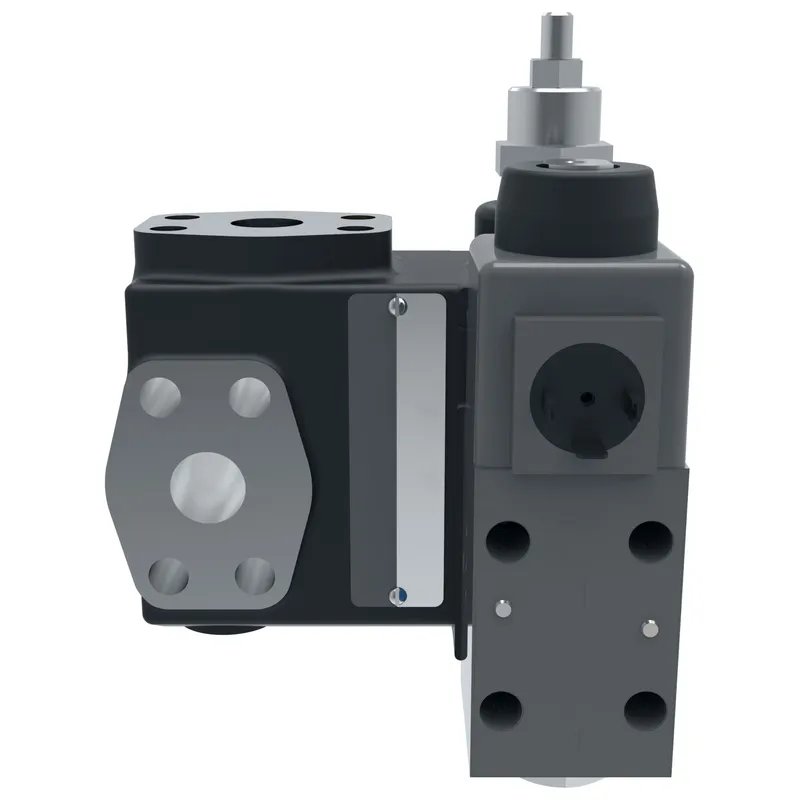

Danfoss 02-344622
CPF2S-06-F-H-3S-207-M-U6 -HH5-20-EN430, CPF2S06FH3S207MU6HH520EN430
- MPN
- 02-344622
- Category
- Industrial valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-344622?
Danfoss CPF2S-06-F-H-3S-207-M-U6 -HH5-20-EN430, CPF2S06FH3S207MU6HH520EN430, manufacturer part number 02-344622. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Solenoid operated |
| Adjustment range | 10-207 bar (145-3000 psi) |
| Adjustment type | Handknob without keylock |
| Brand | Vickers by Danfoss |
| Coil voltage | 24 VDC |
| Design Series | 20 Series |
| Drain | Internal |
| Electrical connection | ISO4400 fitted plugs w/lights |
| Flow rate lpm | 100.0 |
| Flow rate USGPM | 26.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid compatibility | Petroleum oils |
| Gauge port thread | G 1/4 BSP thd |
| Hi-vent spring | No |
| Indicator Light | No |
| Manual override | Plain |
| Maximum pressure BAR | 275 |
| Maximum pressure PSI | 4000 |
| Model Code 1 | CPF2S06FH3S207MU6HH520EN430 |
| Performance | Standard |
| Product height in | 7.450 |
| Product height mm | 189.230 |
| Product length in | 5.500 |
| Product length mm | 139.700 |
| Product width in | 2.500 |
| Product width mm | 63.5 |
| Seal material | Nitrile |
| Size | SAE 3/4" |
| Special feature | Soft shift pilot valve |
| Stage | Two stage |
| Tank pressure bar | 210 |
| Tank pressure PSI | 3000 |
| Valve Mount Type | Flange mounted |
| Valve type | Relief single pressure with vent |
| Working temperature max C | 80 |
| Working temperature max F | 176 |
| Working temperature min C | -20 |
| Working temperature min F | -4 |
02-344622: frequently asked questions
When can 02-344622 be shipped?
02-344622 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-344622 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-344622 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-344622, subject to availability and destination.
