Danfoss 02-342642

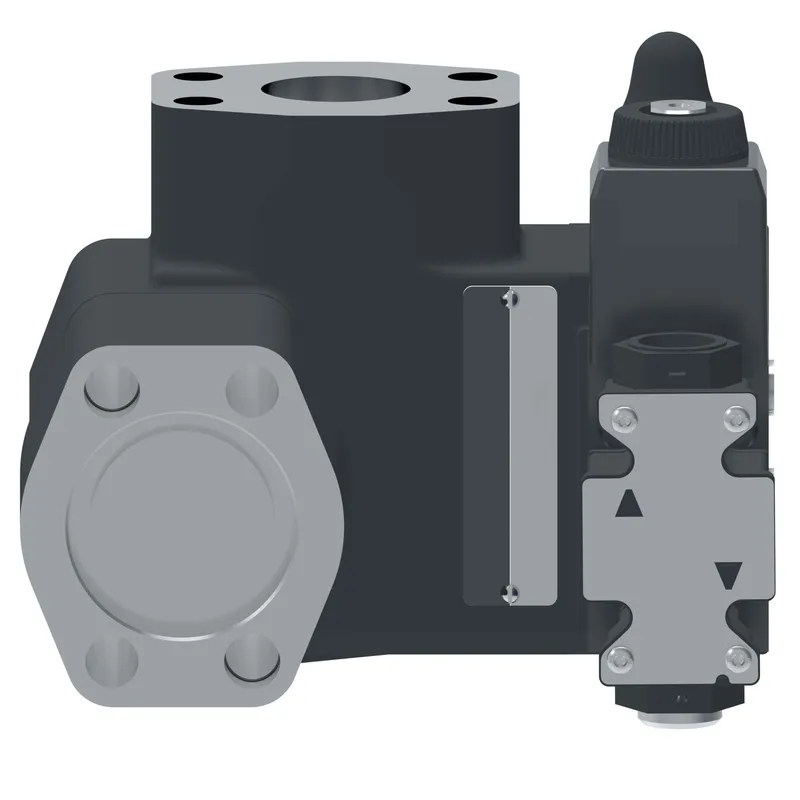

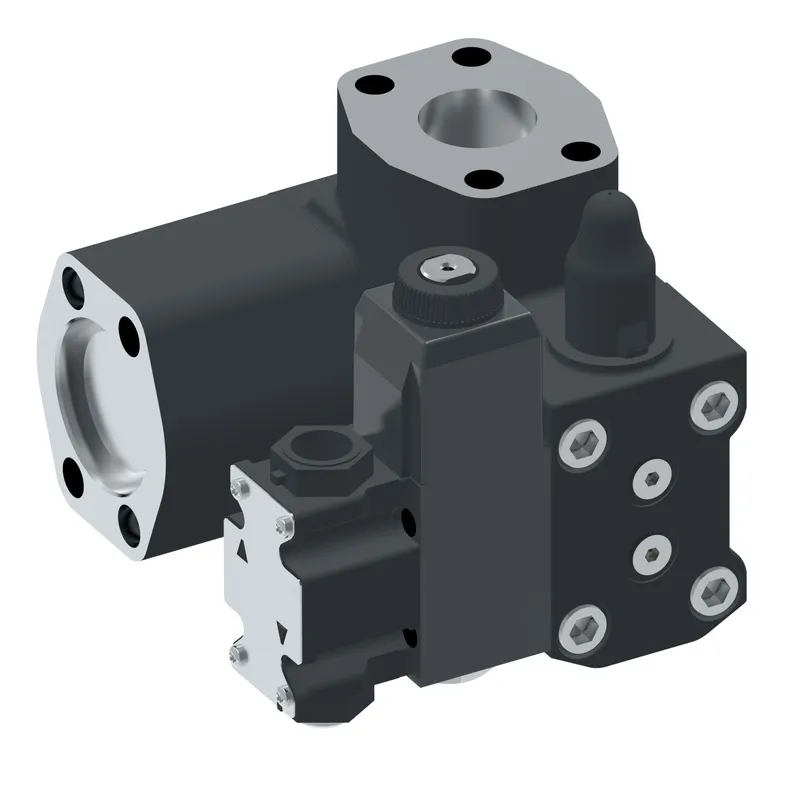

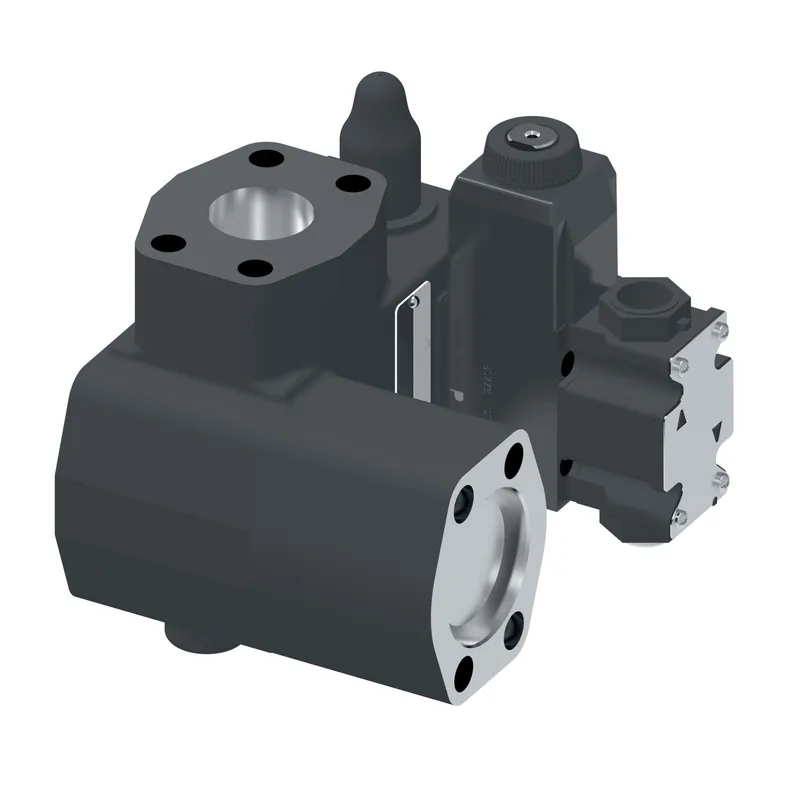

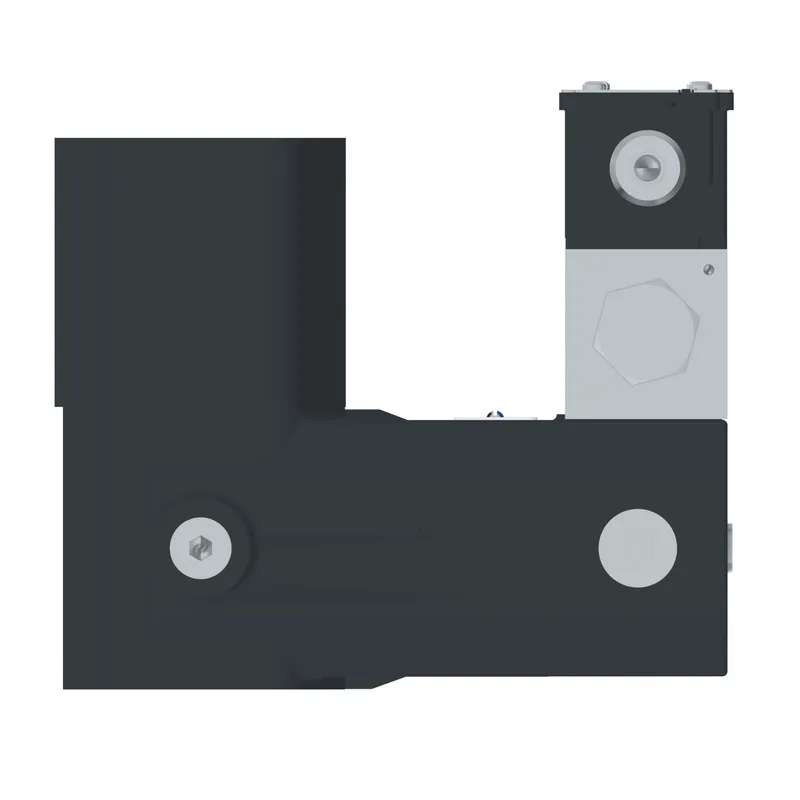

UPF2S-C-12-F-W-3-M-FTW-B L6-20, UPF2SC12FW3MFTWBL620

MPN: 02-342642
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-342642?

Danfoss UPF2S-C-12-F-W-3-M-FTW-B L6-20, UPF2SC12FW3MFTWBL620, manufacturer part number 02-342642. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Adjustment range	9-245 bar (130-3600 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Check valve	Yes
Cracking pressure bar	0.3
Cracking pressure PSI	5
Design Series	20 Series
Electrical connection	Fly.lead term. block 1/2" NPT
Flow rate lpm	600.0
Flow rate USGPM	160.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	No
Indicator Light	No
Manual override	Plain
Maximum pressure BAR	275
Maximum pressure PSI	4000
Model Code 1	UPF2SC12FW3MFTWBL620
Performance	Standard
Product height in	6.770
Product height mm	171.958
Product length in	7.490
Product length mm	190.246
Product width in	8.880
Product width mm	225.552
Seal material	Nitrile
Size	SAE 1 1/2"
Special feature	None
Stage	Two stage
Tank pressure bar	210
Tank pressure PSI	3000
Valve Mount Type	Pump flange mounting
Valve type	Unloading relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
