Danfoss 02-342419

DG3V-8-9-2-10 VALVE, DG3V89210

MPN: 02-342419
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

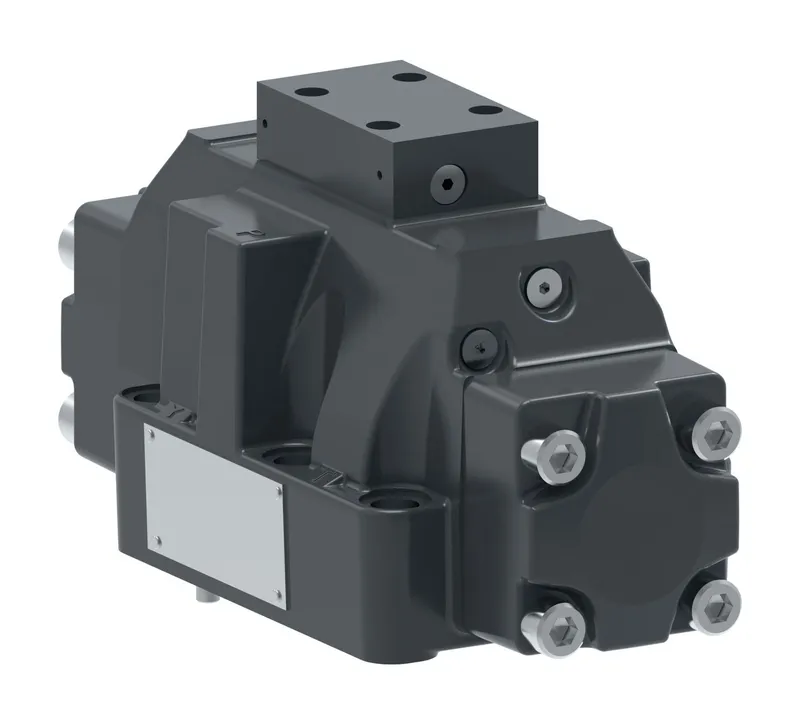

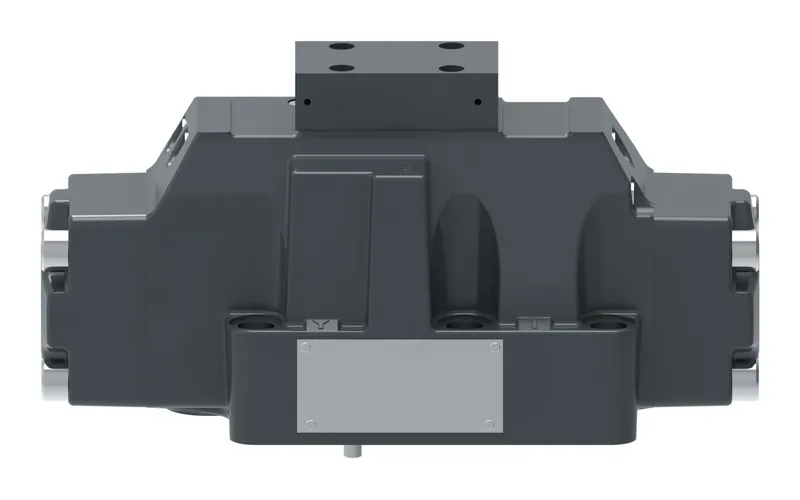

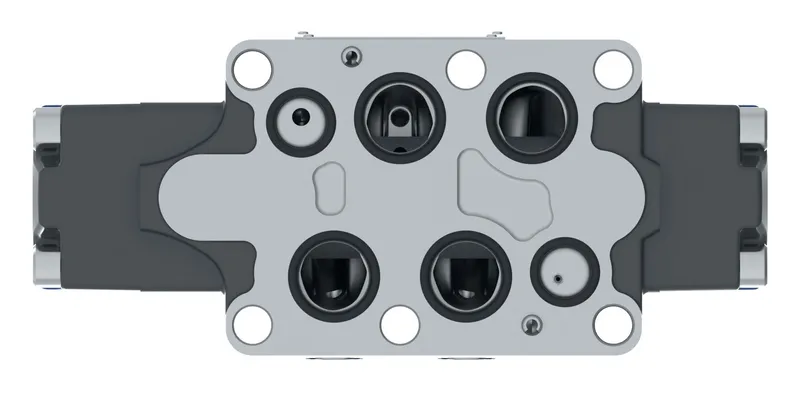

What is the Danfoss 02-342419?

Danfoss DG3V-8-9-2-10 VALVE, DG3V89210, manufacturer part number 02-342419. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Hydraulic operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	10 Series
Electrical Connection	None
Ext pilot pressure	External
Flow rate upto GPM	185.0
Flow rate upto LPM	700.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-08
Manual override	None
Model Code 1	DG3V89210
Performance	High performance
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	5.230
Product length in	8.180
Product length mm	207.772
Product width in	4.670
Product width mm	118.618
Seal type	Buna-N
Solenoid Energising ID	None
Special features	None
Spool Control	Pilot choke adjustment
Spool Position Monitor	No
Spool Type	Spool 9
Spring Arrangement	No spring
Stage	Two stage
Surge Suppr Damper	No
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-342419: frequently asked questions

When can 02-342419 be shipped?

02-342419 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-342419 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-342419 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-342419, subject to availability and destination.
