Danfoss (Drives)

Danfoss 02-341723

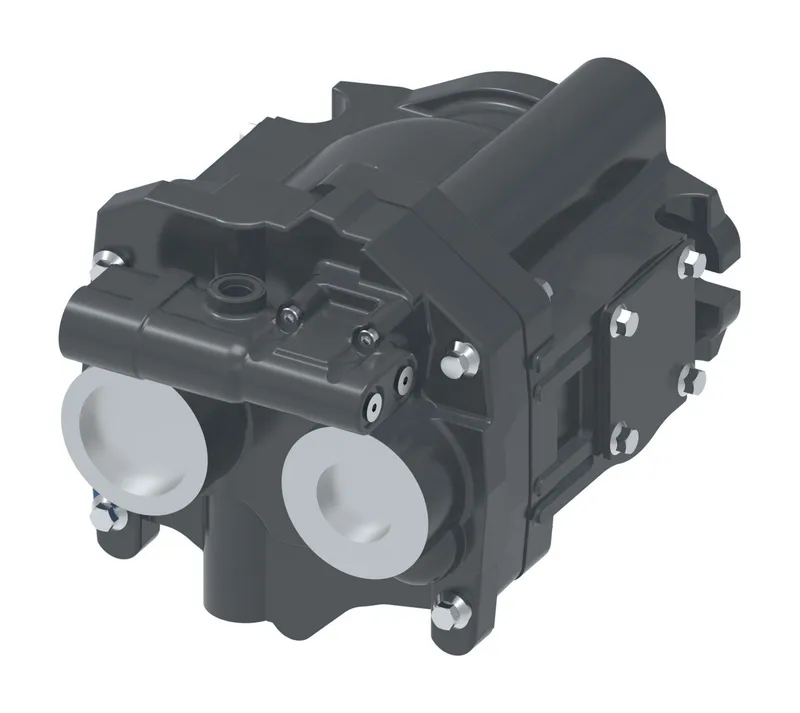

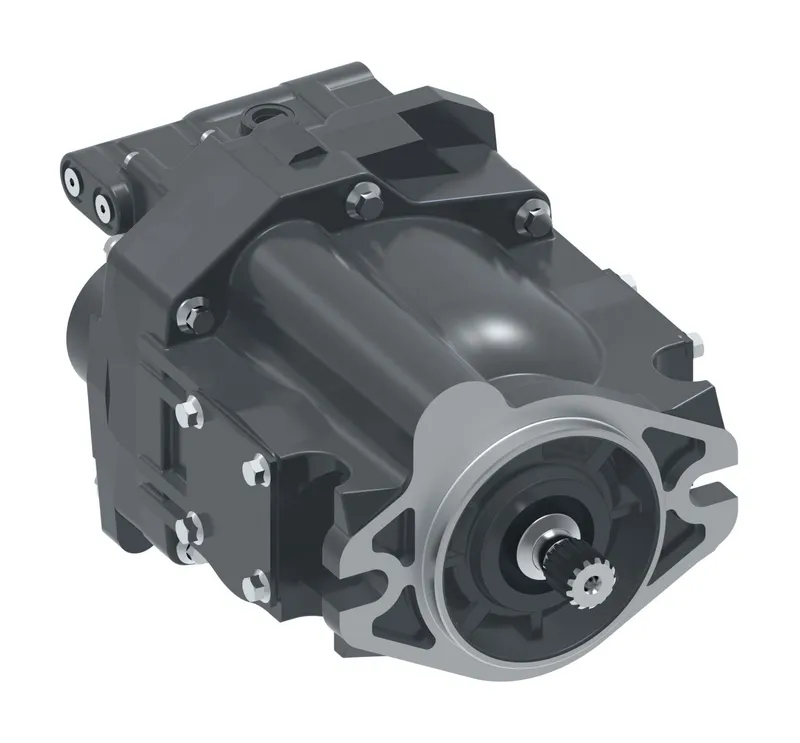

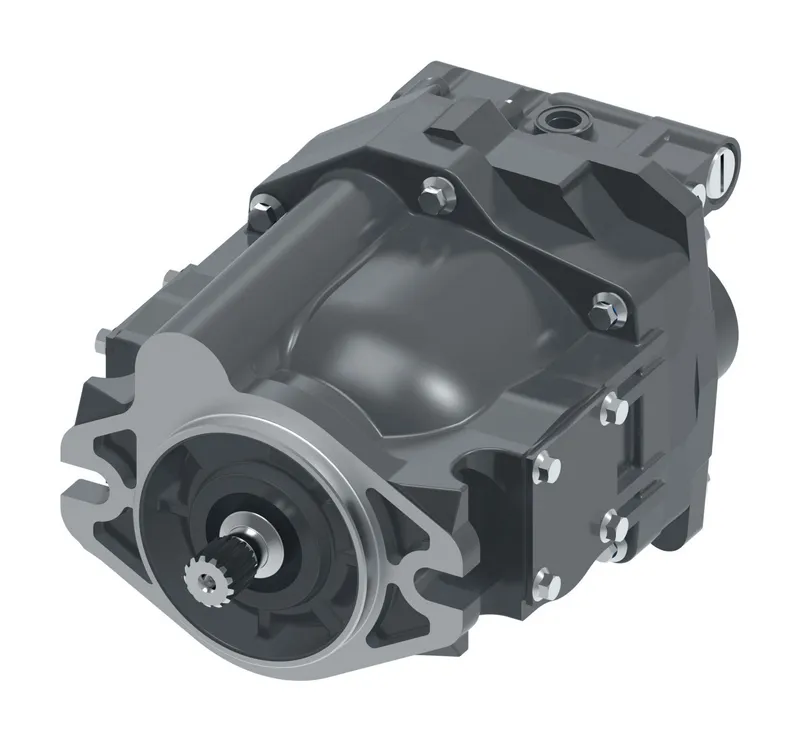

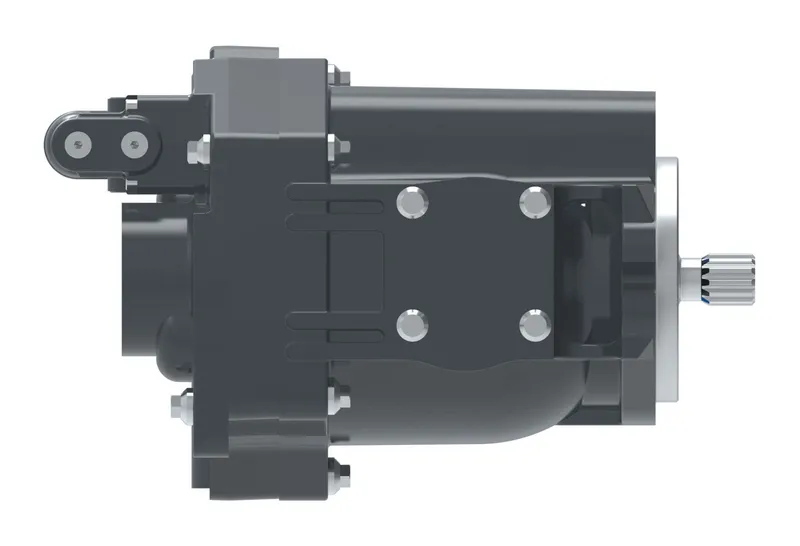

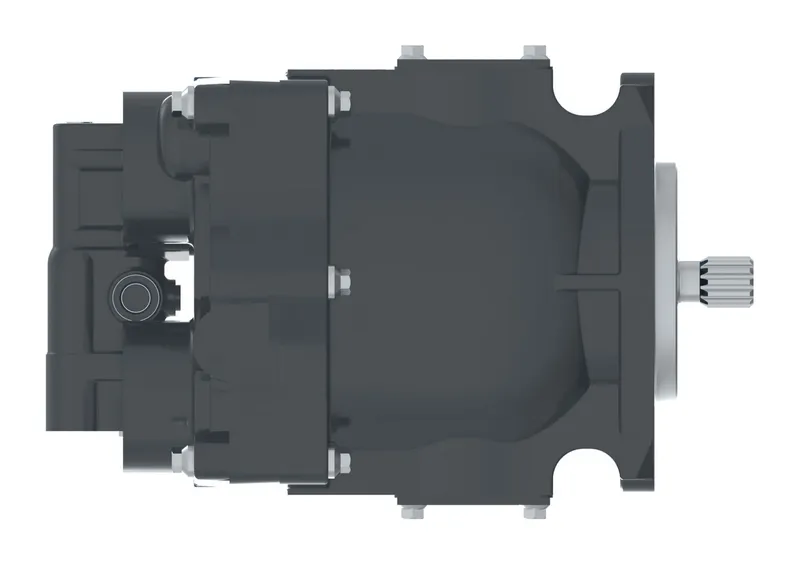

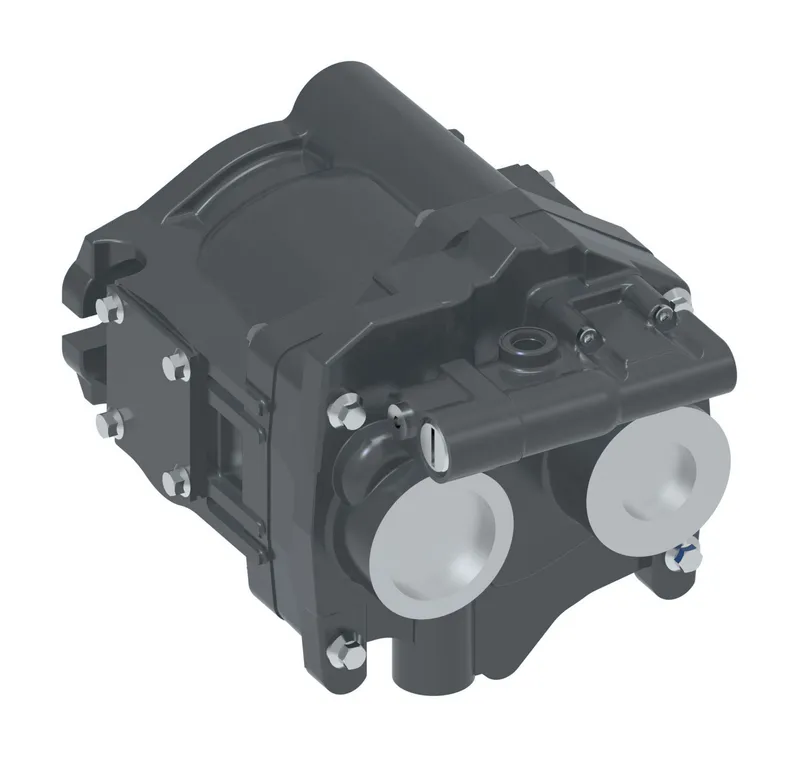

PVB15-RSY-41-CMC-12, PVB15-RSY-41-CMC-12

MPN: 02-341723
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-341723?

Danfoss PVB15-RSY-41-CMC-12, PVB15-RSY-41-CMC-12, manufacturer part number 02-341723. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

BASIC MODELS	VARIABLE DISPLACEMENT TYPE
DISPLACEMENT	33,00 cm3/r (2.01 in3/r)
RO(VIEWING SHAFT END)	CLOCKWISE
DISPLACEMENT ZONE	ONE SIDE OF CENTER (PRESSURE COMPENSATED MODELS ONLY)
Shaft type	SAE MODELS P*B5 TO 15 ONLY. OMIT FOR 20 THRU 90 MODELS
PUMP DESIGN NUMBER	41-PUMP DESIGN NUMBER
DISPLACEMENT CONTROL OPTIONS	PRESSURE COMPENSATOR. OPTION FOR ALL SIZES EXCEPT PVB90. PRESSURE ADJUSTMENT RANGE: PVB45: 10 TO 100 BAR (150 TO 1500 PSI), ALLOTHER SIZES: (17 TO 100 BAR (250 TO 1500 PSI)
MAX DISPLACEMENT ADJUSTMENT	“C” OR “CM” COMPENSATOR
CONTROL DESIGN NUMBER	“CVP” CONTROL.
IPM FRAME SIZE	PVB 33cc Pump
Model Code 1	PVB15-RSY-41-CMC-12
