Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 02-341554

Danfoss (Drives)

Danfoss 02-341554

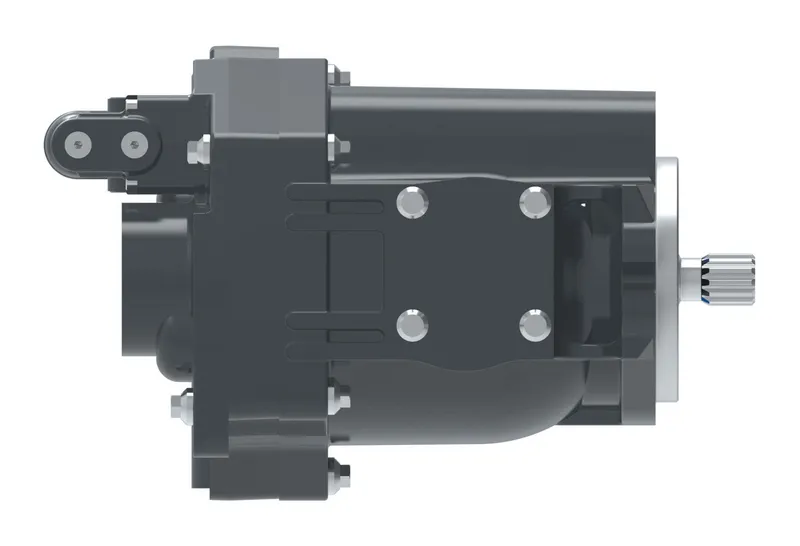

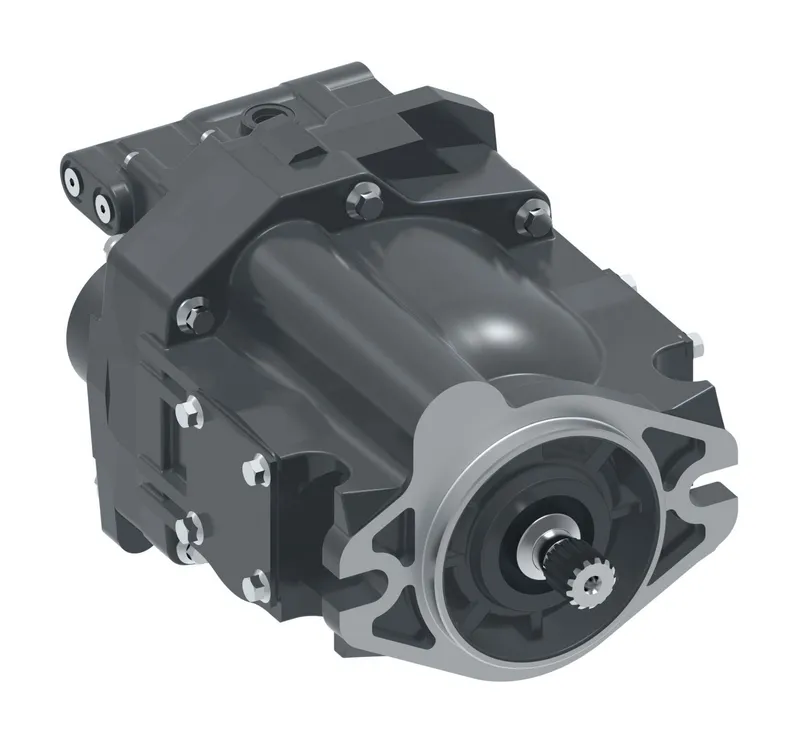

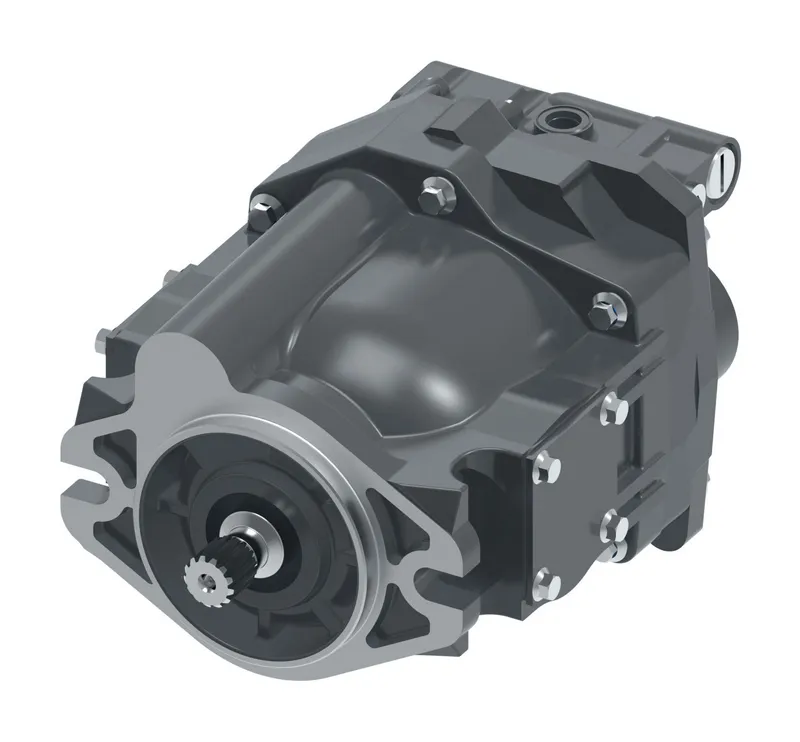

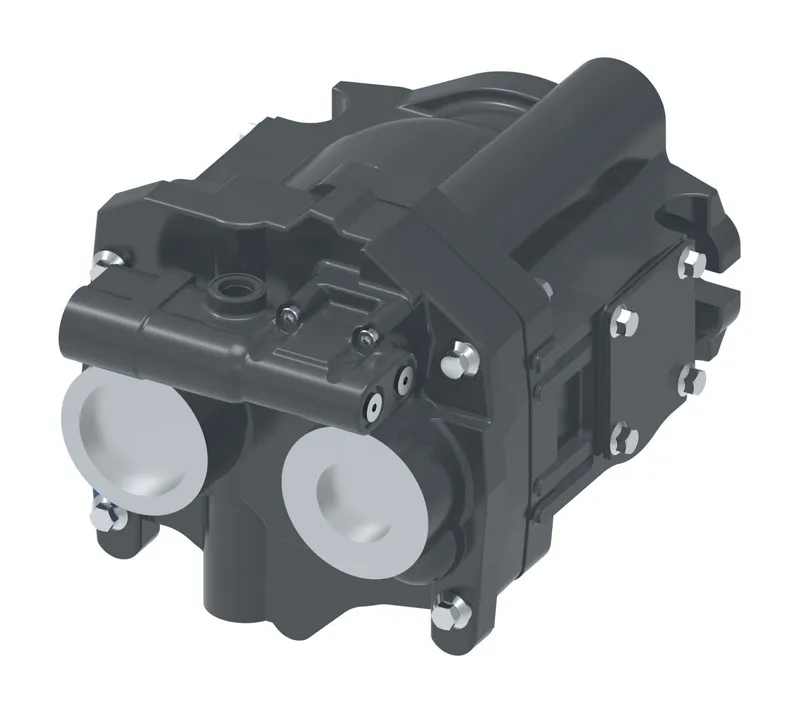

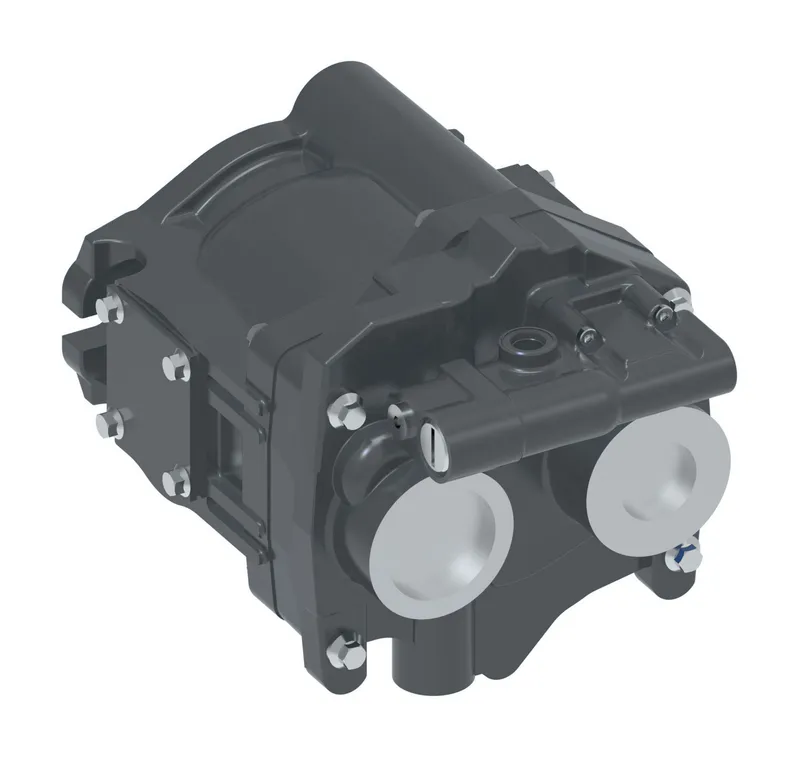

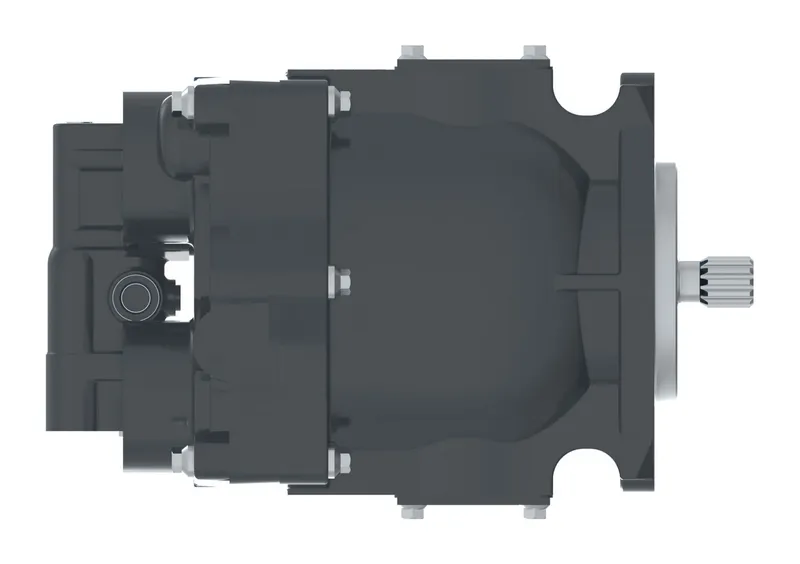

PVQ20-B2R-SE1S-21-C21D-12-S2, PVQ20-B2R-SE1S-21-C21D-12-S2

MPN: 02-341554
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-341554?

Danfoss PVQ20-B2R-SE1S-21-C21D-12-S2, PVQ20-B2R-SE1S-21-C21D-12-S2, manufacturer part number 02-341554. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	INLINE PISTON PUMP WITH VARIABLE VOLUME, QUIET SERIES
DISPLACEMENT	21,1 CC/REV (1.29 cir), 210 BAR (3000 PSI)
Mounting Flange	SAE "B" 2 BOLT
ROTATION (VIEWED FROM S END)	RIGHT HAND (CW)
THRU-DRIVE WITHOUT COUPLING	NO THRU-DRIVE
PORT TYPE AND LOCATION	SAE O-RING REAR PORT, 1.625” INLET AND OUTLET (STANDARD)
INPUT SHAFT	STRAIGHT KEYED SAE “B” MODIFIED, 2.31'' LONG
SEALS	BUNA N, STANDARD
PUMP DESIGN NUMBER	21-DESIGN NUMBER
CONTROL_TYPE	PRESSURE COMPENSATOR; INDICATING SETTING OF 210 BAR (3000 PSI); RANGE IS 02-21 IN TENS OF BAR (350-3000 PSI)
CONTROL OPTION	ADJUSTABLE MAXIMUM DISPLACEMENT STOP (OPTIONAL)
CONTROL DESIGN	C14, C21, CM7, CD AND CMD
SPECIAL PUMP OPTION SUFFIXES	SHAFT UP MOUNTING
Brand	Vickers by Danfoss
IPM FRAME SIZE	PVQ 20cc Pump
Model Code 1	PVQ20-B2R-SE1S-21-C21D-12-S2

02-341554: frequently asked questions

When can 02-341554 be shipped?

02-341554 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-341554 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-341554 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-341554, subject to availability and destination.
