Danfoss 02-339459

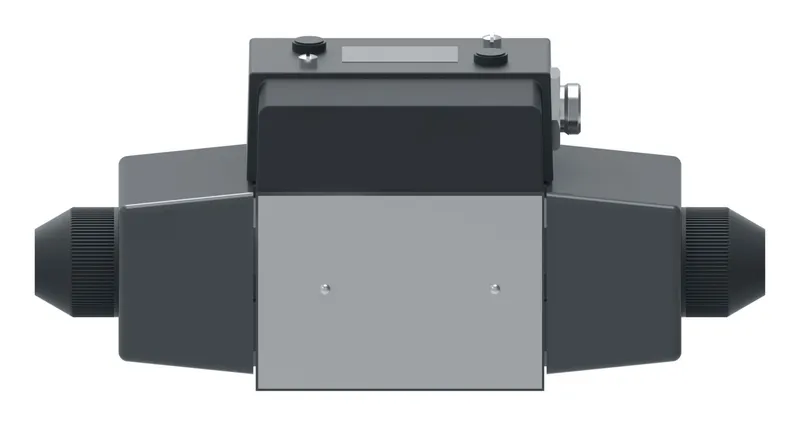

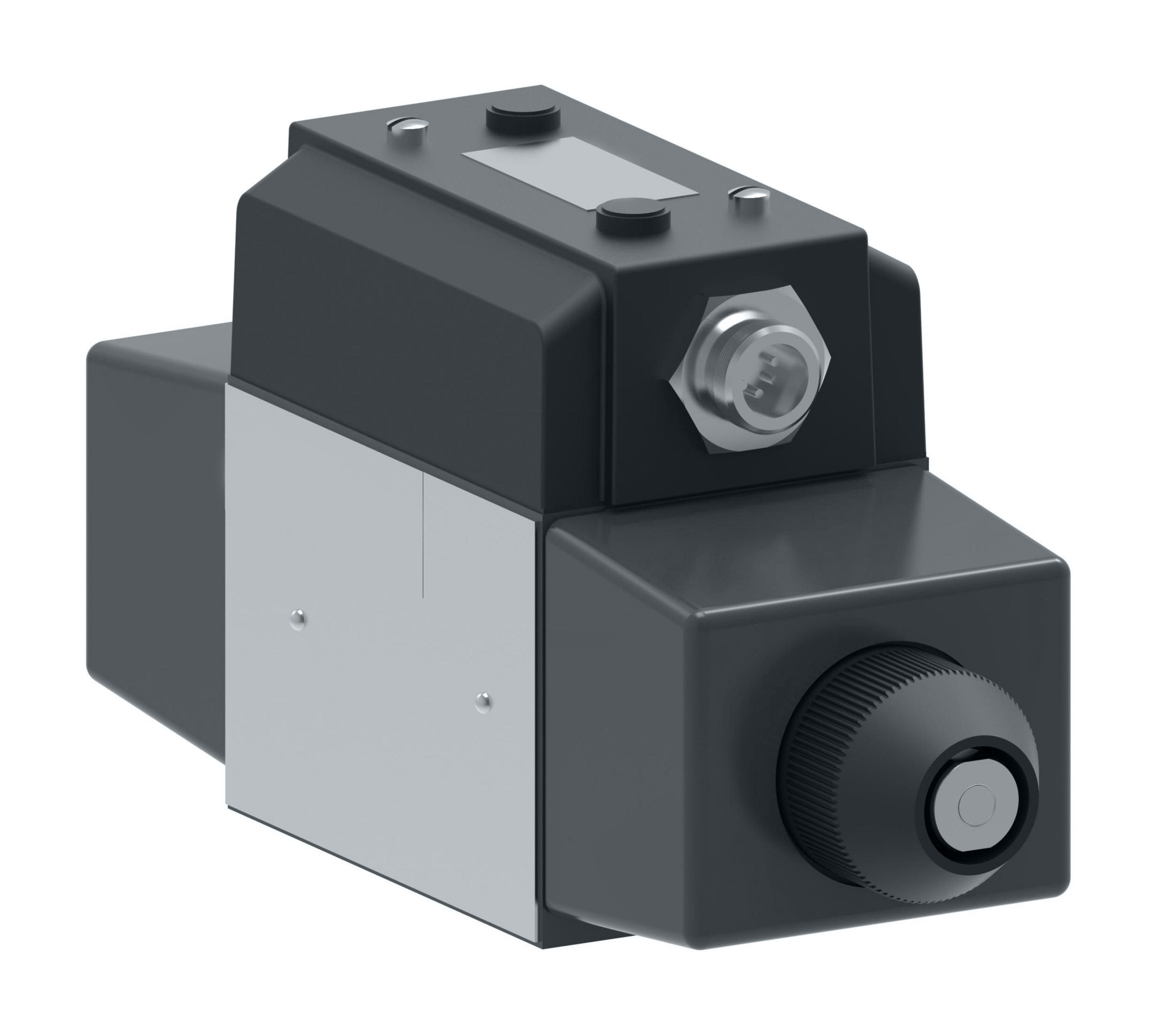

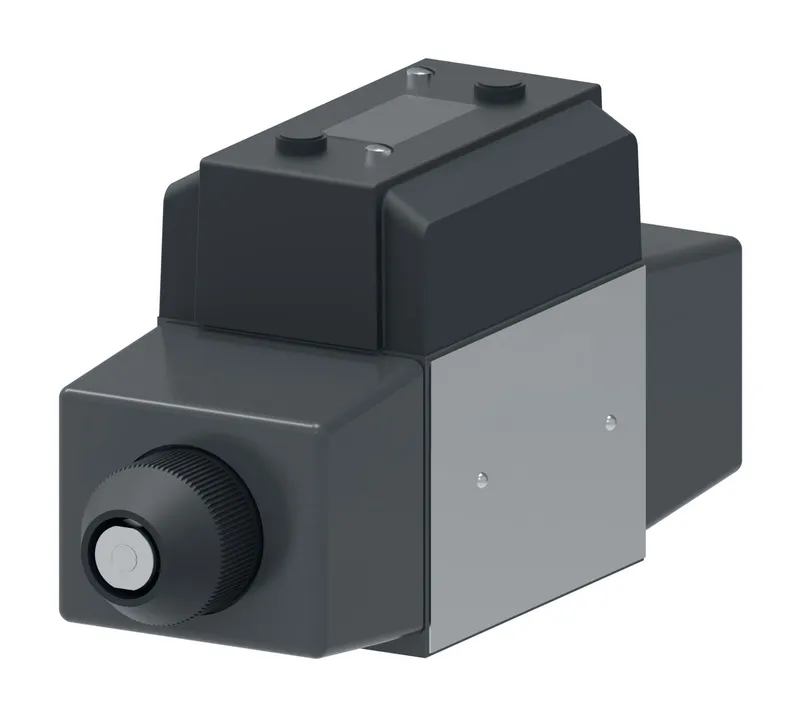

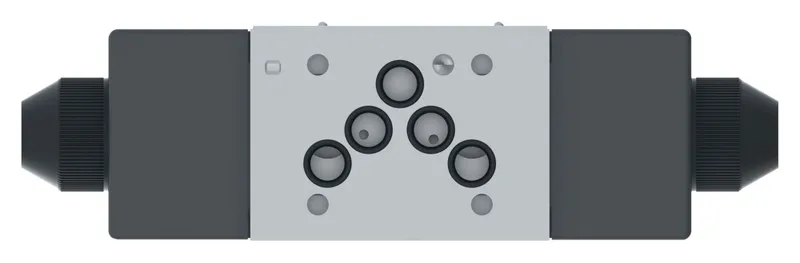

DG4V4-012C-M-PBW-B-5-10, DG4V4012CMPBWB510

MPN: 02-339459
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-339459?

Danfoss DG4V4-012C-M-PBW-B-5-10, DG4V4012CMPBWB510, manufacturer part number 02-339459. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	10 Series
Electrical Connection	Instaplug male and female receptacle
Energ Time	20-50 ms
Flow rate upto GPM	30.0
Flow rate upto LPM	115.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-05/NFPA D05
Manual override	Plain
Model Code 1	DG4V4012CMPBWB510
Performance	Standard performance
Power Consumption	37 watt
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	4.590
Product length in	9.380
Product length mm	238.252
Product width in	2.840
Product width mm	72.136
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	120.0
Tank port rating PSI	1750
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	50
Working temp max F	122
Working temp min C	20
Working temp min F	70
