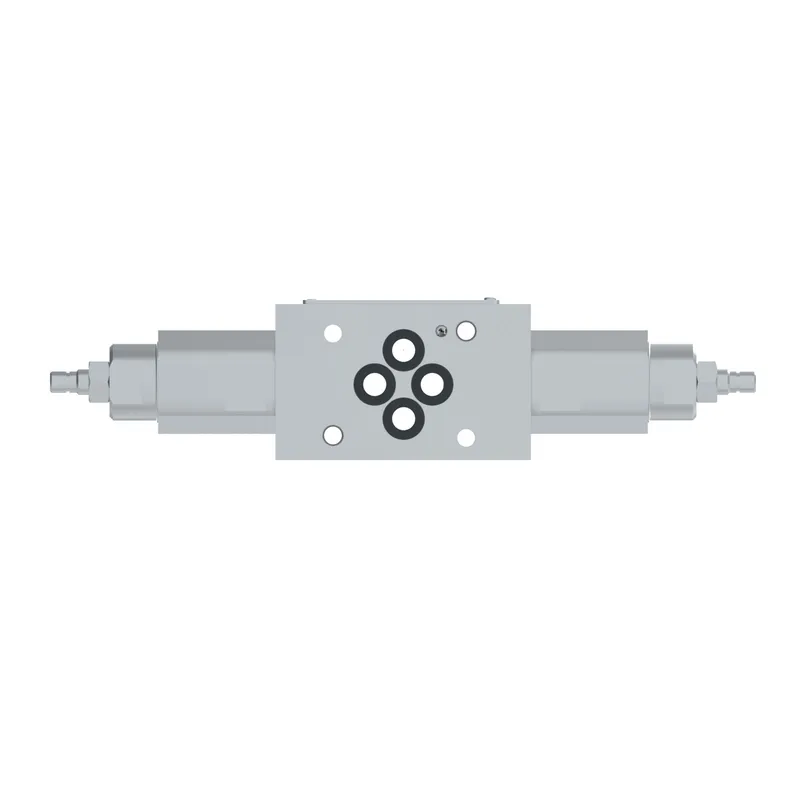

What is the Danfoss 02-338436?

Danfoss DGMC2-3-AB-CW-BA-CW-41-E N412, DGMC23ABCWBACW41EN412, manufacturer part number 02-338436. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePressure operated
Adjustment typeScrew and locknut
BrandVickers by Danfoss
Design Series41 Series
Discharge 1Discharge into B
Discharge 2Discharge into A
First functionPressure limited in A
Flow rate upto LPM60
Flow rate upto USGPM16.0
Fluid Cleanliness17/15/12 micron
Fluid compatibilityPetroleum oils
Function 1 pressure adjustment10-200 bar (145-2900 psi)
Function 2 pressure adjustment10-200 bar (145-2900 psi)
InterfaceISO4401-03
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model Code 1DGMC23ABCWBACW41EN412
PerformanceStandard
Product height in1.570
Product height mm39.878
Product length in9.200
Product length mm233.680
Product width in1.870
Product width mm47.498
Seal typeViton
Second functionPressure limited in B
Special featuresAdjustment set to 100 bar (1400 psi) with flow rate of 5 GPM
Valve Mount TypeSubplate/manifold mounted
Valve typeDual relief function valve
Working temp max C80
Working temp max F176
Working temp min C-20
Working temp min F-4
