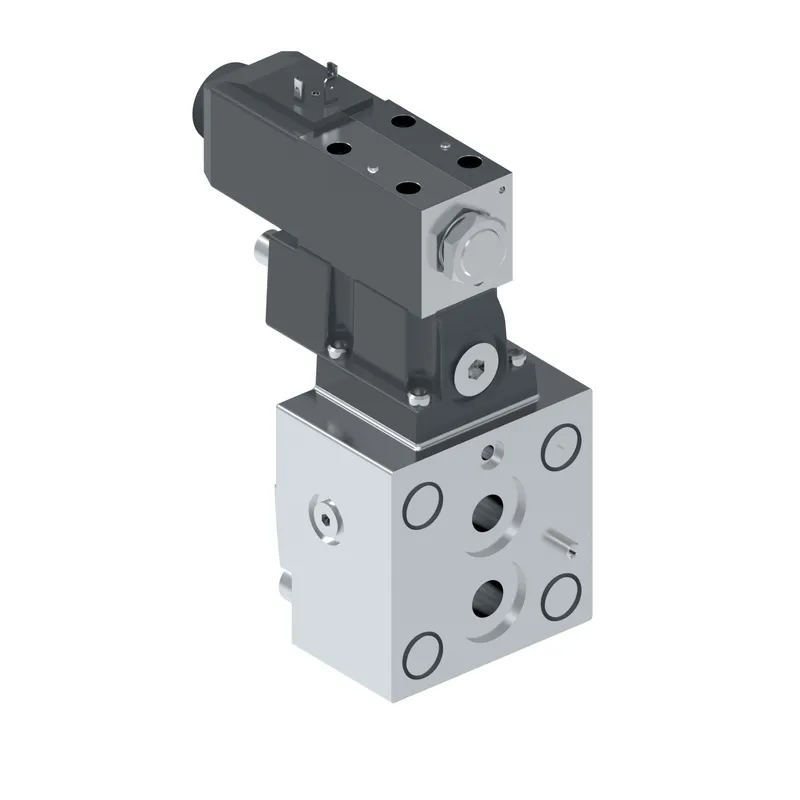

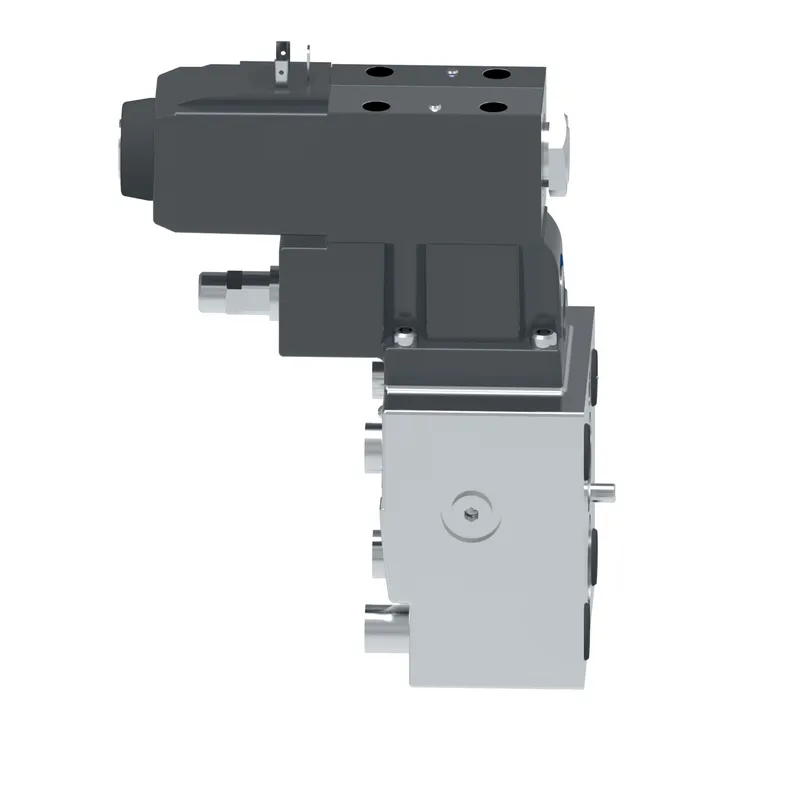

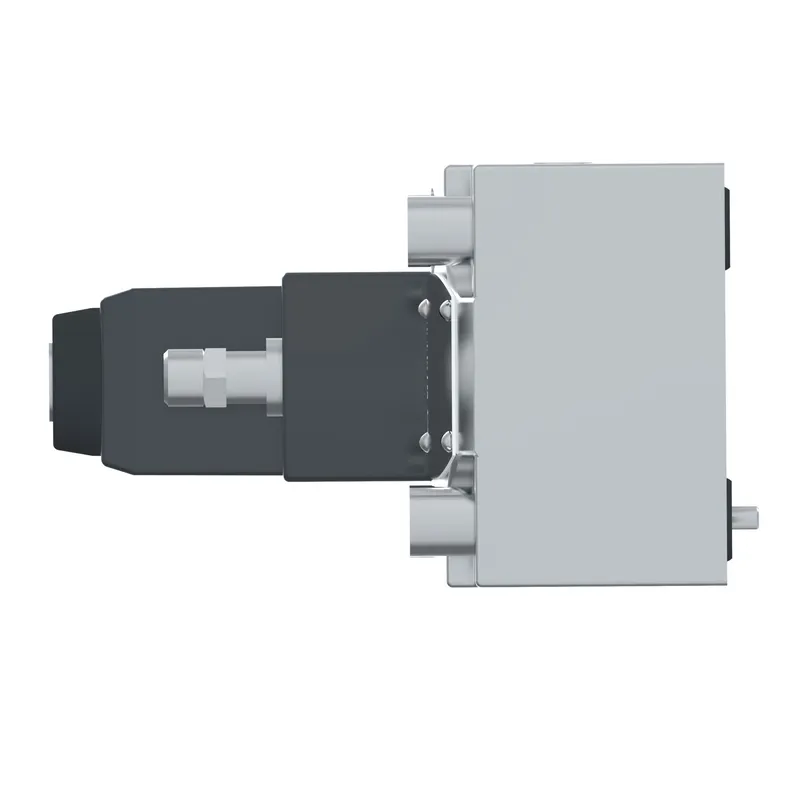

Danfoss 02-337587

CT5-100A-C-M-U-B6-110, CT5100ACMUB6110

MPN
02-337587
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-337587?

Danfoss CT5-100A-C-M-U-B6-110, CT5100ACMUB6110, manufacturer part number 02-337587. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
Adjustment range35-140 bar (500-2000 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Coil voltage110 VAC 50Hz/120 VAC 60Hz
Design Series110 Series
Electrical connectionISO 4400 (DIN 43650) connector
Flow rate lpm454.0
Flow rate USGPM120.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Hi-vent springNo
Indicator LightNo
Manual overridePlain
Maximum pressure BAR210
Maximum pressure PSI3000
Model Code 1CT5100ACMUB6110
PerformanceStandard
Product height in9.970
Product height mm253.238
Product length in7.870
Product length mm199.898
Product width in3.280
Product width mm83.312
Seal materialNitrile
SizeSize 10
Special featureNone
Spring ArrangementSpring offset
StageTwo stage
Tank pressure bar155
Tank pressure PSI2250
Valve Mount Type1 1/4 inch NPT pipe mount
Valve typePilot operated relief valve
Working temperature max C70
Working temperature max F158
Working temperature min C-20
Working temperature min F-4

02-337587: frequently asked questions

When can 02-337587 be shipped?

02-337587 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-337587 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-337587 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-337587, subject to availability and destination.
