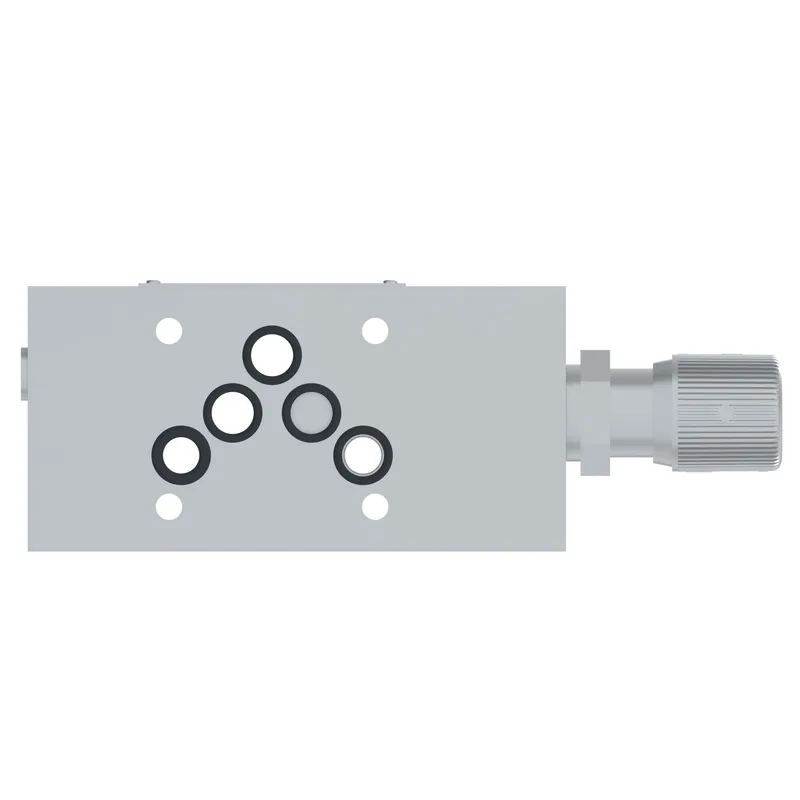

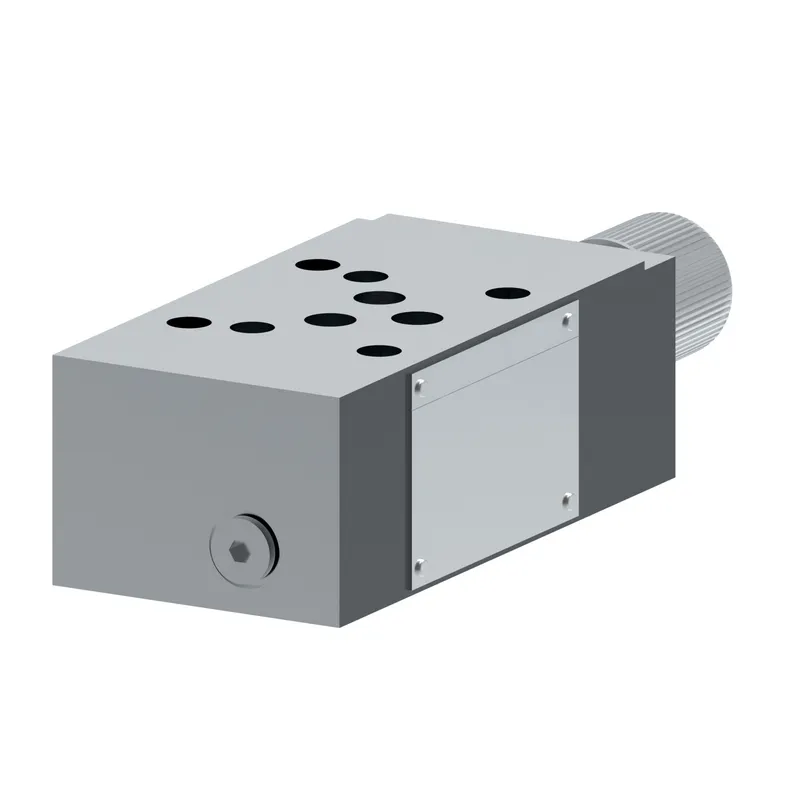

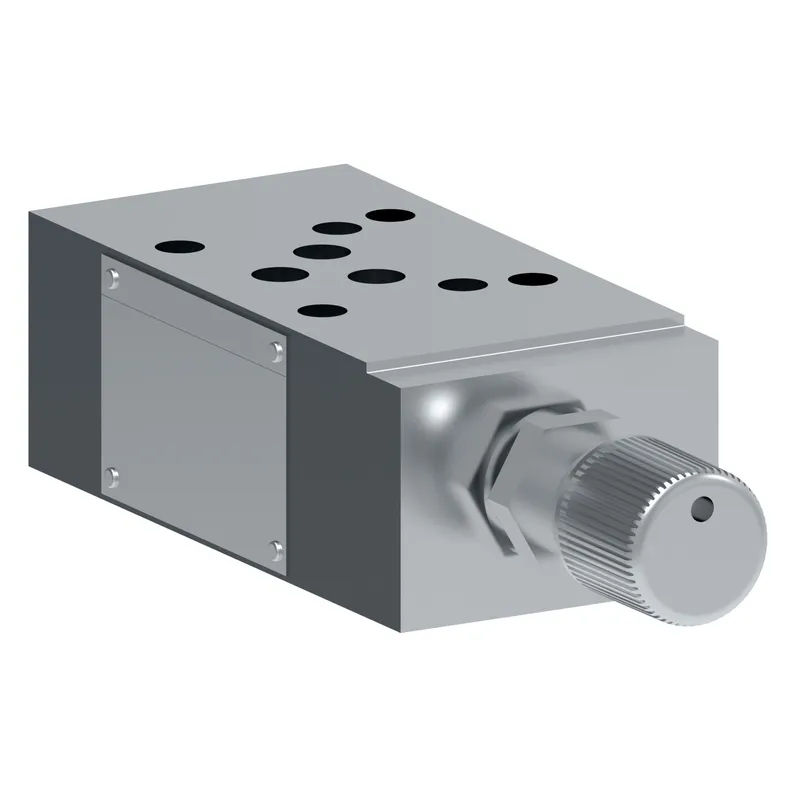

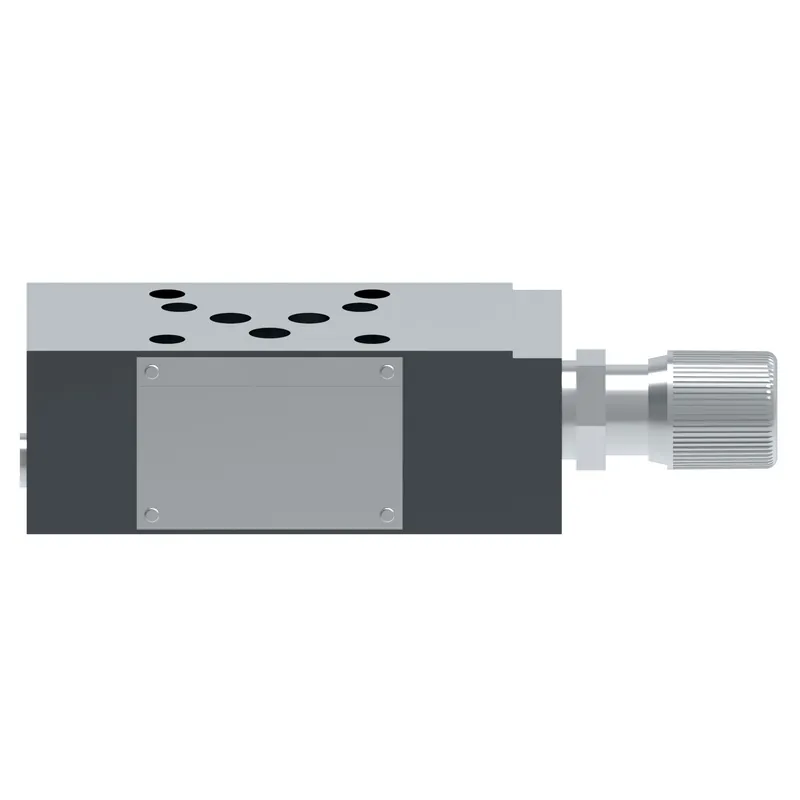

Danfoss 02-336828

DGMC 5 AT AH S 30, DGMC5ATAHS30

MPN: 02-336828
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-336828?

Danfoss DGMC 5 AT AH S 30, DGMC5ATAHS30, manufacturer part number 02-336828. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Knob adjuster
Brand	Vickers by Danfoss
Design Series	30 Series
External drain	No
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	SAE-4 o-ring boss port
Interface	ISO4401-05
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMC5ATAHS30
Performance	Standard
Port drained into	Tank port
Port operated upon	A cylinder port
Pressure adjustment range	4-50 bar (60-725 psi)
Product height in	1.970
Product height mm	50.038
Product length in	7.900
Product length mm	200.660
Product width in	2.820
Product width mm	71.628
Remote control port	No
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Single relief valve
Working temp max C	80
Working temp max F	176
Working temp min C	0
Working temp min F	32

02-336828: frequently asked questions

When can 02-336828 be shipped?

02-336828 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-336828 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-336828 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-336828, subject to availability and destination.
