Danfoss 02-336086

MPN: 02-336086
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-336086?

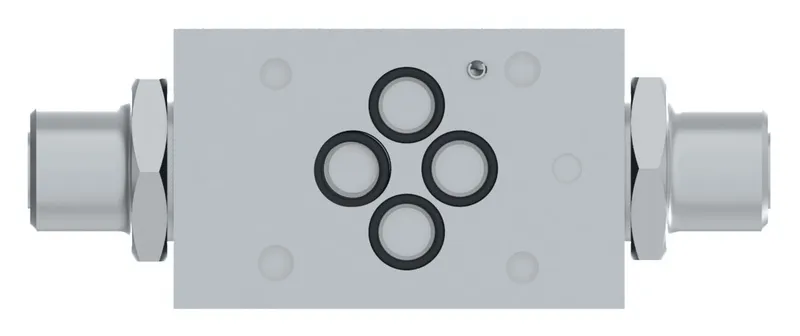

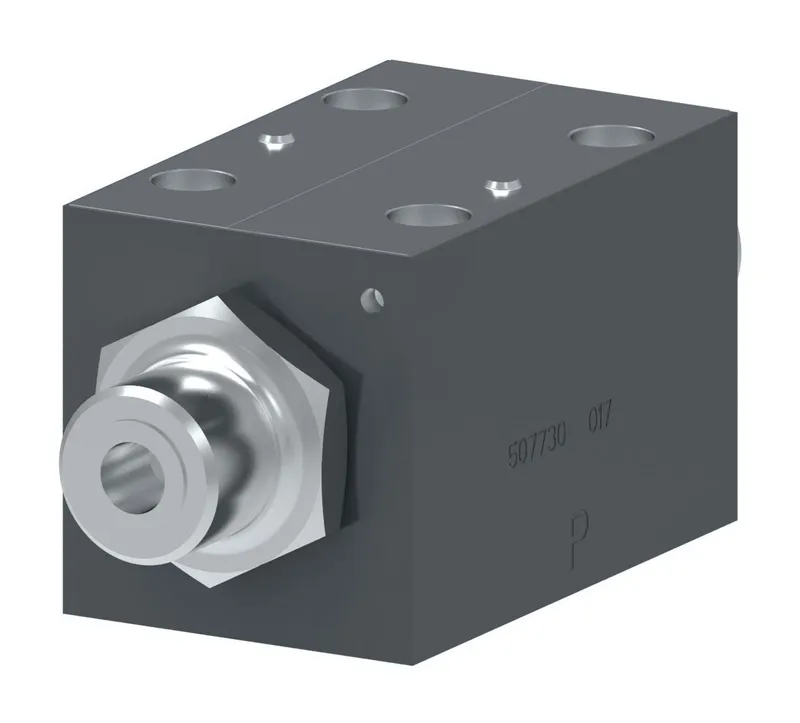

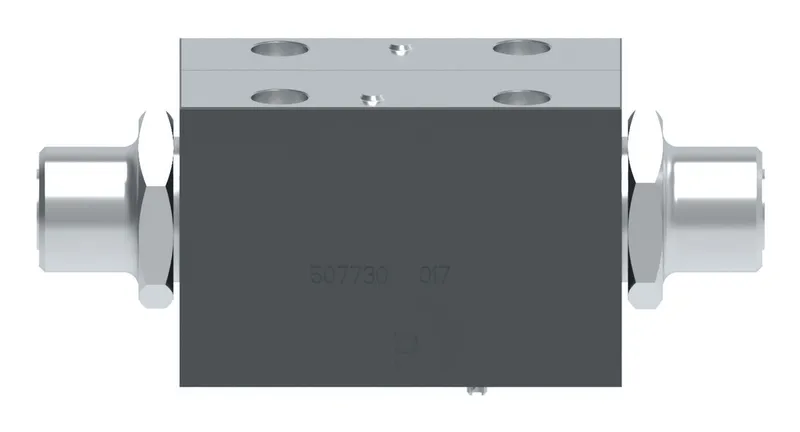

Danfoss DG3V 3 22A T 7 B 60, DG3V322AT7B60, manufacturer part number 02-336086. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Hydraulic operated
Brand	Vickers by Danfoss
Design Series	60 Series
Flow rate upto GPM	10.0
Flow rate upto LPM	38.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-03
Model Code 1	DG3V322AT7B60
Pressure rating BAR	350
Pressure rating PSI	5000
Seal type	Buna-N
Spool Type	Spool 22
Spring Arrangement	Spring offset end to end
Stage	Single stage
Tank port rating BAR	210.0
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-336086: frequently asked questions

When can 02-336086 be shipped?

02-336086 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-336086 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-336086 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-336086, subject to availability and destination.
