Danfoss 02-333313

DG5V-5-2A-2-M-U-H7-10, DG5V52A2MUH710

MPN: 02-333313
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

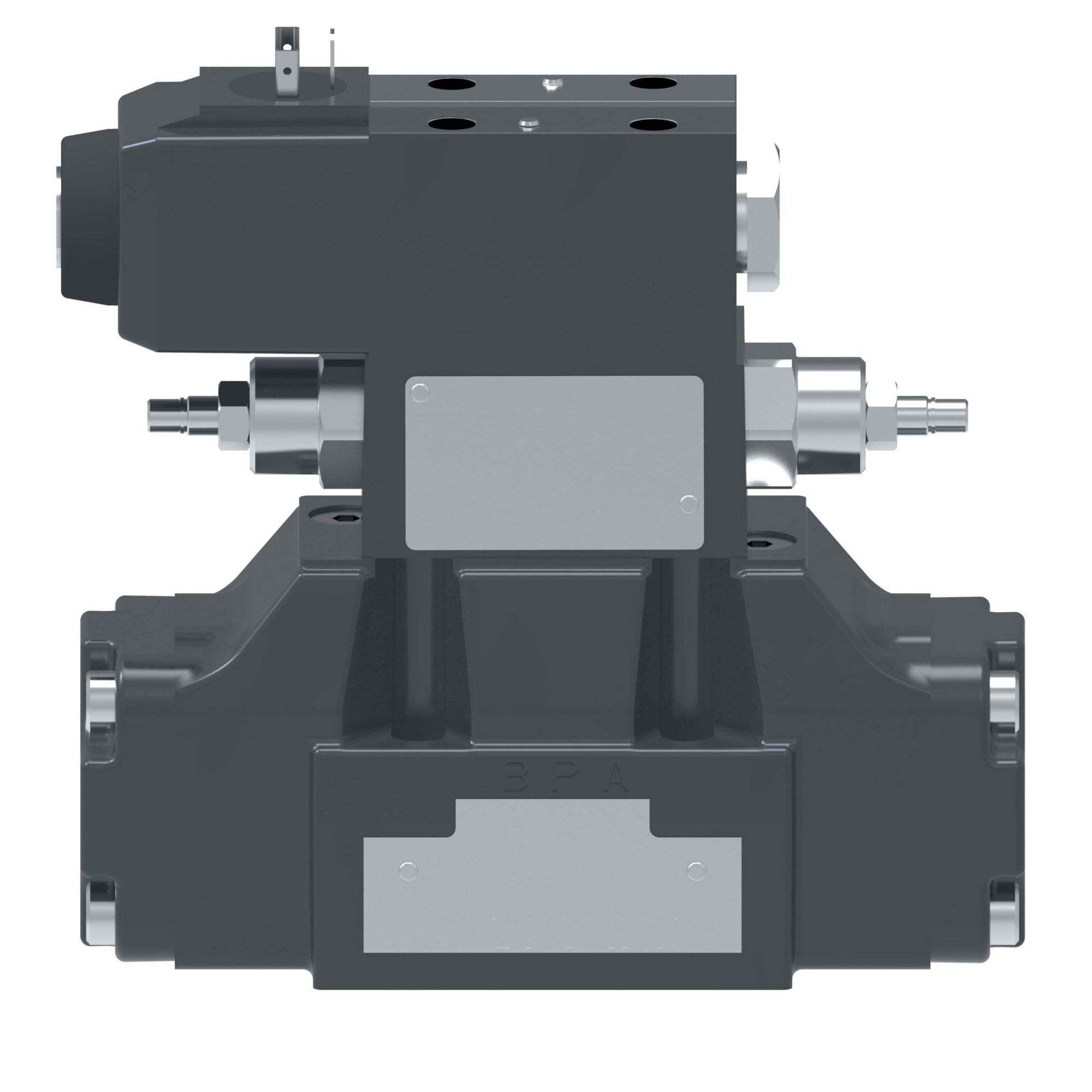

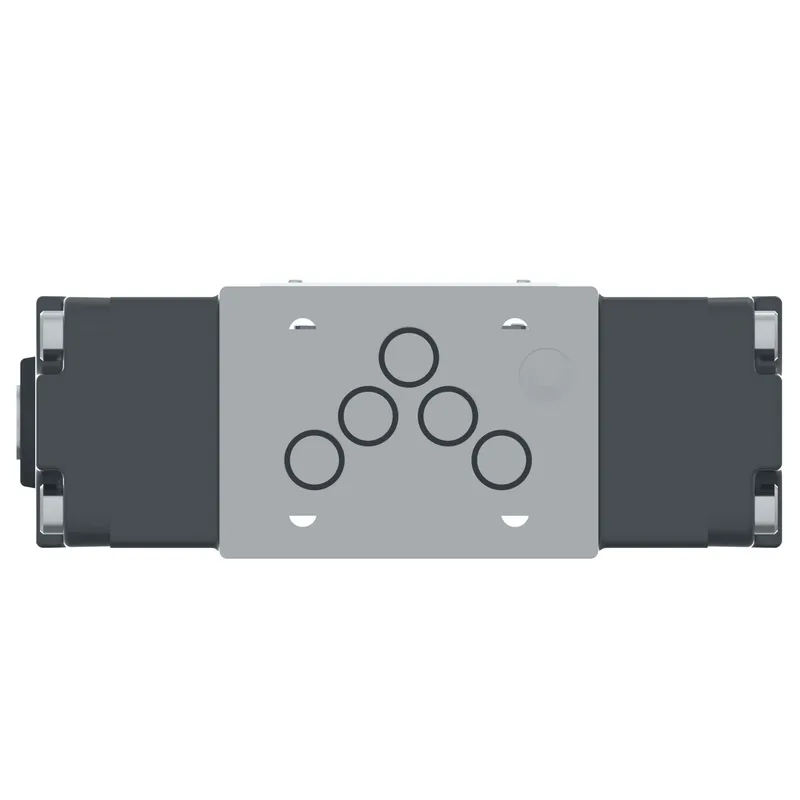

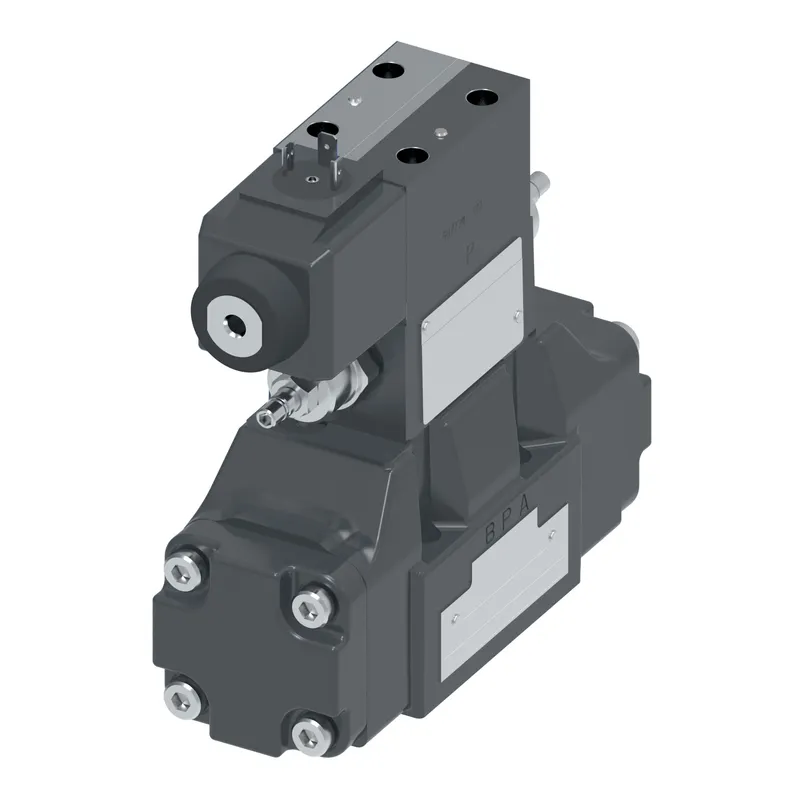

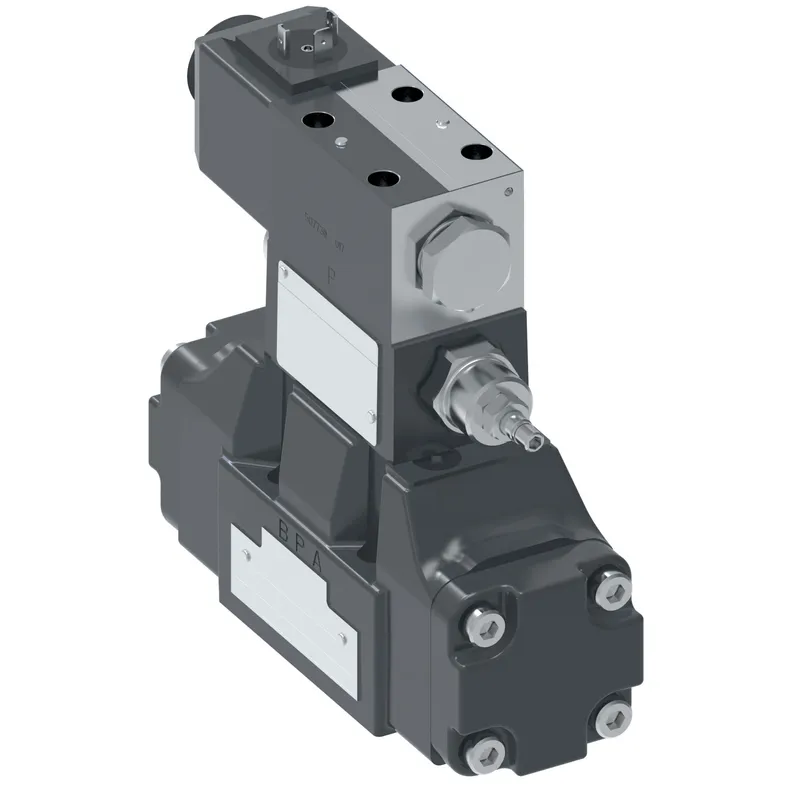

What is the Danfoss 02-333313?

Danfoss DG5V-5-2A-2-M-U-H7-10, DG5V52A2MUH710, manufacturer part number 02-333313. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	10 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	Internal
Flow rate upto GPM	42.0
Flow rate upto LPM	160.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	External
Interface	ISO4401-05
Manual override	Plain
Model Code 1	DG5V52A2MUH710
Performance	High performance
Power Consumption	30 watt
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	8.500
Product height mm	215.900
Product length in	6.200
Product length mm	157.480
Product width in	2.860
Product width mm	72.644
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Control	Pilot choke adjustment
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset end to end
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
