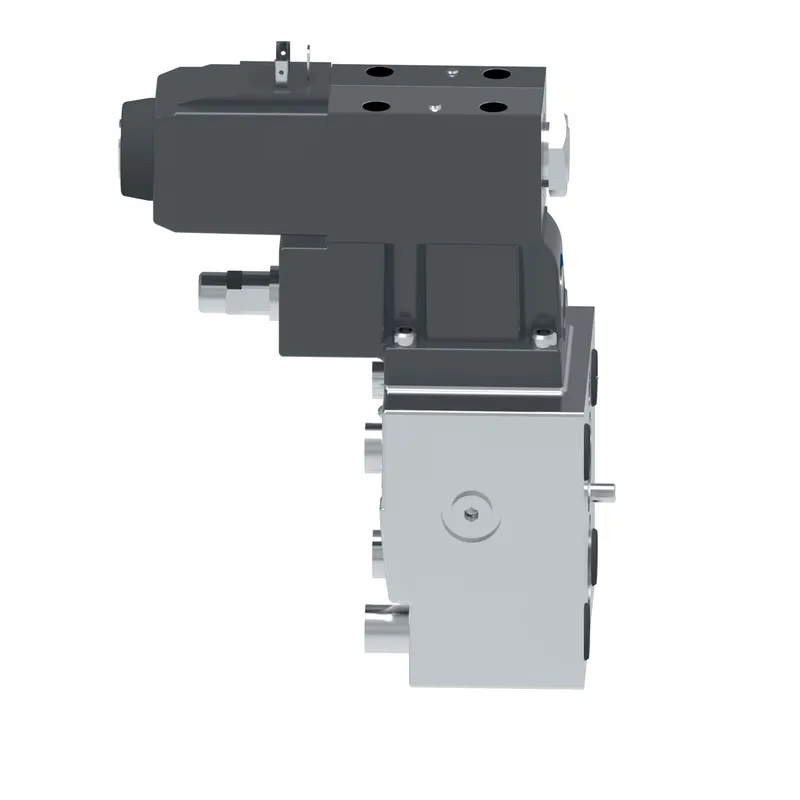

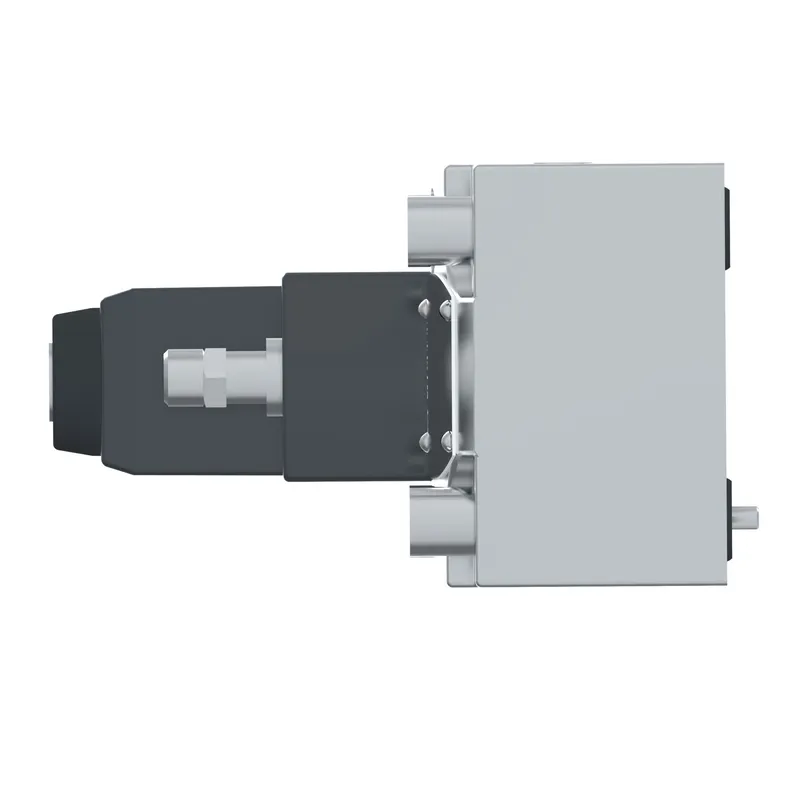

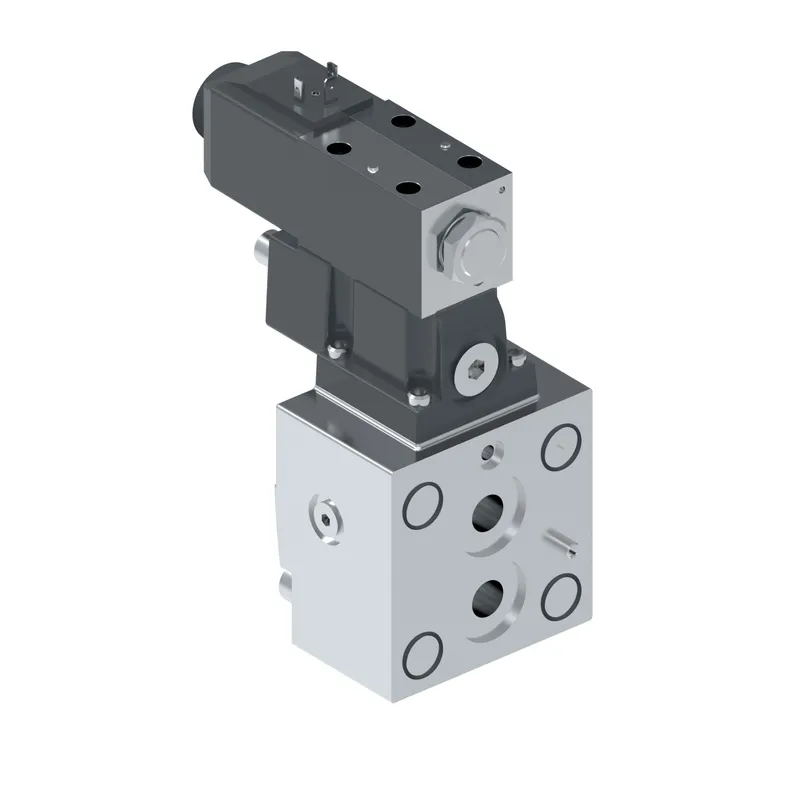

CT5 100A CV M U H5 1, CT5100ACVMUH5100
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-330456 be shipped?
02-330456 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-330456 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-330456 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-330456, subject to availability and destination.
Danfoss CT5 100A CV M U H5 1, CT5100ACVMUH5100, manufacturer part number 02-330456. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Solenoid operated |
| Adjustment range | 35-140 bar (500-2000 psi) |
| Adjustment type | Wrench |
| Brand | Vickers by Danfoss |
| Coil voltage | 24 VDC |
| Design Series | 100 Series |
| Drain | Internal |
| Electrical connection | ISO4400 (Din 43650) Connector |
| Flow rate lpm | 454.0 |
| Flow rate USGPM | 120.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid compatibility | Petroleum oils |
| Gauge port thread | 0.4375-20 UNF-2B |
| Hi-vent spring | Yes |
| Interface | 1.6250-12 UF-2B |
| Leakage | Standard |
| Manual override | Plain |
| Maximum pressure BAR | 210 |
| Maximum pressure PSI | 3000 |
| Model Code | CT5100ACVMUH5100 |
| Performance | Standard |
| Product height in | 9.970 |
| Product height mm | 253.238 |
| Product length in | 7.870 |
| Product length mm | 199.898 |
| Product width in | 3.280 |
| Product width mm | 83.312 |
| Remote control | Yes |
| Seal material | Nitrile |
| Size | Size 10 |
| Special feature | None |
| Spring Arrangement | Spring offset |
| Stage | Two stage |
| Tank pressure bar | 100 |
| Tank pressure PSI | 1450 |
| Valve Mount Type | NPTF threads |
| Valve type | Pilot operated relief valve |
| Working temperature max C | 70 |
| Working temperature max F | 158 |
| Working temperature min C | -20 |
| Working temperature min F | -4 |
