Danfoss 02-329169

DG5V 8 S 6C M U B 10, DG5V8S6CMUB10

MPN: 02-329169
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-329169?

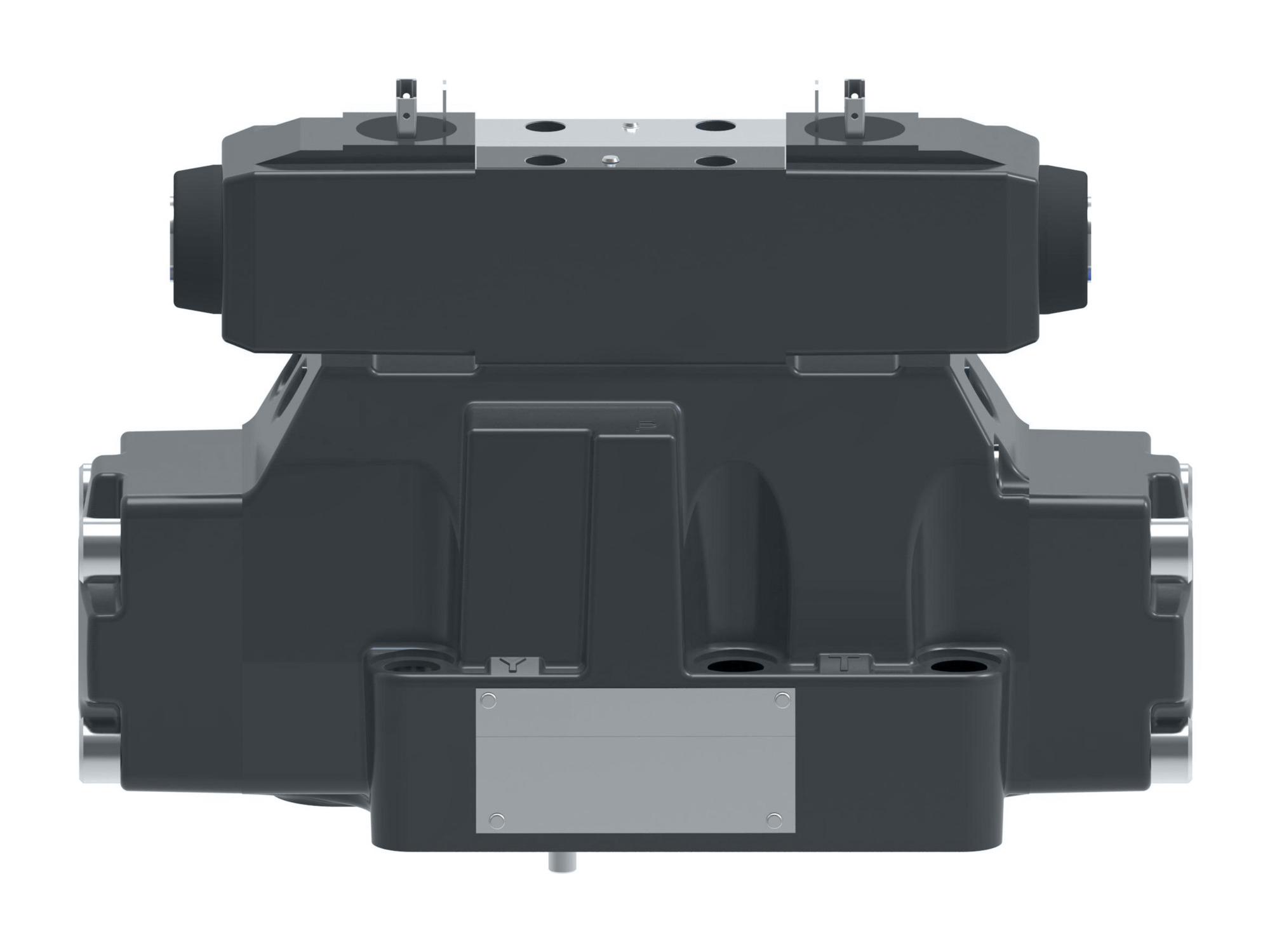

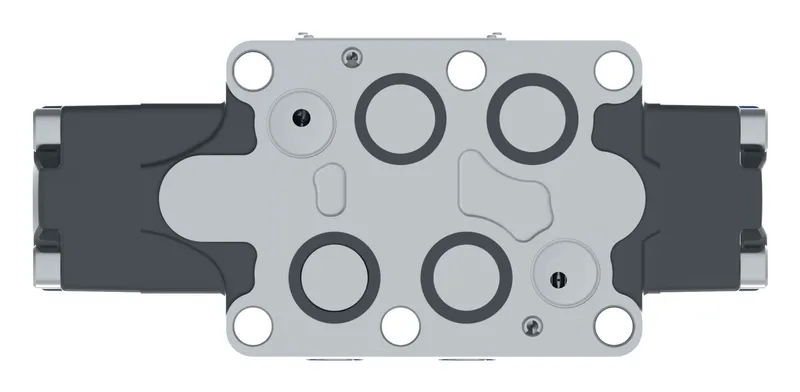

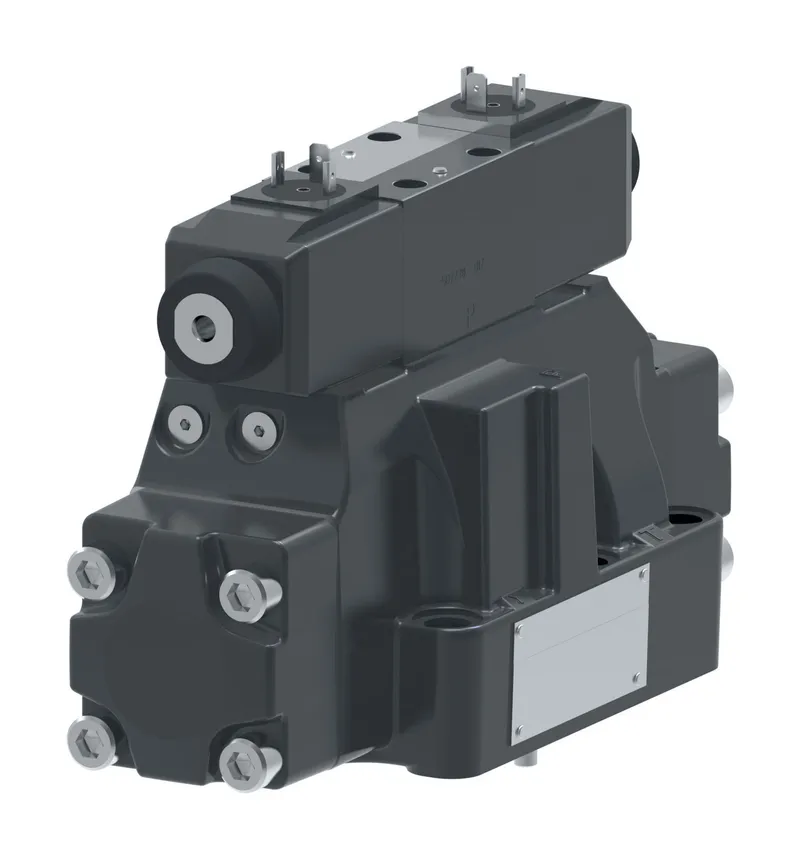

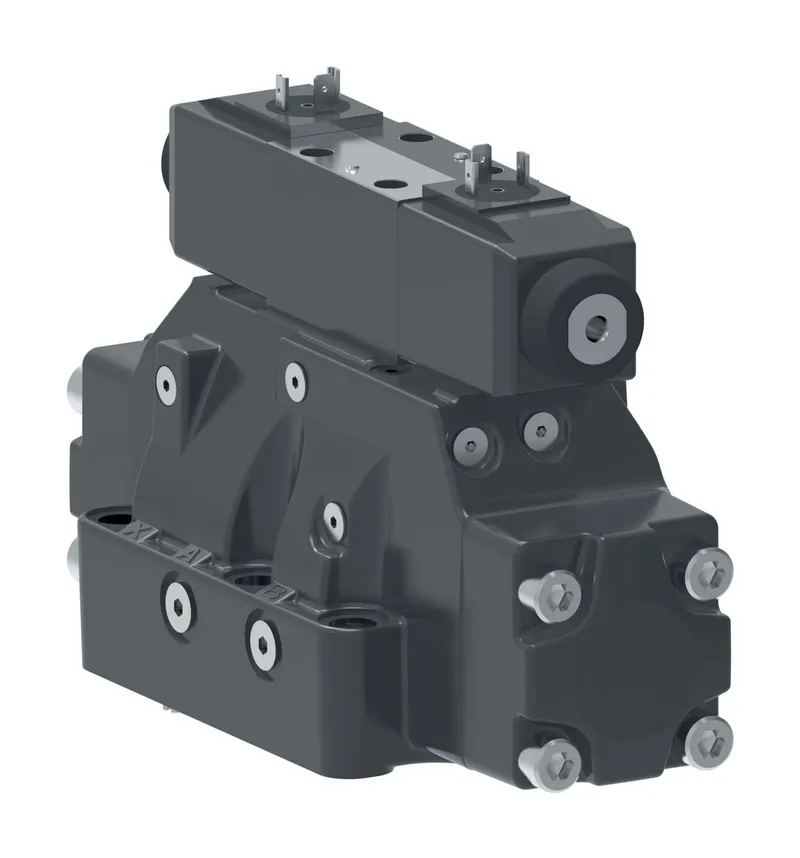

Danfoss DG5V 8 S 6C M U B 10, DG5V8S6CMUB10, manufacturer part number 02-329169. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	10 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	Internal
Indicator Light	No
Int pilot drain	External
Interface	ISO4401-08
Manual override	Plain
Model Code 1	DG5V8S6CMUB10
Performance	Standard performance
Product height in	7.790
Product height mm	197.866
Product length in	10.450
Product length mm	265.430
Product width in	4.670
Product width mm	118.618
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
