Danfoss 02-328336-4

Industrial vane pump

MPN
02-328336-4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

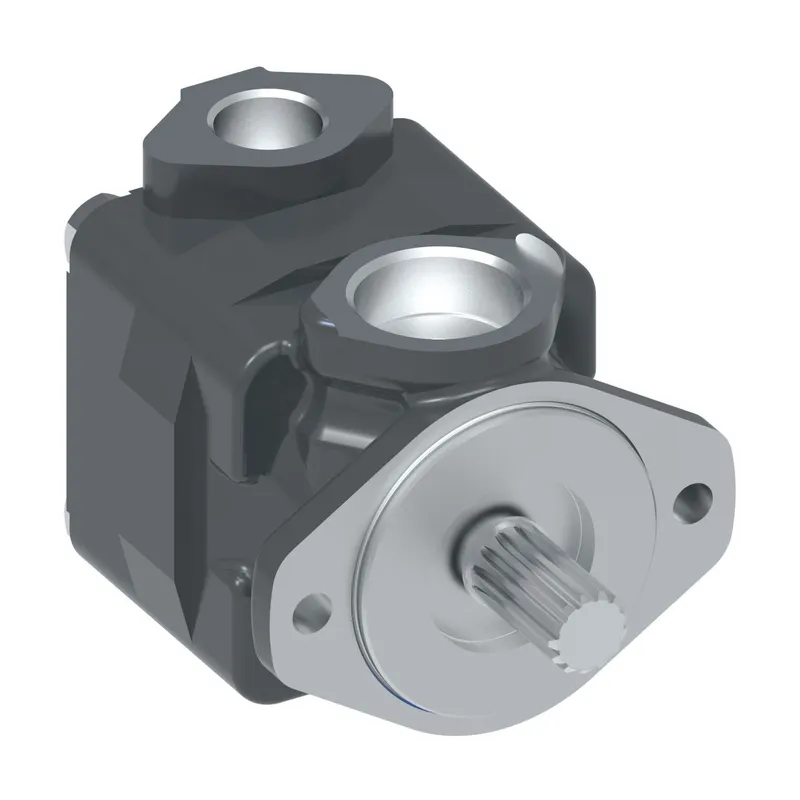

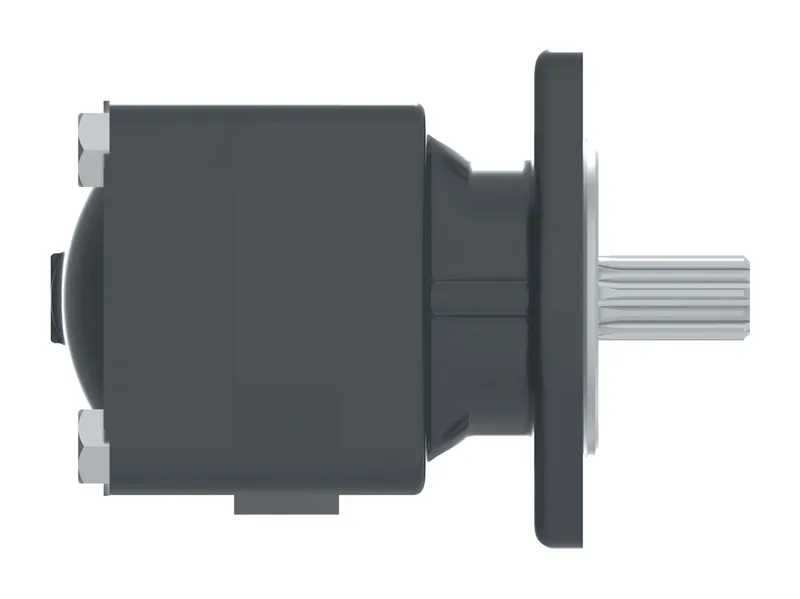

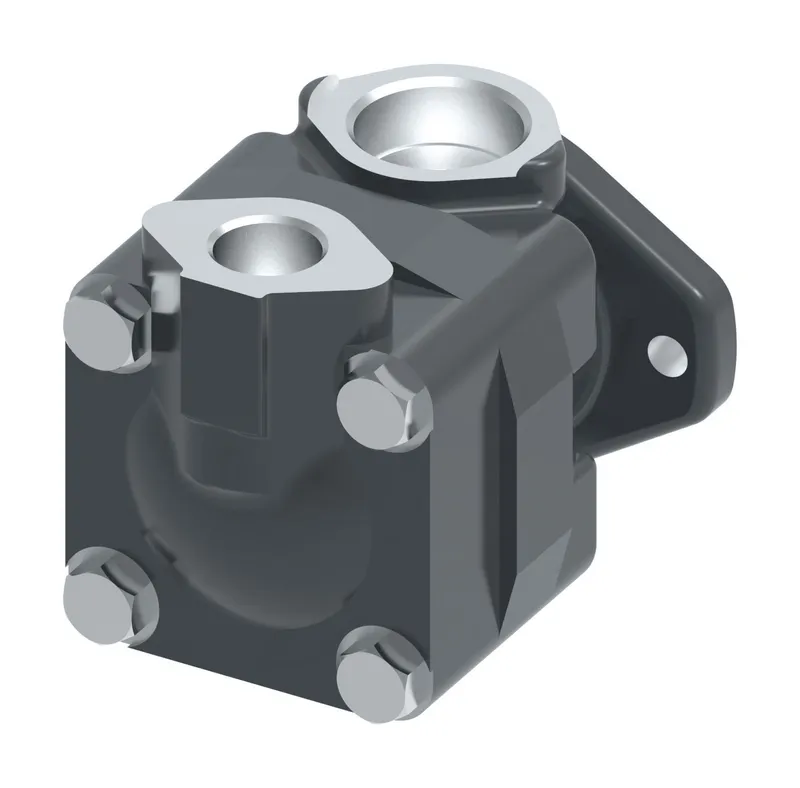

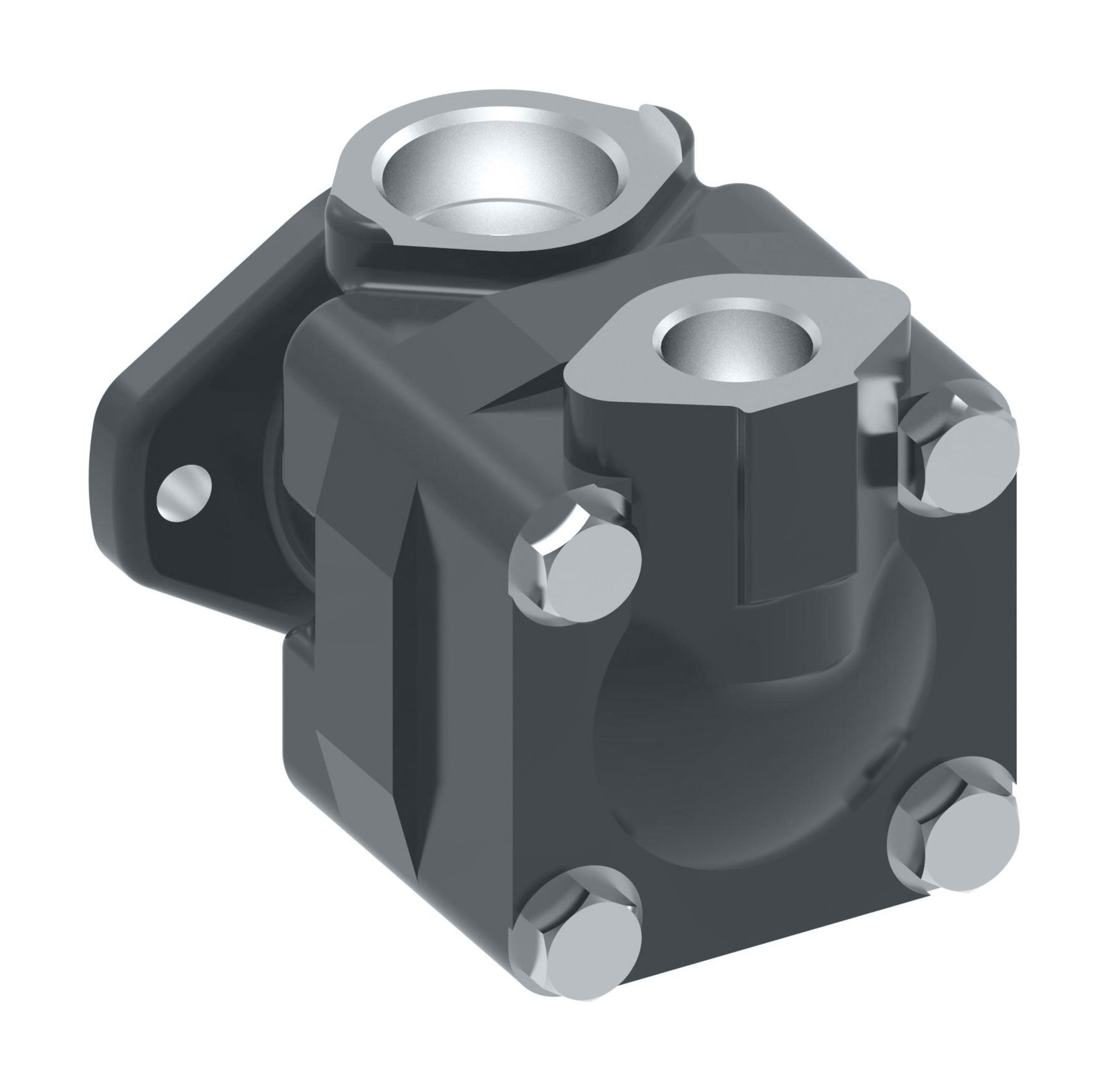

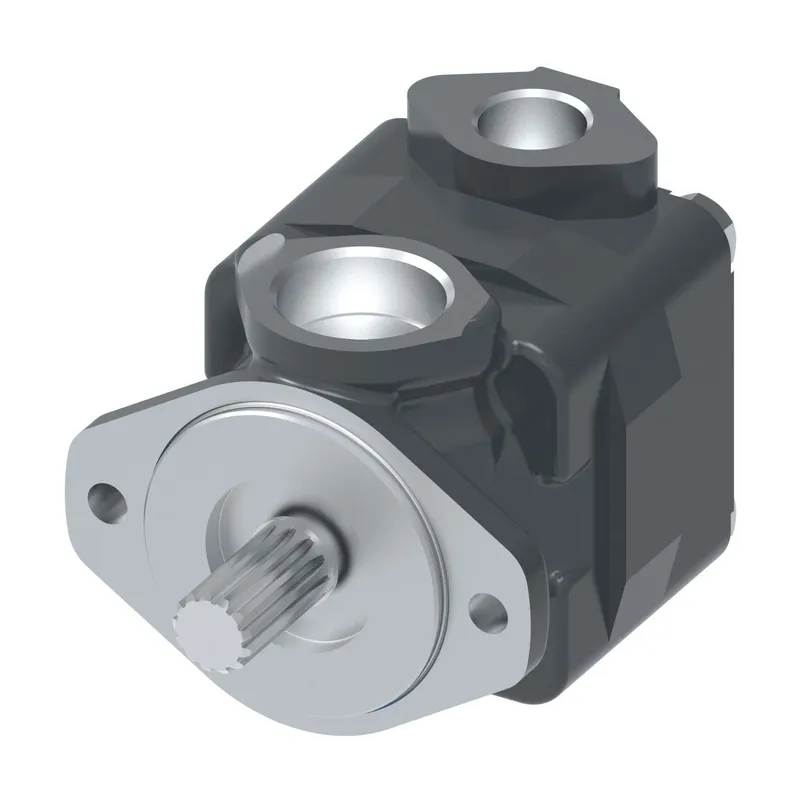

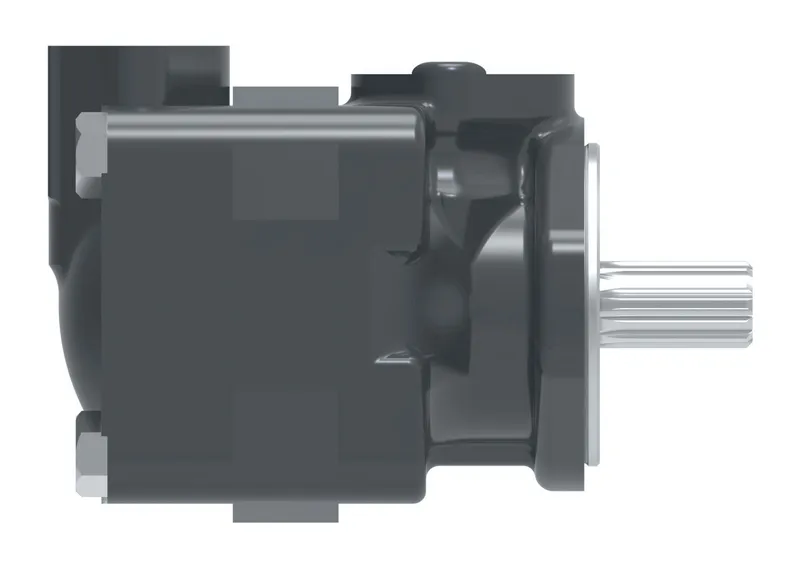

What is the Danfoss 02-328336-4?

Danfoss F3 V20F 1D11S 38D8H 22, F3 V20F 1D11S 38D8H 22, manufacturer part number 02-328336-4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

SEALS TYPEALL SEALS VITON
PUMP TYPEVANE PUMP
SeriesSERIES DESIGNATION
Cover typeFLOW CONTROL VALVE COVER
Mounting type2 BOLT FLANGE SAE-A SIZE
INLET PORT TYPE1.312-12UN-12B STR.THREAD
RING CAPACITY11 GPM
OUTLET PORT TYPECOVER D,COVER STANDARD - 1.062-12 UN-2B THREAD. F COVER - PRESSURE PORT -.750-16 UN-2B THREAD , TANK PORT-1.0625-12 UN-2B THREAD
SHAFT SEAL AND BEARINGSINGLE LIP SEAL&SEALED BEARING
Shaft type11TEETH 16/32 FLAT ROOT SIDE FIT
IPM FRAME SIZEV20 Single Pump
Model Code 1F3 V20F 1D11S 38D8H 22

02-328336-4: frequently asked questions

When can 02-328336-4 be shipped?

02-328336-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-328336-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-328336-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-328336-4, subject to availability and destination.
