What is the Danfoss 02-323201?

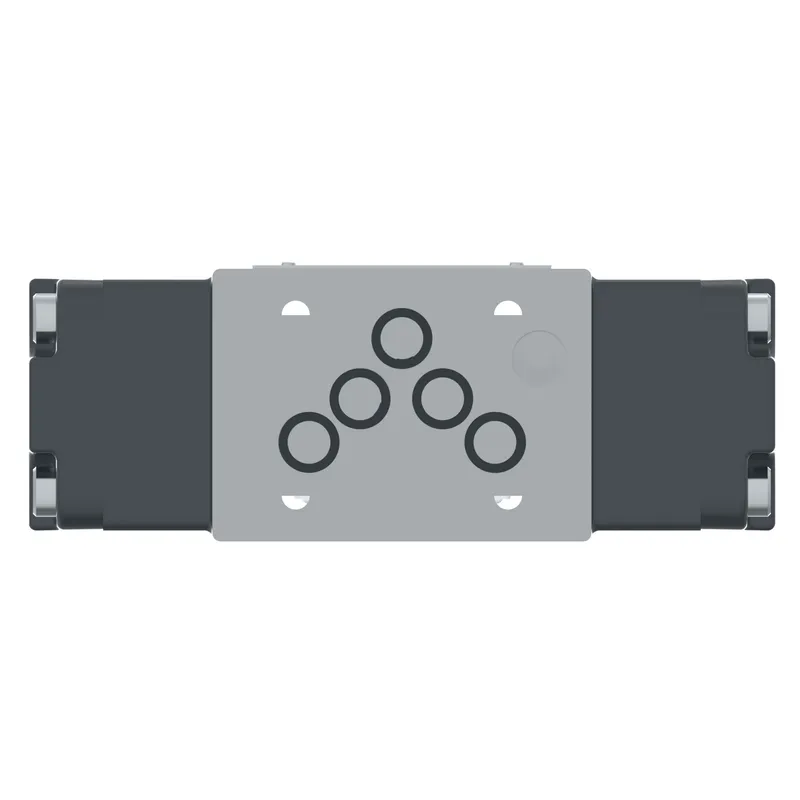

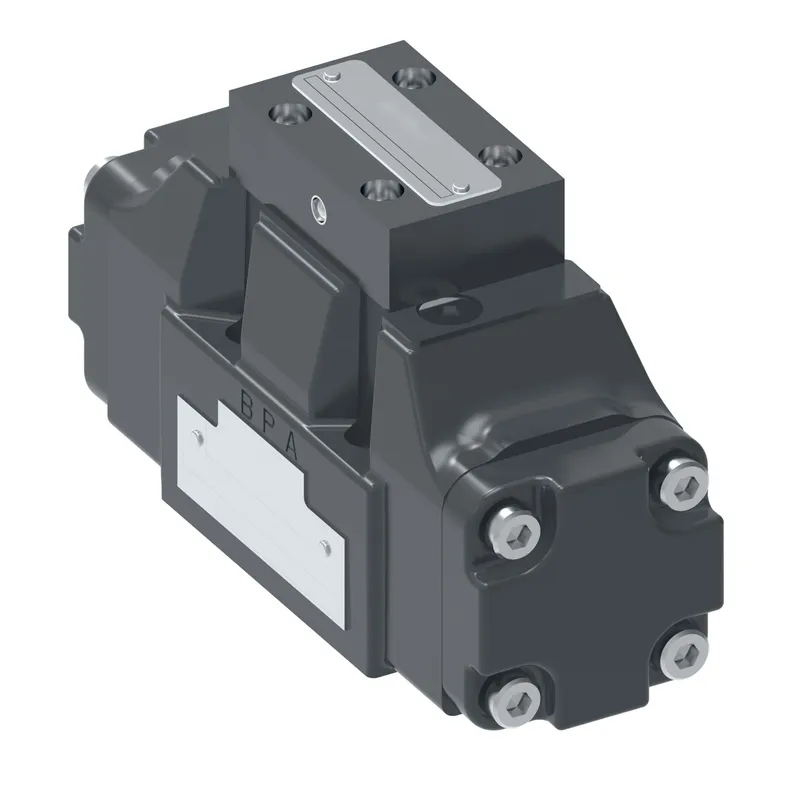

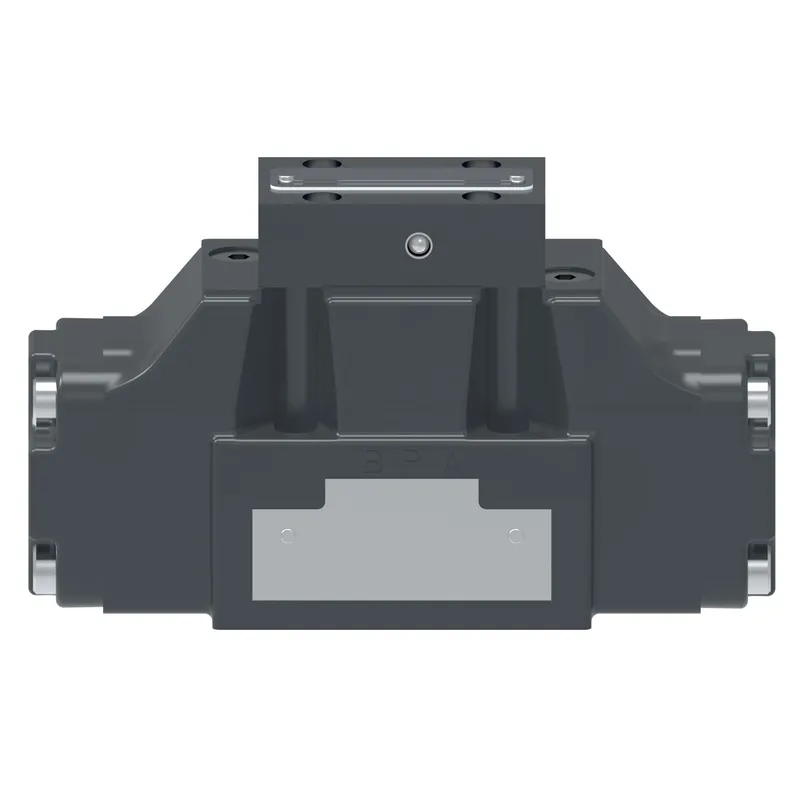

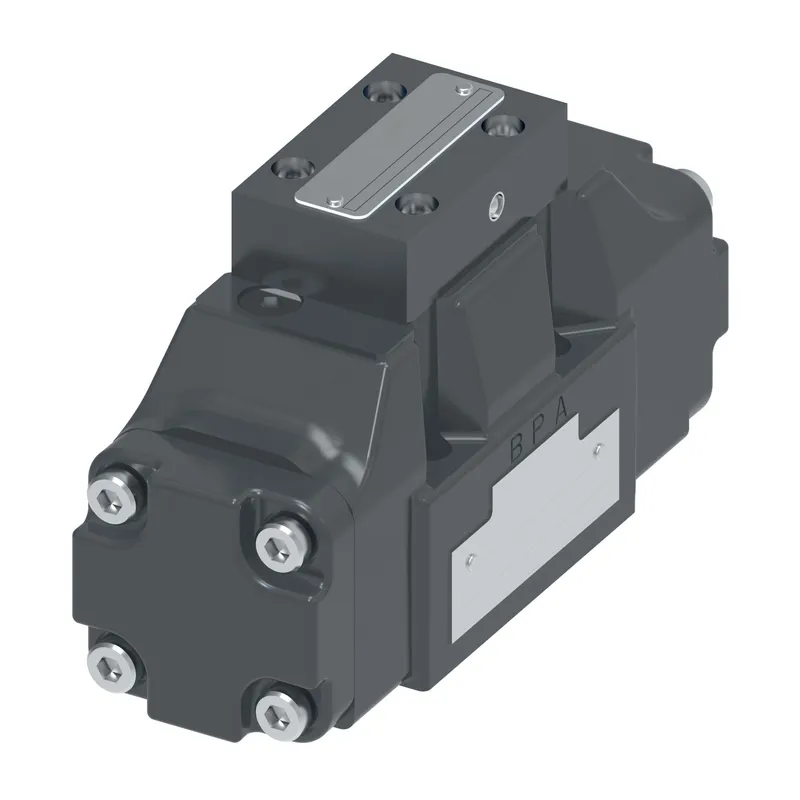

Danfoss DG3V 5 6C 10, DG3V56C10, manufacturer part number 02-323201. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Hydraulic operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	10 Series
Electrical Connection	None
Ext pilot pressure	External
Flow rate upto GPM	42.0
Flow rate upto LPM	160.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-05
Manual override	None
Model Code 1	DG3V56C10
Performance	High performance
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	4.400
Product length in	6.600
Product length mm	167.640
Product width in	2.860
Product width mm	72.644
Seal type	Buna-N
Solenoid Energising ID	None
Special features	None
Spool Position Monitor	No
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	315
Tank port rating PSI	4500
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
