Danfoss 02-323159

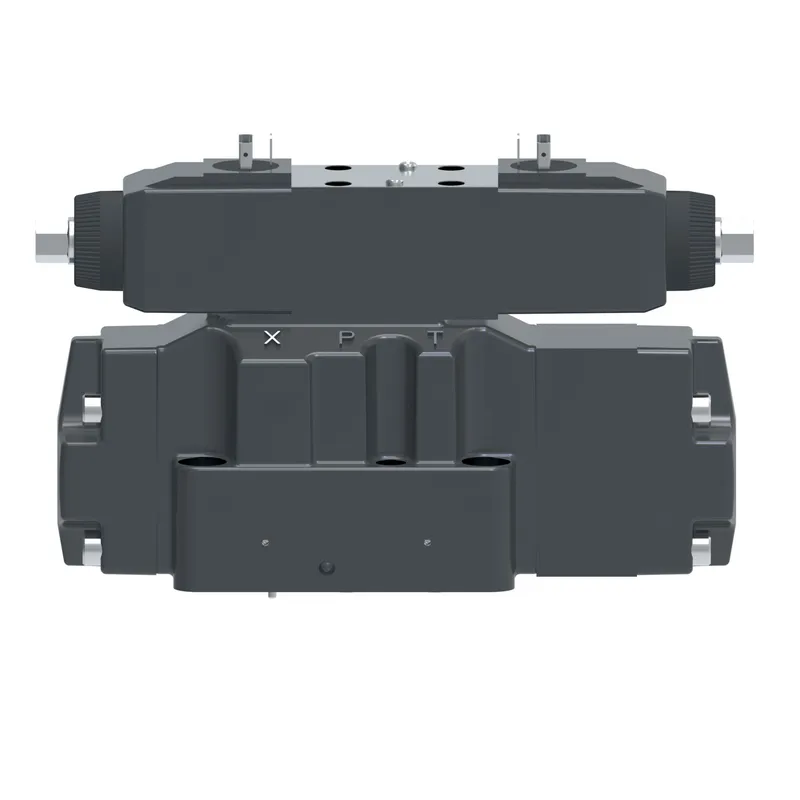

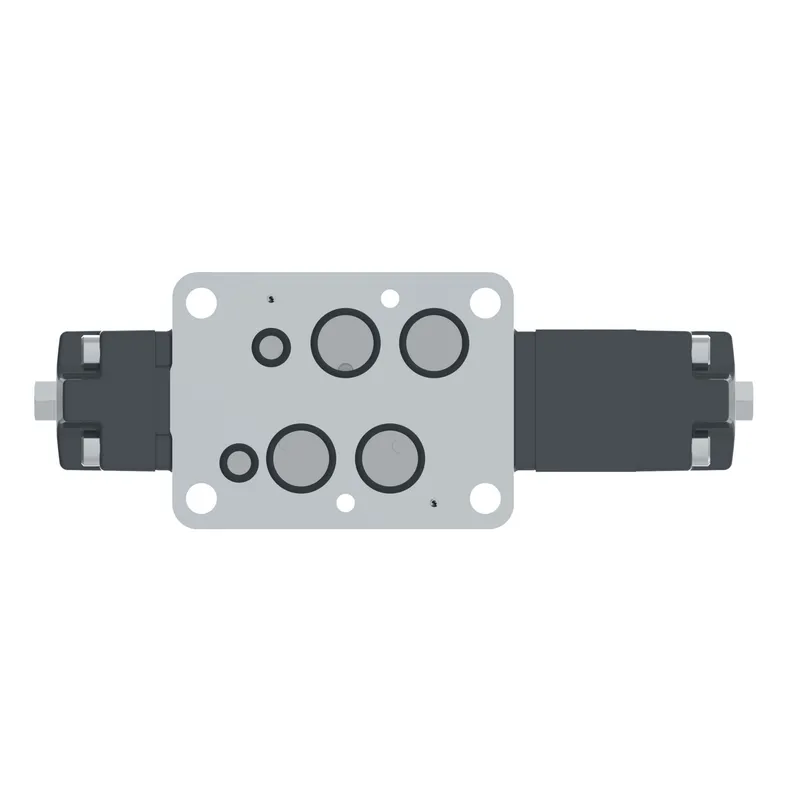

KDG5V 7 2C180N T H M U H1 10, KDG5V72C180NTHMUH110

MPN: 02-323159
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-323159?

Danfoss KDG5V 7 2C180N T H M U H1 10, KDG5V72C180NTHMUH110, manufacturer part number 02-323159. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	180.00
A Port flow USGPM	48.00
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	180.00
B Port flow USGPM	48.00
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	10 Series
Electrical Connection	ISO 4400 (DIN 43650) connector
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-07/NFPA D07/CETOP 7/NG16
Manual override	Water-resistant
Maximum pressure BAR	200
Maximum pressure PSI	2900
Metering	Meter in / meter out
Model Code 1	KDG5V72C180NTHMUH110
On board electronics	No
Performance	Standard
Pilot drain	Internal
Pilot supply	Internal
Product height in	7.200
Product height mm	182.880
Product length in	9.400
Product length mm	238.760
Product width in	3.650
Product width mm	92.71
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
