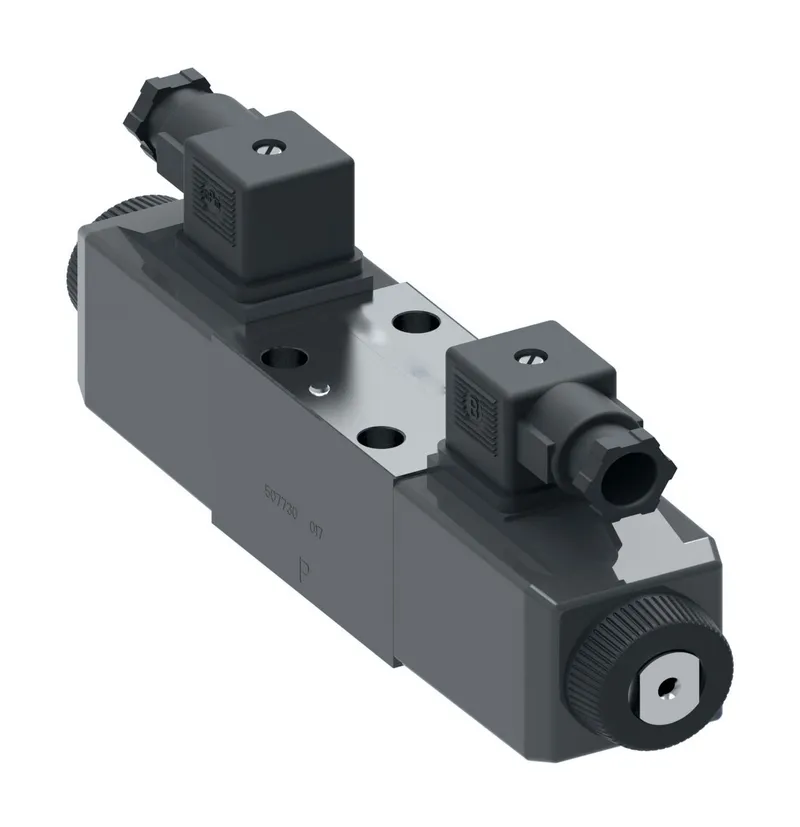

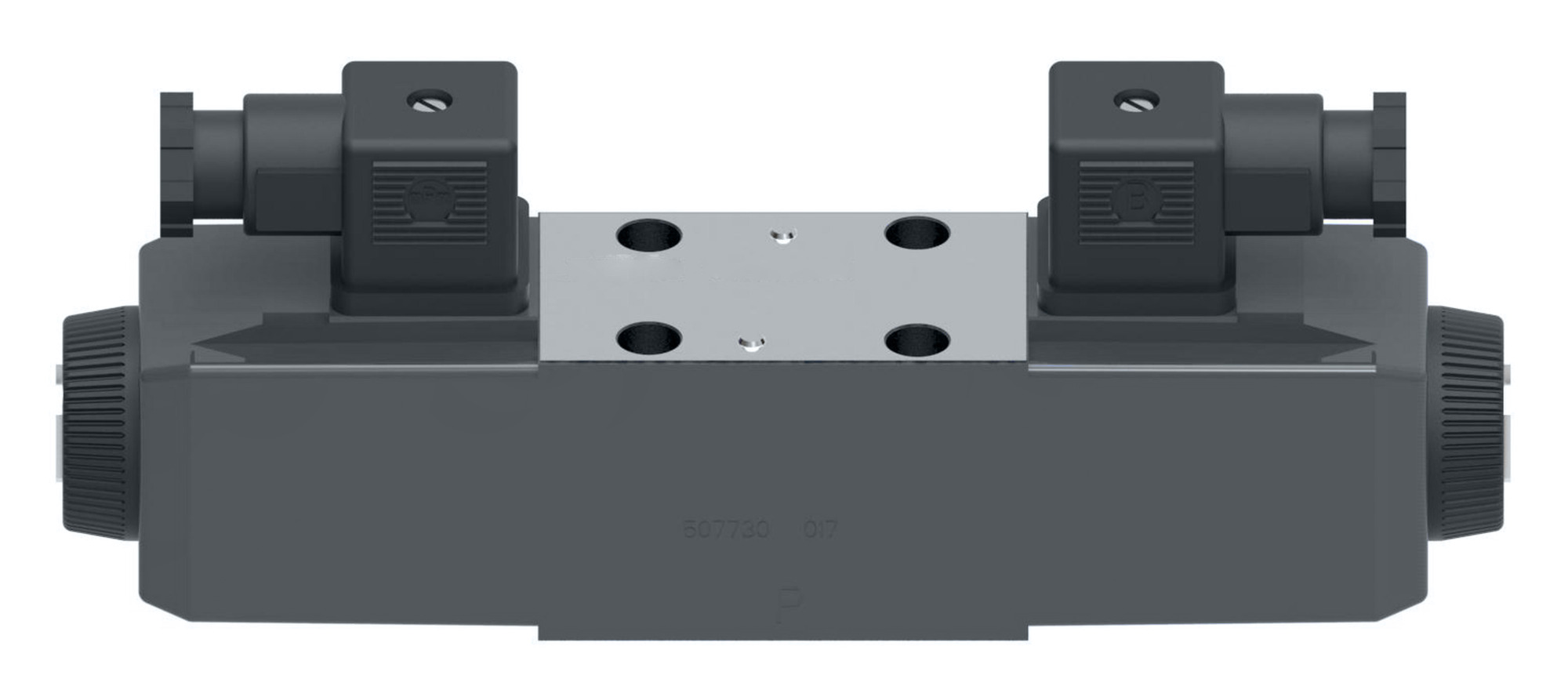

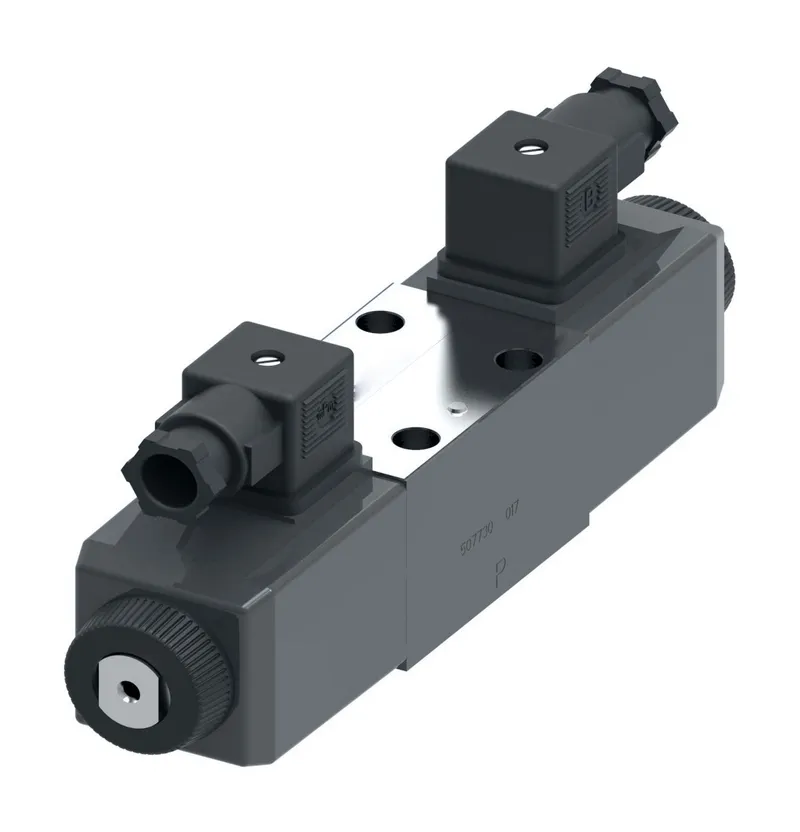

Danfoss 02-323129

DG4V 3 6C H M U1 EK6 60EN38, DG4V36CHMU1EK660EN38

MPN: 02-323129
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-323129?

Danfoss DG4V 3 6C H M U1 EK6 60EN38, DG4V36CHMU1EK660EN38, manufacturer part number 02-323129. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	115 VAC 60Hz
Design Series	60 Series
Electrical Connection	ISO4400 with fitted plugs
Energ Time	15-23 ms
Flow rate upto GPM	21.0
Flow rate upto LPM	80.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Waterproof
Model Code 1	DG4V36CHMU1EK660EN38
Performance	High performance
Power Consumption	58 VA
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.420
Product length in	7.870
Product length mm	199.898
Product width in	1.880
Product width mm	47.752
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	Low leakage
Spool Position Monitor	No
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-323129: frequently asked questions

When can 02-323129 be shipped?

02-323129 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-323129 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-323129 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-323129, subject to availability and destination.
