Home / Danfoss (Drives) / V20F 1S11S 38C5J 22, V20F 1S11S 38C5J 22
Available on request

V20F 1S11S 38C5J 22, V20F 1S11S 38C5J 22

MPN: 02-318881-3 · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryIndustrial vane pumps
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02-318881-3 be shipped?

02-318881-3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-318881-3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-318881-3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-318881-3, subject to availability and destination.

Danfoss V20F 1S11S 38C5J 22, V20F 1S11S 38C5J 22, manufacturer part number 02-318881-3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

SEALS TYPESTANDARD SEAL
PUMP TYPEVANE PUMP
SeriesSERIES DESIGNATION
Cover typeFLOW CONTROL VALVE COVER
Mounting type2 BOLT FLANGE SAE-A SIZE
INLET PORT TYPE1.625-12UN-2B THREAD
RING CAPACITY11 GPM
OUTLET PORT TYPECOVER D,COVER STANDARD - 1.062-12 UN-2B THREAD. F COVER - PRESSURE PORT -.750-16 UN-2B THREAD , TANK PORT-1.0625-12 UN-2B THREAD
SHAFT SEAL AND BEARINGSINGLE LIP SEAL&SEALED BEARING
Shaft type11TEETH 16/32 FLAT ROOT SIDE FIT
BrandVickers by Danfoss
IPM FRAME SIZEV20 Single Pump
Model Code 1V20F 1S11S 38C5J 22
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide

More Danfoss (Drives) parts

V10 1B5B 41B 20L 090, V10 1B5B 41B 20L 090Available on requestV10 1B5B 41B 20L 090, V10 1B5B 41B 20L 090
MPN: 02-318820-BL · Danfoss (Drives)
Price on request
Request a quote
V10 1B5B 41D 20 090, V10 1B5B 41D 20 090Available on requestV10 1B5B 41D 20 090, V10 1B5B 41D 20 090
MPN: 02-318820-D · Danfoss (Drives)
Price on request
Request a quote
V10 1B5B 41D 20L 090, V10 1B5B 41D 20L 090Available on requestV10 1B5B 41D 20L 090, V10 1B5B 41D 20L 090
MPN: 02-318820-DL · Danfoss (Drives)
Price on request
Request a quote
F3-3525VQSV10S25A14S4-S1 11-DDC-20L-329, F3-3525VQSV10S25A14S4-S1 11-DDC-20L-329Available on requestF3-3525VQSV10S25A14S4-S1 11-DDC-20L-329, F3-3525VQSV10S25A14S4-S1 11-DDC-20L-329
MPN: 02-318867 · Danfoss (Drives)
Price on request
Request a quote

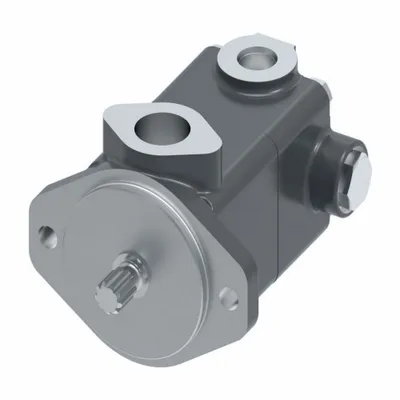

V20F 1S11S 38C5J 22L, V20F 1S11S 38C5J 22LAvailable on requestV20F 1S11S 38C5J 22L, V20F 1S11S 38C5J 22L
