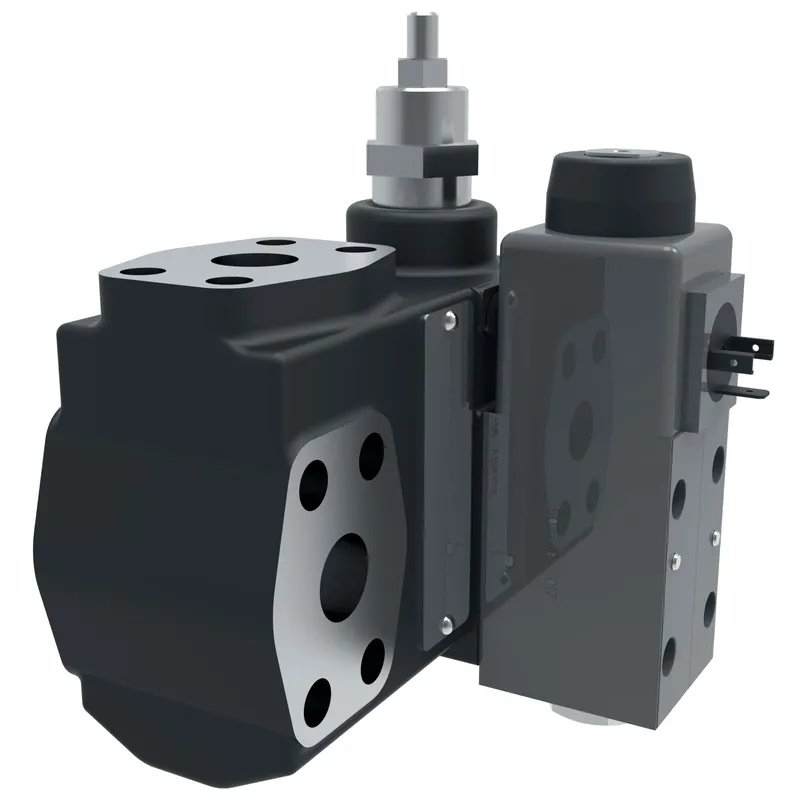

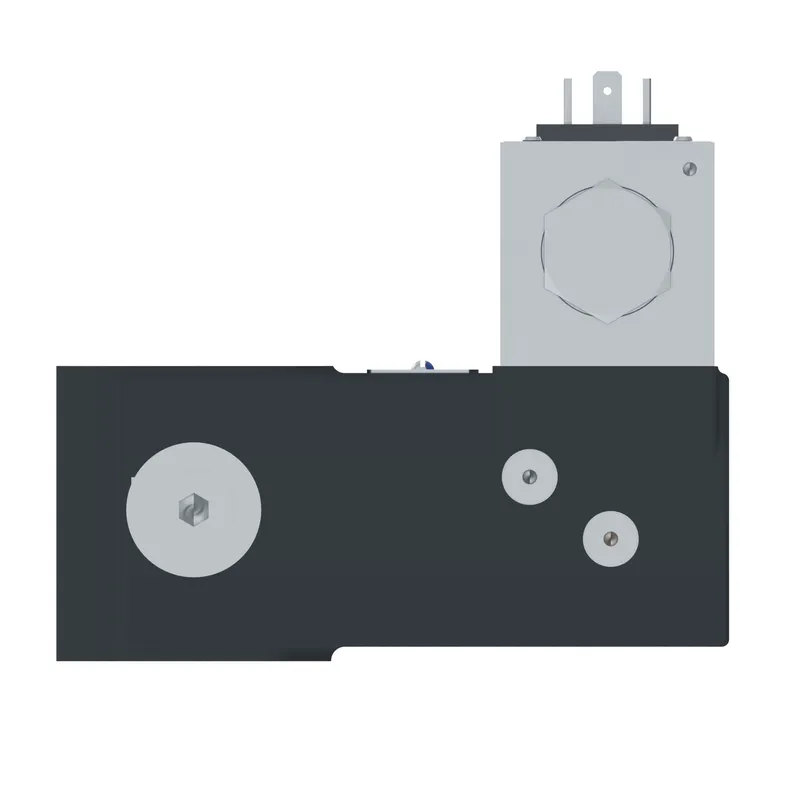

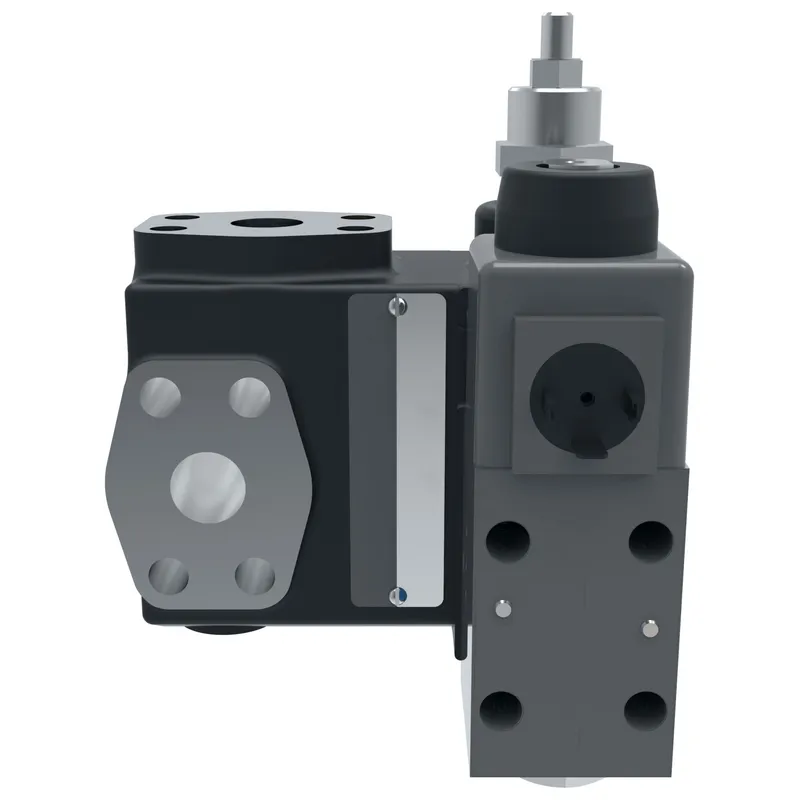

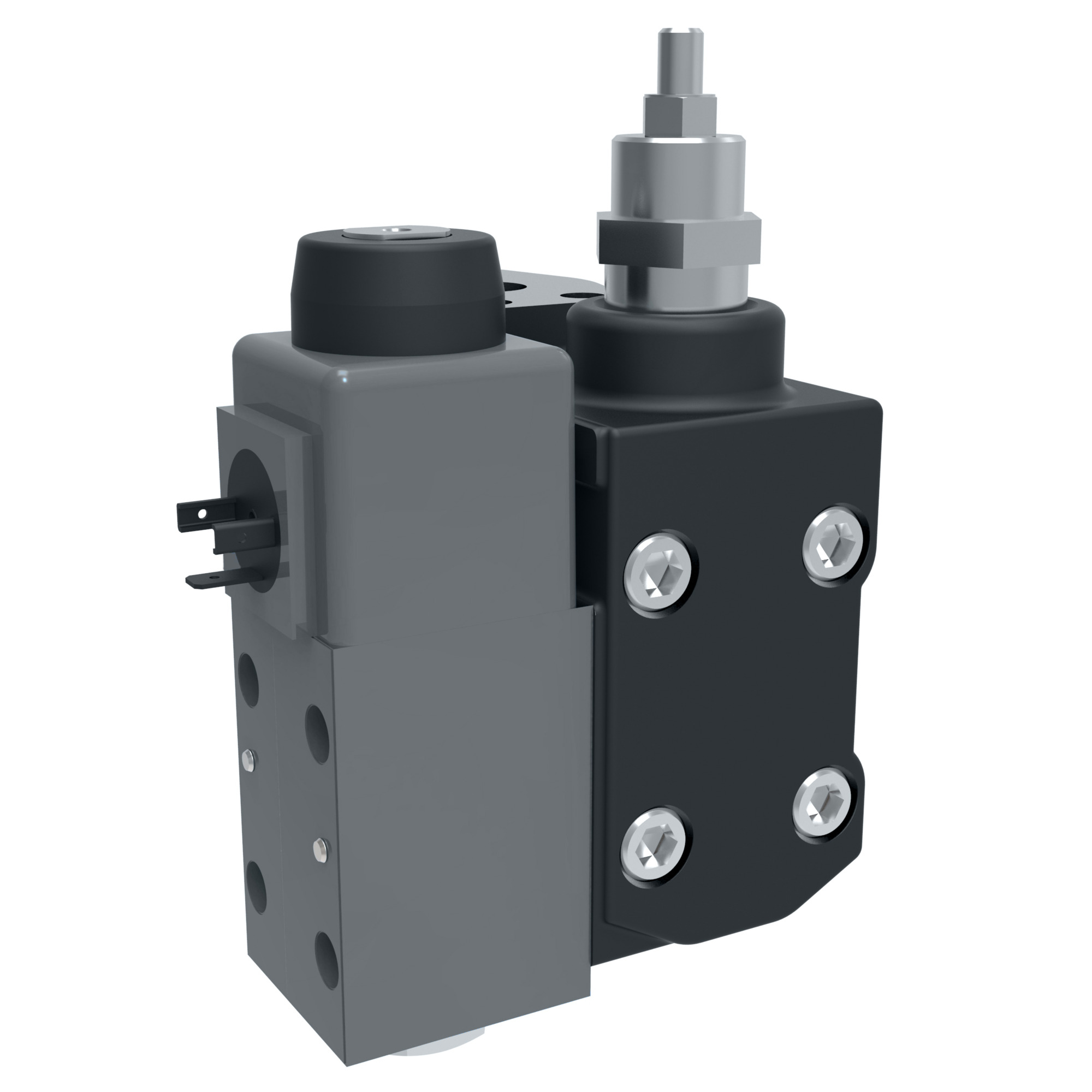

Danfoss 02-317756

CPF2S-08-G-W-B-3S-M-U-H5 -20, CPF2S08GWB3SMUH520

MPN: 02-317756
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-317756?

Danfoss CPF2S-08-G-W-B-3S-M-U-H5 -20, CPF2S08GWB3SMUH520, manufacturer part number 02-317756. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Adjustment range	10-275 bar (145-4000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	24 VDC
Design Series	20 Series
Drain	Internal
Electrical connection	ISO4400 (Din 43650) Connector
Flow rate lpm	300.0
Flow rate USGPM	80.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	G 1/4 BSP
Interface	SAE 1 in.
Leakage	Standard
Manual override	Plain
Maximum pressure BAR	275
Maximum pressure PSI	4000
Model Code	CPF2S08GWB3SMUH520
Performance	Standard
Power Consumption	30 watt
Product height in	7.090
Product height mm	180.086
Product length in	5.680
Product length mm	144.272
Product width in	6.070
Product width mm	154.178
Seal material	Nitrile
Special feature	None
Stage	Two stage
Tank pressure bar	100
Tank pressure PSI	1450
Valve Mount Type	Flange mounting
Valve type	Relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
