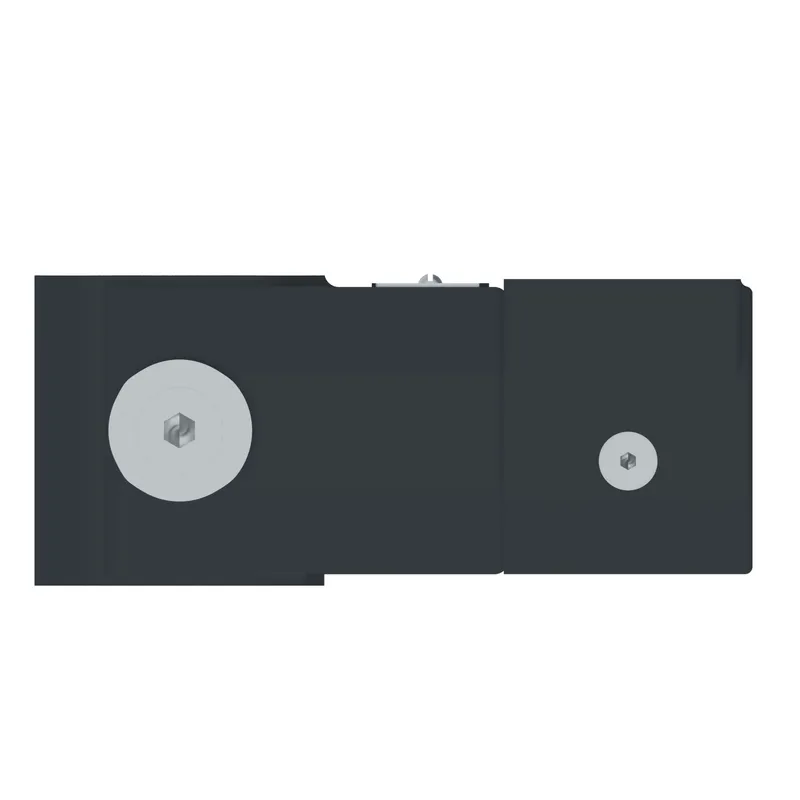

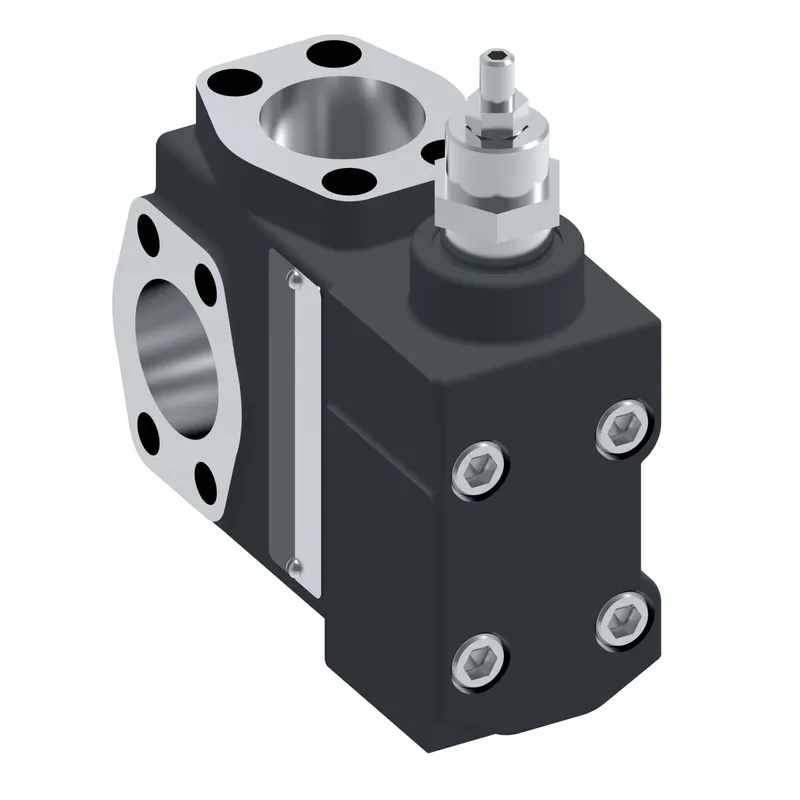

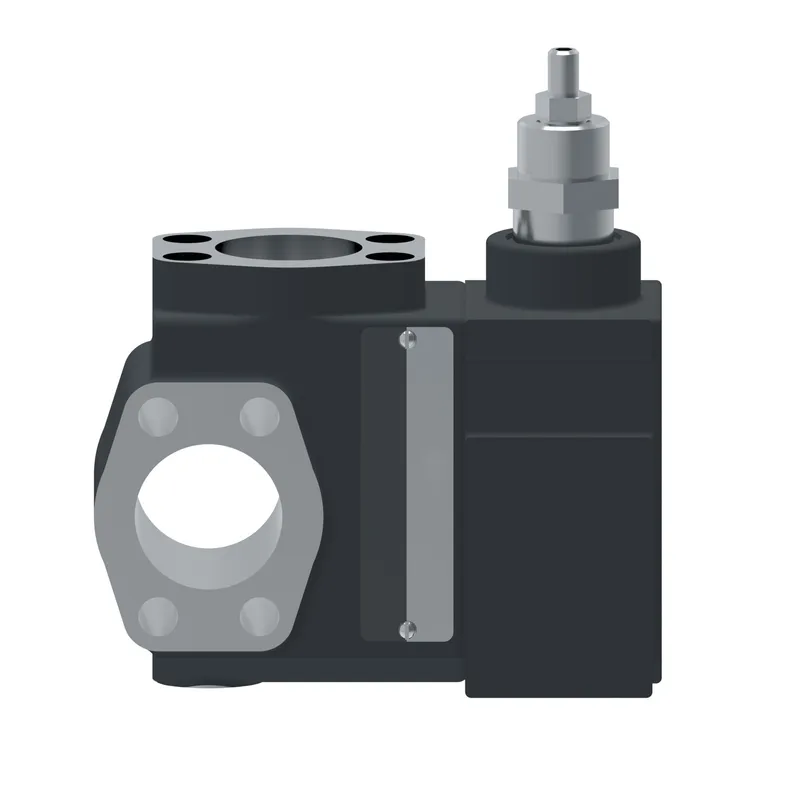

What is the Danfoss 02-317557?

Danfoss CPF1S-12-G-W-20, CPF1S12GW20, manufacturer part number 02-317557. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot actuated
Adjustment range	10-275 bar (145-4000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	20 Series
Drain	Internal
Electrical connection	None
Flow rate lpm	600.0
Flow rate USGPM	160.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	G 1/4 BSP thd
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	275
Maximum pressure PSI	4000
Model Code 1	CPF1S12GW20
Performance	Standard
Product height in	7.090
Product height mm	180.086
Product length in	7.490
Product length mm	190.246
Product width in	3.150
Product width mm	80.01
Seal material	Nitrile
Size	SAE 1 1/2"
Special feature	None
Stage	Two stage
Tank pressure bar	210
Tank pressure PSI	3000
Valve Mount Type	Flange mounted
Valve type	Relief, single pressure
Working temperature max C	80
Working temperature max F	176
Working temperature min C	-20
Working temperature min F	-4
