Danfoss 02-317001

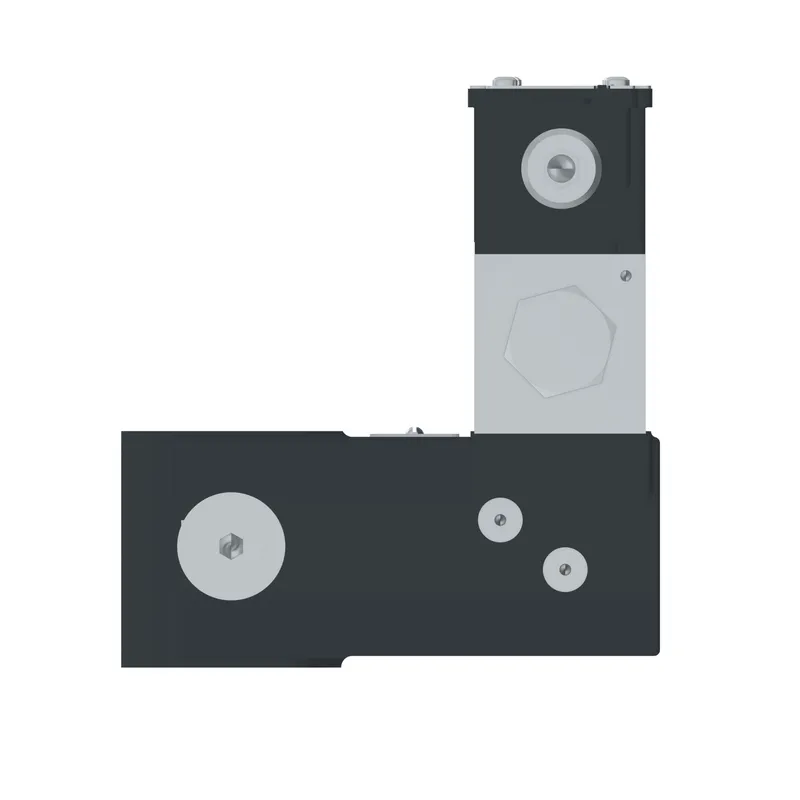

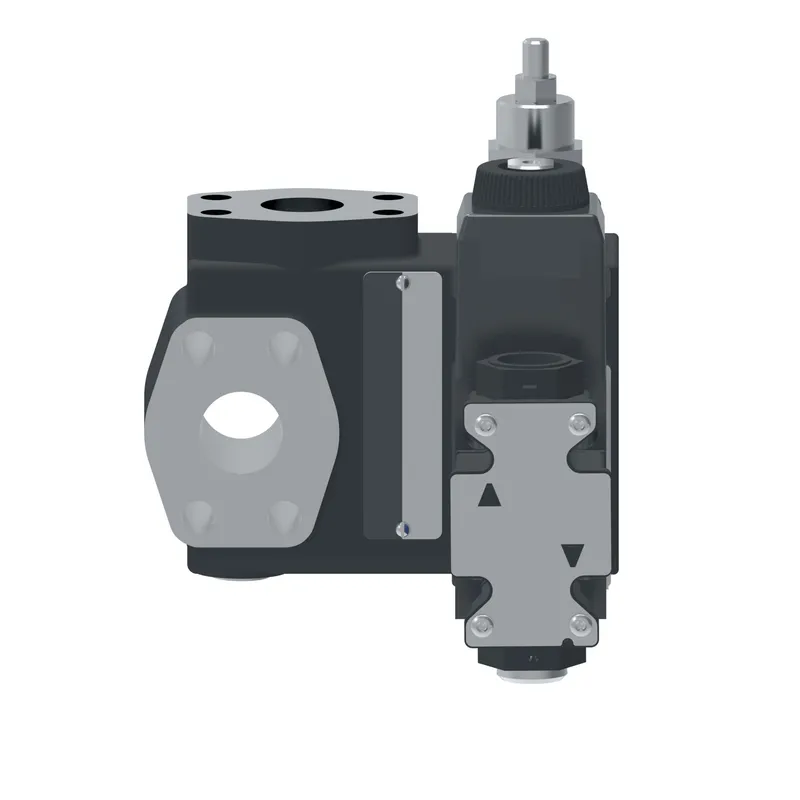

CPF2S-10-F-W-3S-M-FTWL-B 5-20, CPF2S10FW3SMFTWLB520

MPN: 02-317001
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-317001?

Danfoss CPF2S-10-F-W-3S-M-FTWL-B 5-20, CPF2S10FW3SMFTWLB520, manufacturer part number 02-317001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Adjustment range	10-207 bar (145-3000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	110 VAC 50Hz/120 VAC 60Hz
Design Series	20 Series
Drain	Internal
Electrical connection	Fly.lead term. block 1/2" NPT
Flow rate lpm	600.0
Flow rate USGPM	160.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	G 1/4 BSP thd
Hi-vent spring	No
Indicator Light	Yes
Manual override	Plain
Maximum pressure BAR	275
Maximum pressure PSI	4000
Model Code 1	CPF2S10FW3SMFTWLB520
Performance	Standard
Product height in	6.580
Product height mm	167.132
Product length in	7.420
Product length mm	188.468
Product width in	6.570
Product width mm	166.878
Seal material	Nitrile
Size	SAE 1 1/4"
Special feature	None
Stage	Two stage
Tank pressure bar	210
Tank pressure PSI	3000
Valve Mount Type	Flange mounted
Valve type	Relief single pressure with vent
Working temperature max C	80
Working temperature max F	176
Working temperature min C	-20
Working temperature min F	-4
