Home / Danfoss (Drives) / Industrial vane pumps / Danfoss 02-315503-DR

Danfoss (Drives)

Danfoss 02-315503-DR

Industrial vane pump

MPN: 02-315503-DR
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-315503-DR?

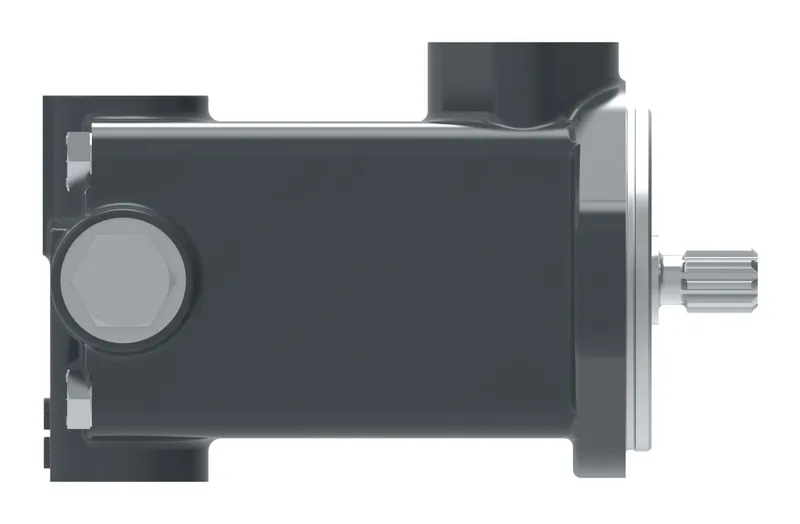

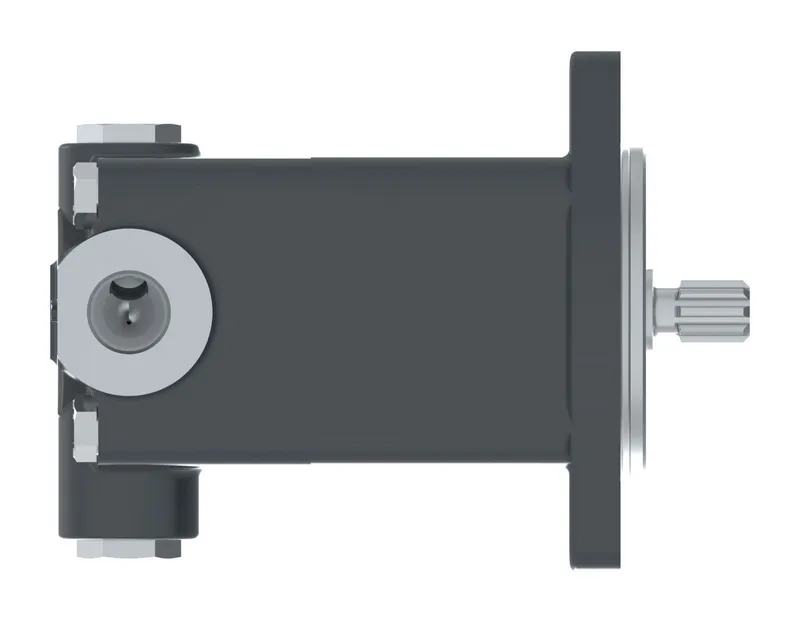

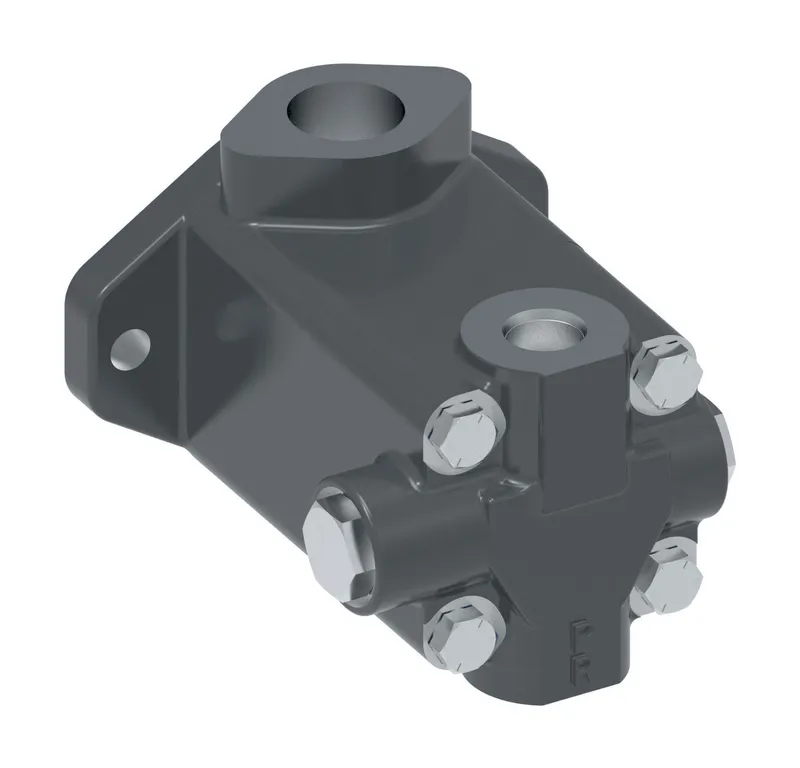

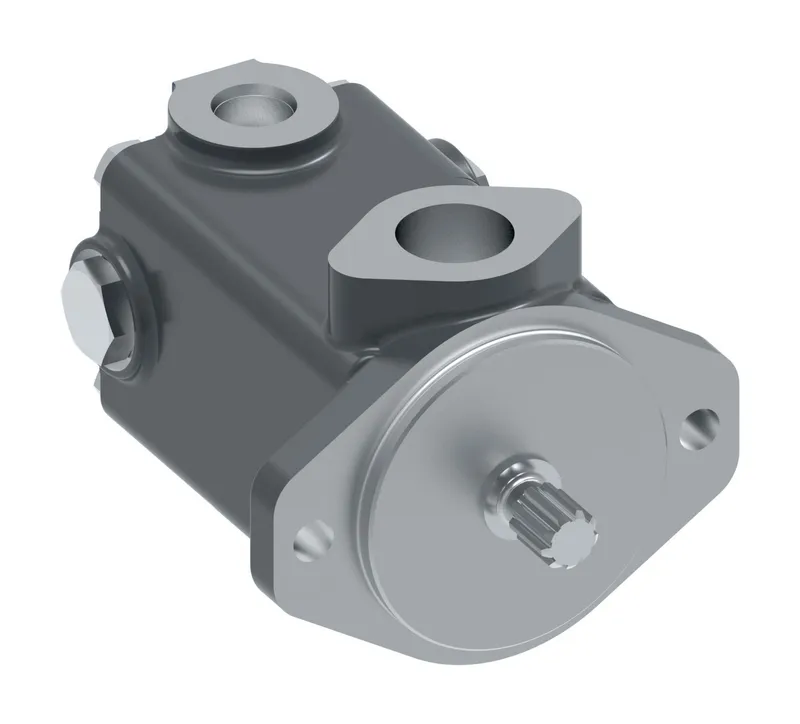

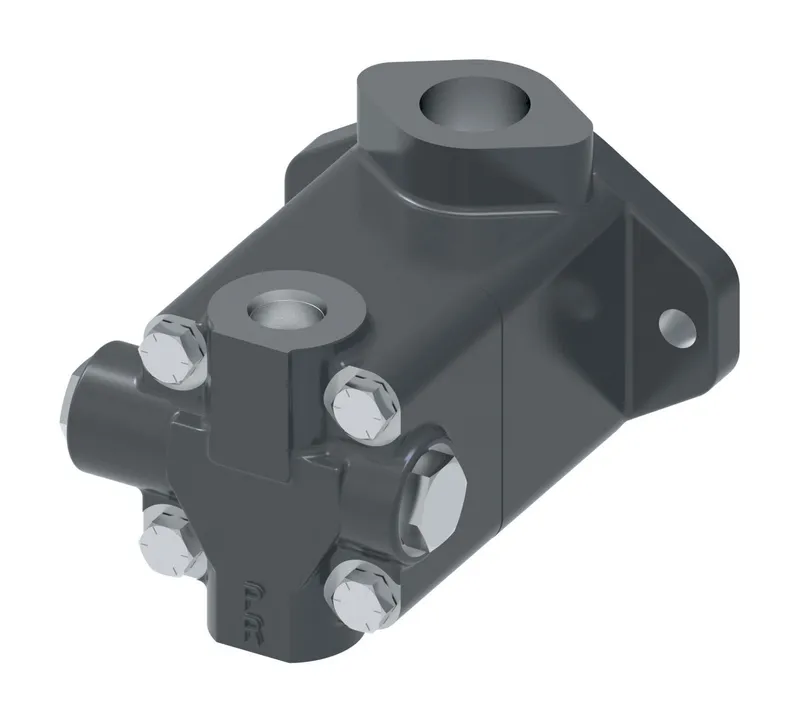

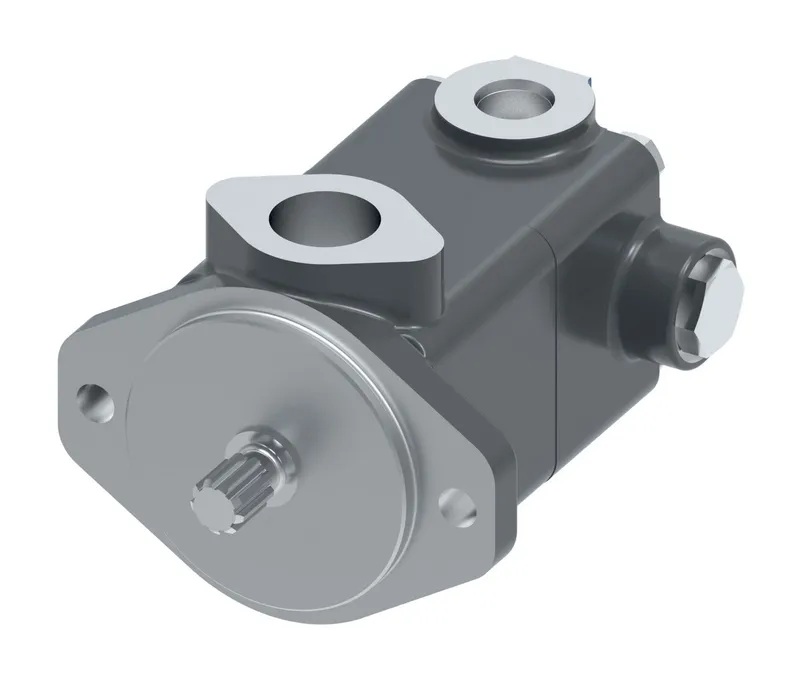

Danfoss V10-1B5B-41D-20R, V10-1B5B-41D-20R, manufacturer part number 02-315503-DR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PUMP TYPE	VANE PUMP
Series	SERIES DESIGNATION
Mounting type	2 BOLT FLANGE SAE-A SIZE
INLET PORT TYPE	BSP THREAD PER DS1106
RING CAPACITY	5 GPM
OUTLET PORT TYPE	BSP THREAD PER DS1104
Shaft type	9 TEETH 16/32, MAJOR DIA-0.608, EXTENSION-1.25
OUTLET COVER PORT ORIENTATION	90° CW FROM INLET PORT
DESIGN CODE	DESIGN CODE FOR NF,S,F COVER
Shaft rotation	RH CW ROTATION VIEWED FROM SHAFT END
Brand	Vickers by Danfoss
IPM FRAME SIZE	V10 Single Pump
Model Code 1	V10-1B5B-41D-20R

02-315503-DR: frequently asked questions

When can 02-315503-DR be shipped?

02-315503-DR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-315503-DR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-315503-DR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-315503-DR, subject to availability and destination.
