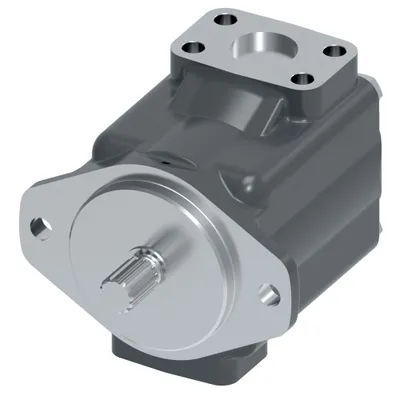

Danfoss 02-314949

F3-3525VQHV10S35A21S4-S1 11DAA-30L-291, F3-3525VQHV10S35A21S4-S1 11DAA-30L-291

MPN: 02-314949
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-314949?

Danfoss F3-3525VQHV10S35A21S4-S1 11DAA-30L-291, F3-3525VQHV10S35A21S4-S1 11DAA-30L-291, manufacturer part number 02-314949. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Shaft type	111 - 14T 12/24 MD : 1.229
Brand	Vickers by Danfoss
CAPACITY REAR VQ	21 GPM
CAPACITY V10	4 GPM
Design number	DESIGN NUMBER - 30
IPM FRAME SIZE	3525VQH Double Pump
Model Code 1	F3-3525VQHV10S35A21S4-S1 11DAA
Model Code 2	-30L-291
MODEL SUFFIX	WITH S277 FEATURES DUCTILE IRON BODY &INLET HSG.
ORIENTATION OF OUT 1 FRM COVER	90° CW FROM INLET
ORIENTATION OF OUT 2 FRM COVER	135° CCW FROM INLET
ORIENTATION OF OUT 3 FRM COVER	OPPOSITE TO INLET
PORT CONNECTION IN AND OUT 1,2	ALL 4 BOLT FLANGE
PORT CONNECTION V10 OUTLET	STANDARD COVER PRESSURE PORT: 0.750-16 STR. THD.
PRESSURE RATING	HIGH PRESSURE
PUMP SERIES 1	PUMP SERIES WITH FIRST AND SECOND CARTRIDGE
PUMP SERIES 2	PUMP SERIES WITH THIRD CARTRIDGE
ROTATION VIEWED FROM SHAFT	COUNTER-CLOCKWISE ROTATION
Seal type	ALL VITON SEALS
SHAFT SEAL	DOUBLE SHAFT SEAL
V10 COVER	STANDARD COVER

02-314949: frequently asked questions

When can 02-314949 be shipped?

02-314949 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-314949 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-314949 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-314949, subject to availability and destination.
