Danfoss 02-312121

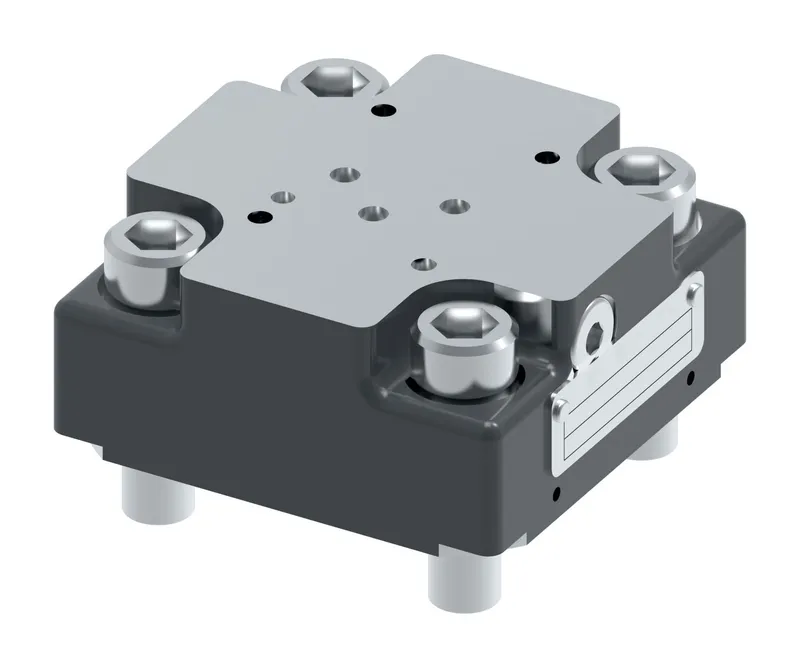

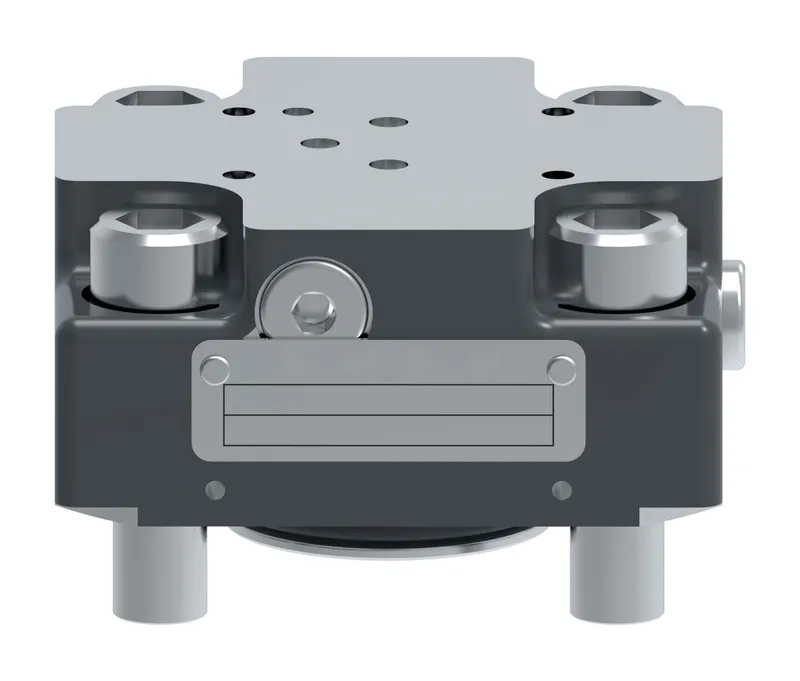

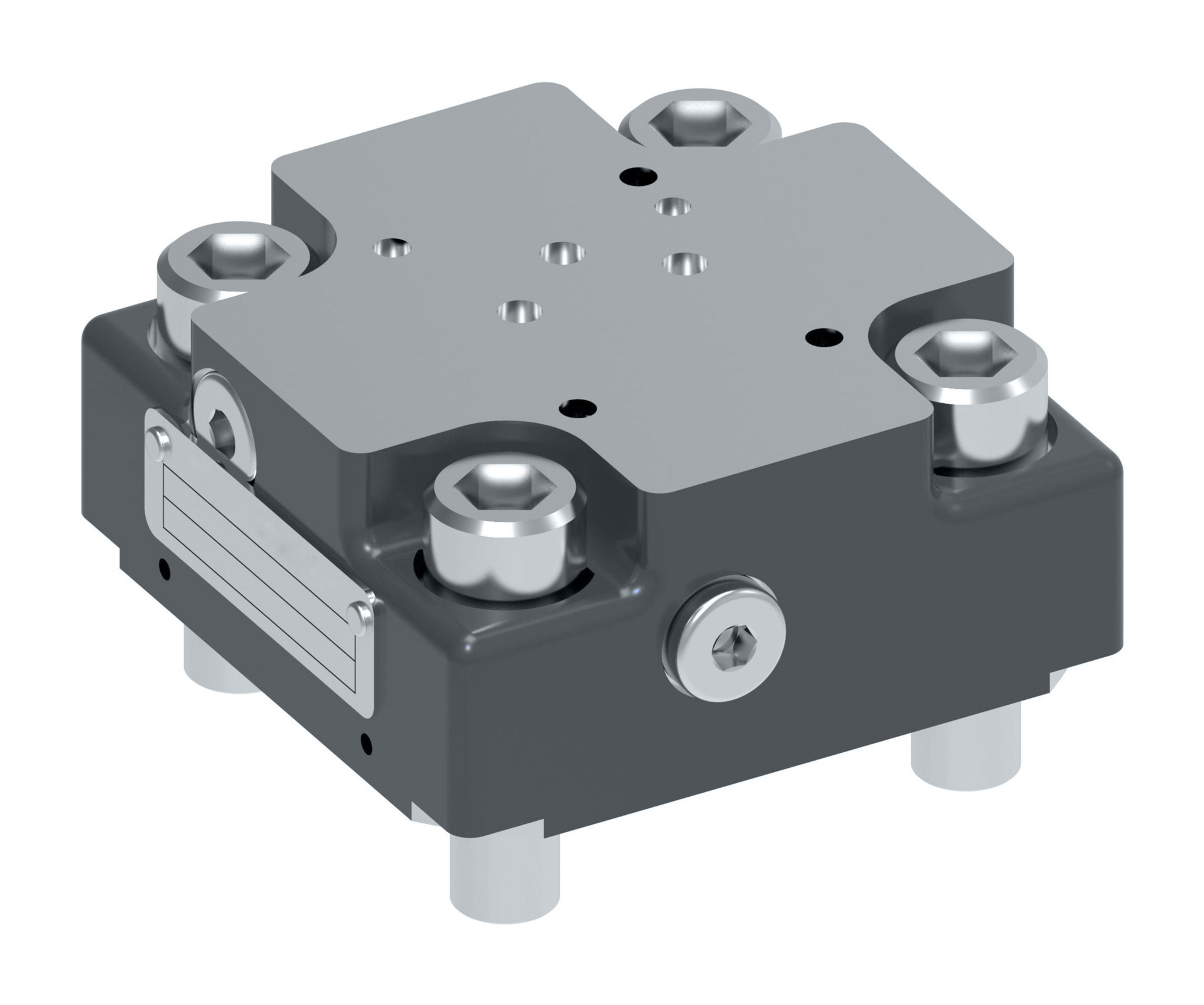

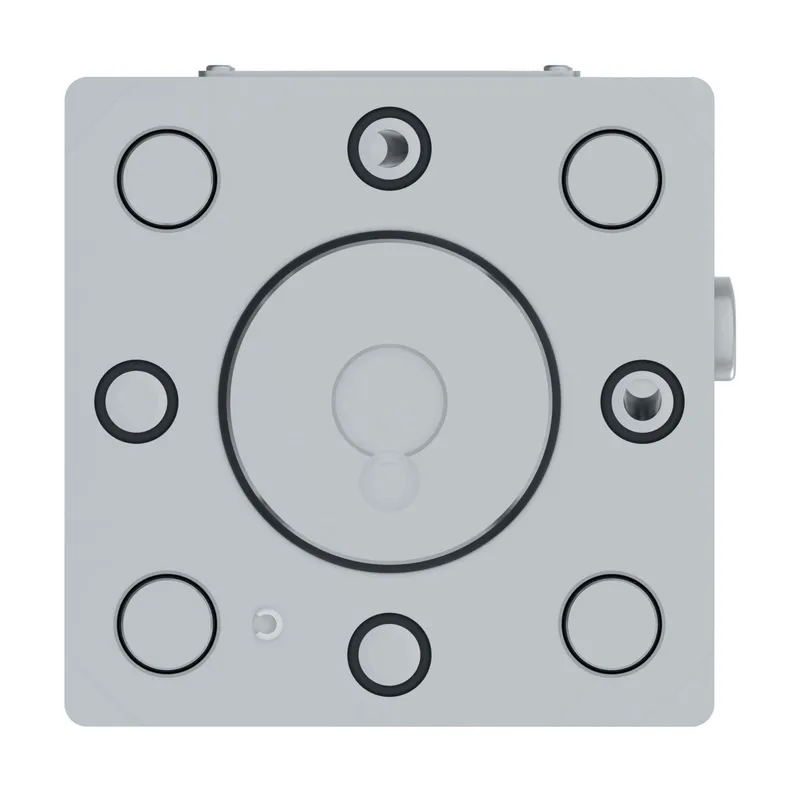

CVCS-40-HFV3-W-B29-10, CVCS40HFV3WB2910

MPN: 02-312121
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-312121?

Danfoss CVCS-40-HFV3-W-B29-10, CVCS40HFV3WB2910, manufacturer part number 02-312121. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Cover type	Valvistor prop throttle
Design Series	10 Design
Flow rate LPM	1700
Flow rate USGPM	450.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	BSPF
Insert ratio	1:1.5
Insert type	Directional
Interface	Yes
Leakage	Standard
Model Code 1	CVCS40HFV3WB2910
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.070
Product height mm	77.978
Product length in	5.510
Product length mm	139.954
Product width in	5.100
Product width mm	129.54
Seal material	Buna-N
Size	NG 40
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	Yes
Valvistor type	Proportional Throttle Valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
