Danfoss 02-311957

CVCS 50 HFV3 B2 10, CVCS50HFV3B210

MPN: 02-311957
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-311957?

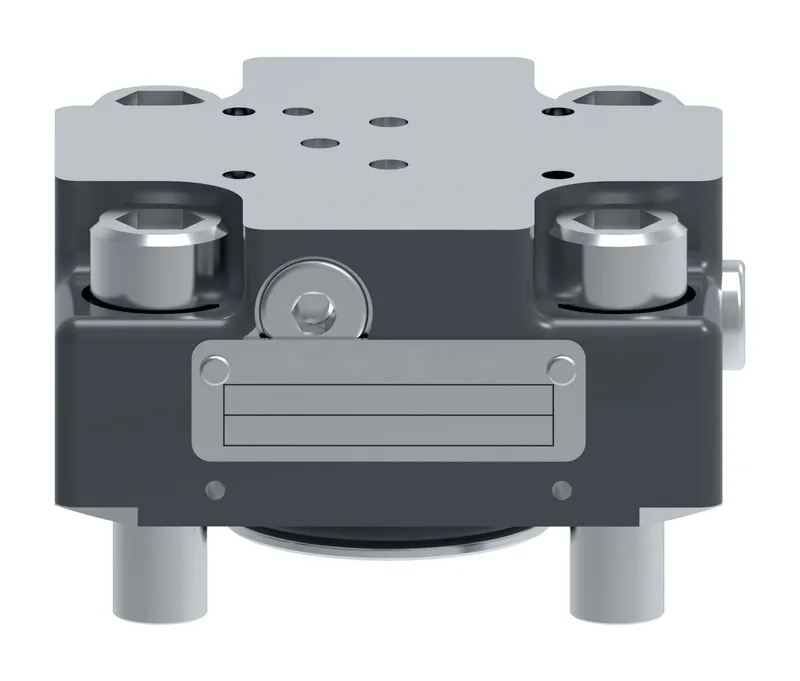

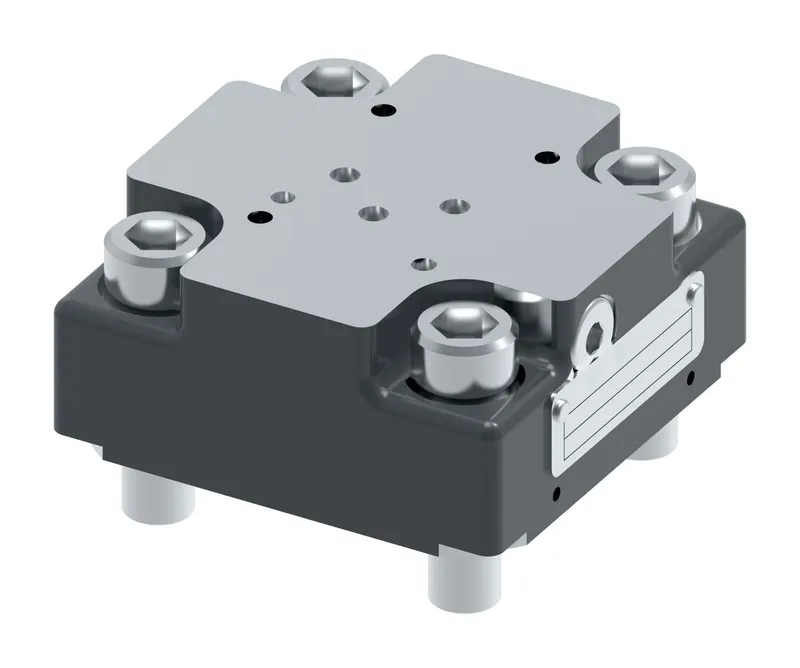

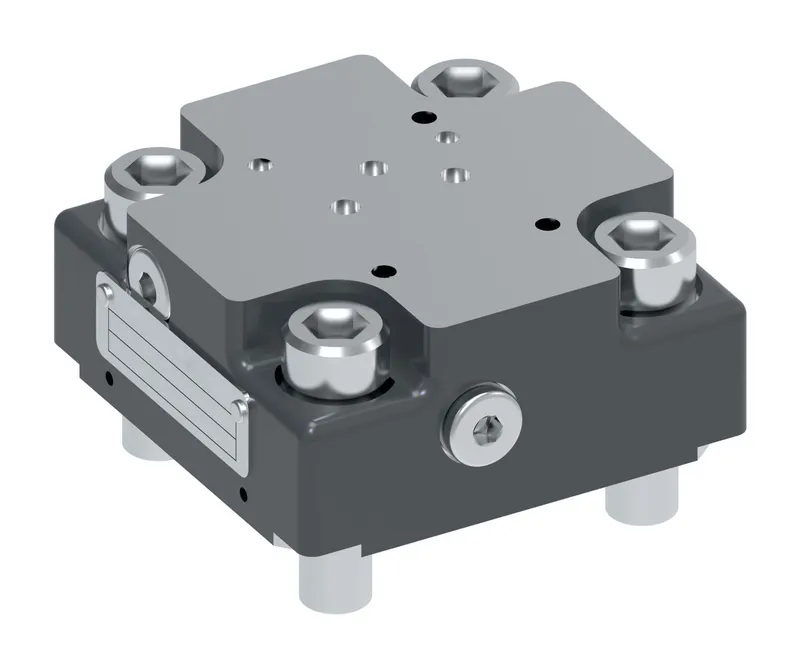

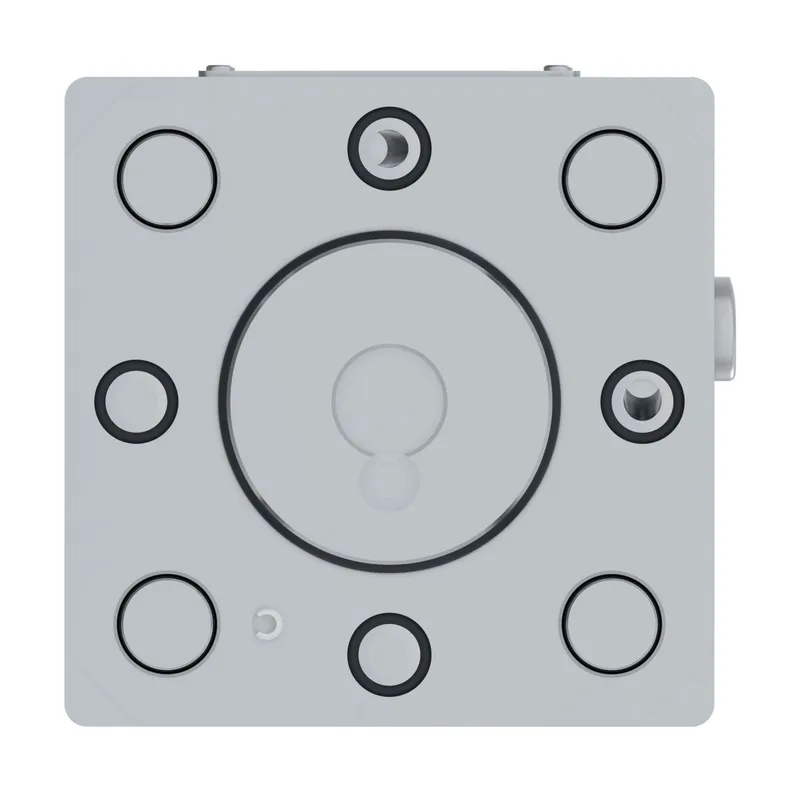

Danfoss CVCS 50 HFV3 B2 10, CVCS50HFV3B210, manufacturer part number 02-311957. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Cover type	Valvistor prop throttle
Design Series	10 Design
Flow rate LPM	2350
Flow rate USGPM	620.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	BSPF
Insert ratio	1:1.5
Insert type	Directional
Interface	Yes
Leakage	Standard
Model Code 1	CVCS50HFV3B210
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.590
Product height mm	91.186
Product length in	5.780
Product length mm	146.812
Product width in	5.700
Product width mm	144.78
Seal material	Buna-N
Size	NG 50
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	Yes
Valvistor type	Proportional Throttle Valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-311957: frequently asked questions

When can 02-311957 be shipped?

02-311957 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-311957 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-311957 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-311957, subject to availability and destination.
