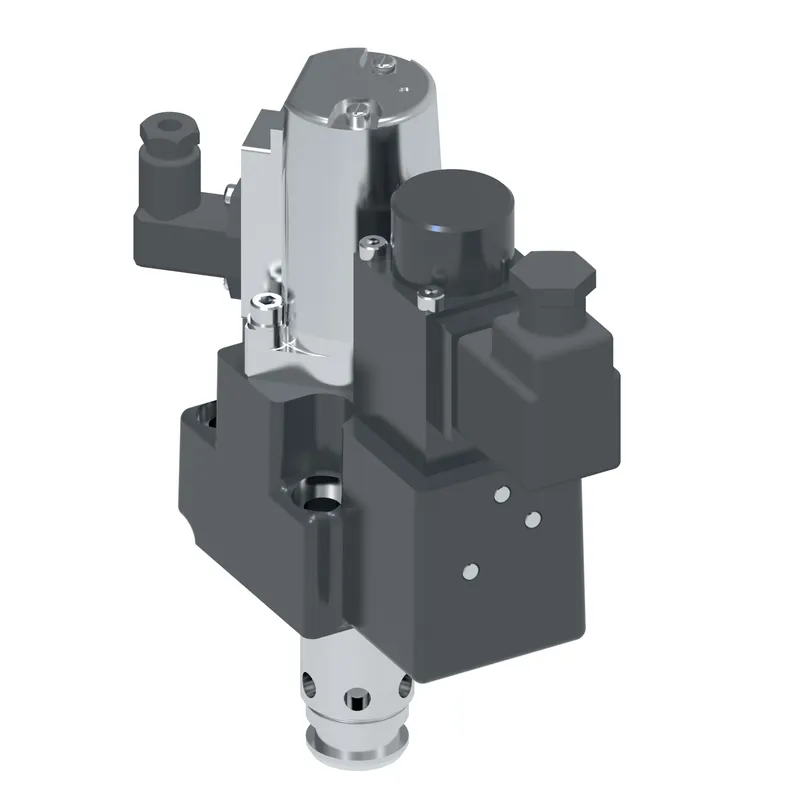

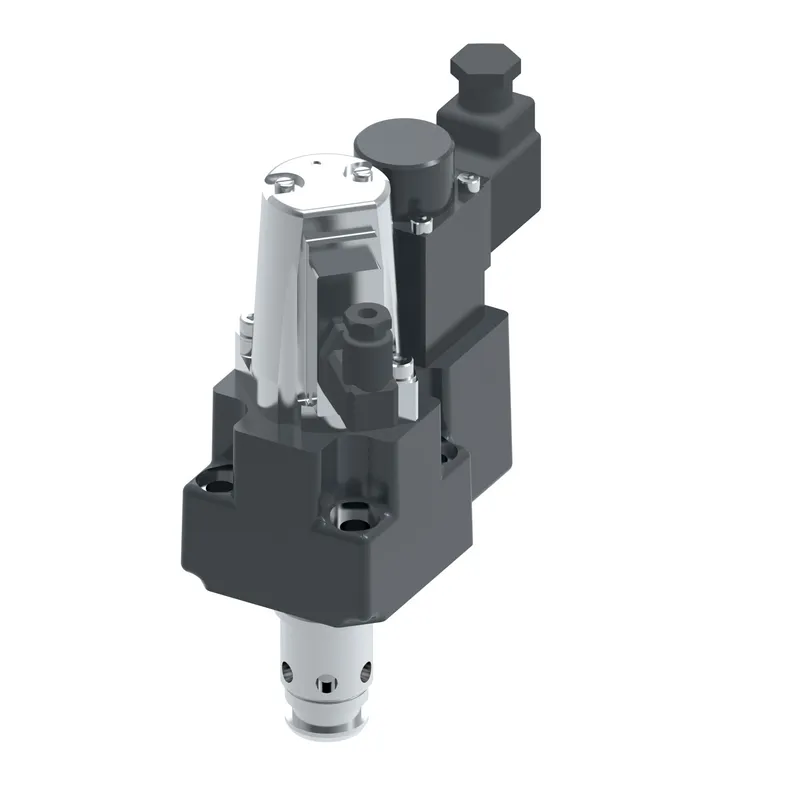

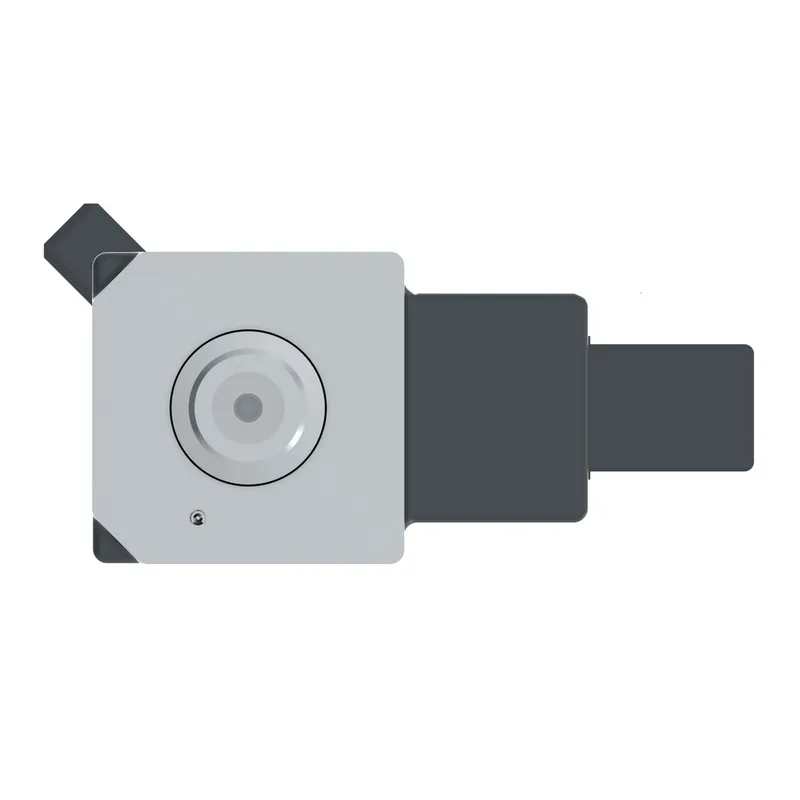

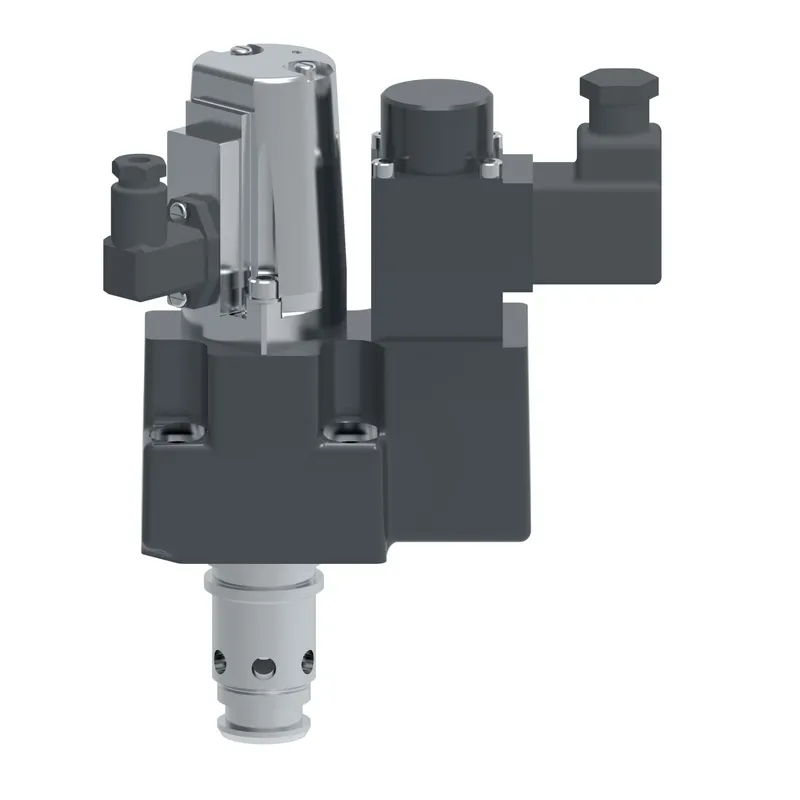

Danfoss 02-311865
CVU 25 EFP1 B29 45 31 EN19, CVU25EFP1B294531EN19
- MPN
- 02-311865
- Category
- Industrial valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-311865?
Danfoss CVU 25 EFP1 B29 45 31 EN19, CVU25EFP1B294531EN19, manufacturer part number 02-311865. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment | No |
| Brand | Vickers by Danfoss |
| Cover type | Electrohyd proportional throttle valve |
| Cracking pressure BAR | 2.50 |
| Cracking pressure PSI | 36.0 |
| Design Series | 31 Design |
| Flow rate LPM | 450 |
| Flow rate USGPM | 119.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge port thread | BSPF |
| Insert ratio | 1:1.4 |
| Interface | No |
| Leakage | Standard |
| Model Code 1 | CVU25EFP1B294531EN19 |
| Pilot port orientation | ISO |
| Pressure rating BAR | 315 |
| Pressure rating PSI | 4500 |
| Product height in | 7.850 |
| Product height mm | 199.390 |
| Product length in | 5.850 |
| Product length mm | 148.590 |
| Product width in | 3.350 |
| Product width mm | 85.09 |
| Seal material | Buna-N |
| Size | NG 25 |
| Special feature | Voltage feedback for CM1 |
| Spool position sensor | No |
| Valve type | Cartridge valve unit |
| Valvistor | No |
| Working temp max C | 70 |
| Working temp max F | 158 |
| Working temp min C | -20 |
| Working temp min F | -4 |
02-311865: frequently asked questions
When can 02-311865 be shipped?
02-311865 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-311865 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-311865 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-311865, subject to availability and destination.
